INSTALLATION INSTRUCTIONS C-VS-1508-INUT

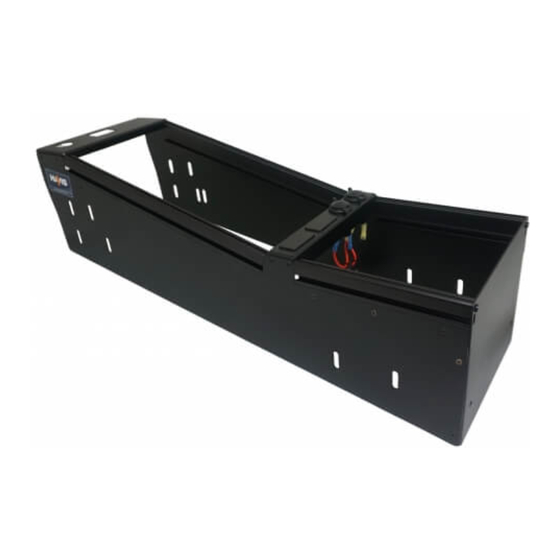

23" Console for 2020 Ford Interceptor Utility
TOOLS REQUIRED:
Phillips Screw Driver
Metric Socket Set
PARTS and MOUNTING HARDWARE:
QTY
DESCRIPTION
1
Rear floor mounting bracket
1
Driver side front mounting bracket
1
Passenger side front mounting bracket
1
Lower front cross support
C-HK-351
17
1/4" Serrated nut
17
1/4" x 3/4" Carriage bolts
3
10-32 Keps nut
3
10-32 x 3/4" Machine screws
4
#8-18 x 1/4" Machine screws
Read all instructions before installing any Havis, Inc. products.
Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!
Standard Socket Set
Wire Cutters
PART#
CM009301-1
CM010466-DS
CM010466-PS
CM010464
GSM30023
GSM32000
GSM30028
GSM33119
GSM33178
Always
!
Use hardware provided with install kit
T-20 Torx Bit
Wire Crimping Tool
C-VS-1508-INUT_INST_3-20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis C-VS-1508-INUT
Summary of Contents for Havis C-VS-1508-INUT
- Page 1 GSM33119 #8-18 x 1/4" Machine screws GSM33178 Always Read all instructions before installing any Havis, Inc. products. Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit C-VS-1508-INUT_INST_3-20...
- Page 2 C-VS-1508-INUT Assembly CM010464 CM010466-PS CM010466-DS CM009301-1 C-VS-1508-INUT_INST_3-20...
- Page 3 Remove OEM tunnel plate by removing rear nuts. View of Interceptor Utility before install Front nuts only have to be loosened. The OEM track is slotted at the front. (10mm socket) Remove lower dash trim by carefully pulling it Remove fasteners on sides of lower trim. towards the rear of the vehicle.
- Page 4 Loosen OEM nuts from front ductwork. (10mm socket) Attach front lower cross support to mount Slide front mounting brackets under ductwork from the sides brackets with carriage bolts and serrated nuts. onto OEM studs. Note: Make sure brackets are below plastic vent and sitting on top of metal floor.
