1. The C-DMM-2000 series Dash Monitor Mount brackets are specifically designed to work with
2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light
weight tablet docking station applications. Acceptable positioning must be determined by end user.
3. The C-DMM-2005 will work with all Havis, Inc. consoles made for the Transit van .
4. The C-DMM-2005
TOOLS REQUIRED: (some tools not needed for all vehicle installations)
• Socket set ‐ metric & standard
• Phillips screwdriver
MOUNT BRACKET PARTS and HARDWARE:
Installation parts with * come loose in hardware kit bag. Other parts are preassembled
QTY: DESCRIPTION:
1
Main dash mount bracket
1
Main dash mount base
1
Pivot / display mount bracket
1
Tilt swivel hinge
6
M5‐18mm Thread forming screw
1
PVC spacer washer
1
Tilt swivel adaptor
2
1/4" X 3/4" Carriage bolts
2
1/4" Nylock nut
2
1/4" Flat washer
2
Nylon 1/16" spacer washer
1
M8 hex nut SS
6
8‐32 x 5/8" Machine screw
1
M8 lock washer SS
1
8‐32 x .312" Phillips truss head machine screw GSM34077 *
1
Vinyl cap ( .50" high x .312 ‐ .375 id)
2
Pull through bumper (3mm head)
2
Push in bumper
1
Stop bracket
2
M5 x 10mm Thread forming screw
INSTALL INSTRUCTIONS
C-DMM-2005
Ford Transit Van
2015-2019
with Radio code 58U or 58T
Havis, Inc, model # TSD-101 Touch Screen Display.
Does NOT
work with the
• Drill & drill bits
• Trim removal tools • Pencil / Marker
(10mm head)

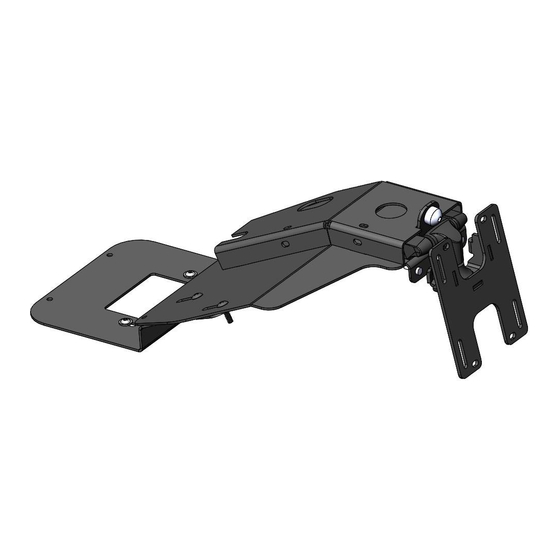

Dash Monitor Mount
Notes:
58V, 58W, 58X, 58Y, or 584
PART #:
MT‐0294‐SA
MT‐0295‐SM *
MT‐0320‐SA *
GSM22005
GSM33778 *
CM008582
CM008531
GSM32000
GSM30016
GSM31005
CM86600
GSM30113
GSM34117 *
GSM31217
GSM41127
GSM21109
GSM21108
MT‐0291‐SM
GSM33774
radio package.
• Tape measure
C‐DMM‐2005_INST_1‐17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Havis C-DMM-2005
Summary of Contents for Havis C-DMM-2005
- Page 1 2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light weight tablet docking station applications. Acceptable positioning must be determined by end user. 3. The C-DMM-2005 will work with all Havis, Inc. consoles made for the Transit van . Does NOT 58V, 58W, 58X, 58Y, or 584 4.
- Page 2 ALWAYS! • Read all instructions before installing any Havis, Inc products. • Use hardware provided with install kit C-DMM-2005 assembly GSM34117 * MT‐0294‐SA MT‐0291‐SM‐A with GSM21108 GSM22005 MT‐0320‐SA * GSM32000 CM86600 GSM33778 * CM008531 CM008582 GSM31217 GSM30113 GSM41127 GSM33778 * GSM31005 GSM30016 MT‐0295‐SM* C‐DMM‐2005_INST_1‐17...
- Page 3 Veiw of Transit dash before install Carefully remove top pocket by gently prying along seams Place the main dash mount base to the Running computer wires through the dash is bottom of the previously removed tray recommened at this time Mark four (4) holes in the tray using a pick Line up triangle cutouts in the bracket to the or an awl. seams in the tray. C‐DMM‐2005_INST_1‐17...
- Page 4 1 1/8” hole for wire pass through Highlight marks with a paint marker and Remove factory hardware from top of radio housing using. (7mm socket) then drill out each hole to 1/4”. Install the dash mount base using four (4) Re‐install upper tray assembly. M5‐18mm Thread forming screws supplied. Install main mounting bracket onto the tray Completed bracket install and secure to the lower mounting base using four (4) 8‐32 x 5/8” machines screws. C‐DMM‐2005_INST_1‐17...
- Page 5 Connect harnesses to the back of the TSD‐101 display. Attach pivot / display mount bracket to display with It is important to also double wire tie the harnesses to M4 x 0.7 x 10mm Phillips head machine screws, lock provide sturdy strain relief for the plugs. washers and flat washers. Display mount hardware is USB connection from remote Docking station must plug included with TSD‐101 hardware kit into USB plug closest to front of display. Attach bracket with display to the tilt swivel hinge Run wires through hole in tray or they can be run with M8 hex nut and lock washer. Tighten nut and neatly along the outside of the dash. attach vinyl cap on M8 bolt threads. Installation of C‐DMM‐2005 with TSD‐101 Refer to TSD‐101 owner’s manual for complete. power and computer connection details. C‐DMM‐2005_INST_1‐17...
