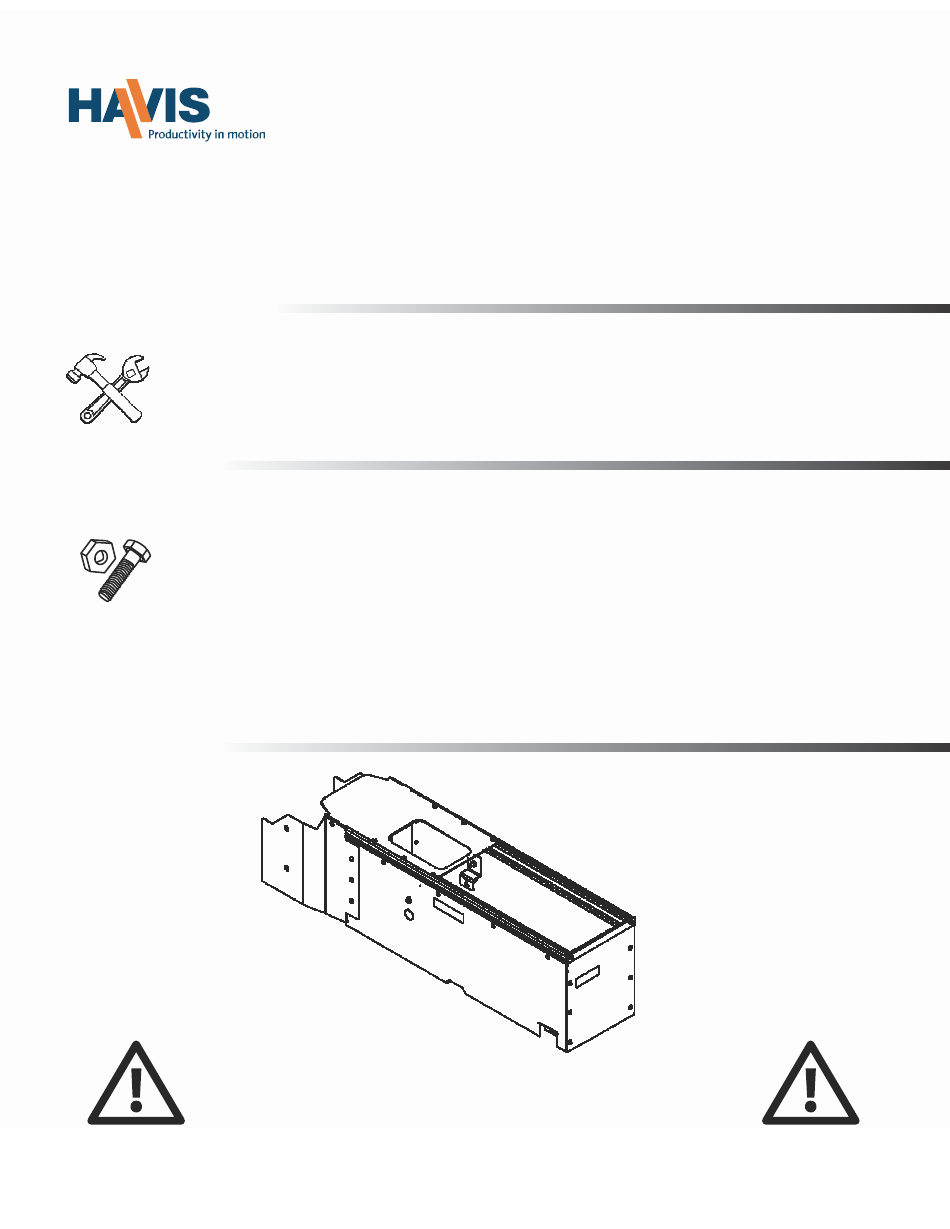

INSTALL INSTRUCTIONS C-VS-1800-ESC-1
TOOLS REQUIRED:
• Phillips Screw driver
• T-20 Torx Bit
• Ratchet Wrench
• 7mm, 10mm sockets
HARDWARE:
QTY:
18
2
1
2
1
1
1
1
1
• Read all instructions before installing any Havis, Inc. products.
• Use hardware provided with install kit
2008 - 2011 FORD
ESCAPE
VEHICLE SPECIFIC CONSOLE
DESCRIPTION:
8 x 1/4" Flat Head Phillips SMS
3/4" Plugs
Torx screws
Bracket, Spacer, Front Gear Box Console
Bracket, Cons, Fuse Cover
Bracket, Cover, Shift Gear Box
Panel, DS, Front Console, Shift Gear Box CM002151
Panel, PS, Front Console, Shift Gear Box
2" Faceplate to hold the OEM optional
110 volt outlet
Always!
Havis, Inc.
75 Jacksonville Road, PO Box 2099
Warminster, PA 18974
T
800-524-9900
F
215-957-0729
www.havis.com
PART #:
GSM33187
GSM 20016
C-HK-1
CM002140
CM002142
CM002150
CM002152
CM003656
C-VS-1800-ESC-1_INST_6-09 rev 5-10
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Havis C-VS-1800-ESC-1
Summary of Contents for Havis C-VS-1800-ESC-1
- Page 1 Panel, PS, Front Console, Shift Gear Box CM002152 2” Faceplate to hold the OEM optional 110 volt outlet CM003656 Always! • Read all instructions before installing any Havis, Inc. products. • Use hardware provided with install kit C-VS-1800-ESC-1_INST_6-09 rev 5-10...
- Page 2 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 800-524-9900 215-957-0729 www.havis.com Carefully remove shift lever trim Carefully remove top of OEM Remove screw front lower sides bezel (unsnap) console (unsnap) (7mm socket) **SAVE HARDWARE** Remove rear lower side screws...
- Page 3 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 800-524-9900 215-957-0729 www.havis.com Place new console housing Attach to “Z” brackets with 1/4 x Tighten screws that attaches “Z” between seats 3/4 Phillips head bolts bracket to OEM mount...
- Page 4 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 800-524-9900 215-957-0729 www.havis.com Attach filler panel to OEM mounts Driver side filler panel Attach same as passenger side with OEM hardware panel (7mm socket) Make sure top plate is evenly Attach plate with #8 x 1/4”...
- Page 5 Finish wiring and complete installation. NOTE: Console kit includes 2” accessory plate for the OEM 110 volt outlet. If this plate is used, there will be only 16” of mounting space. 110v outlet in Hybrid vehicles only. (replacement plate part number - CM003656)
