Havis CUP2-1001 Installation Instructions

Drop in cup holder

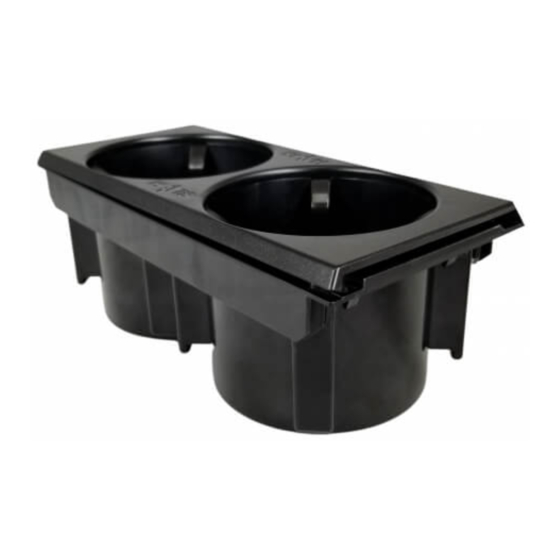

CUP2‐1001 Drop in cup holder for Havis consoles

TOOLS REQUIRED:

T‐20 Torx driver

PARTS and MOUNTING HARDWARE:

QTY DESCRIPTION

Hardware kit

EB console

mounting frame

 Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!

INSTALLATION INSTRUCTIONS

 Read all instructions before installing any Havis, Inc. products.

 Use hardware provided with install kit

PART#

C‐HK‐5

Always

Face plate / cup holder

assembly

CUP2‐1001_INST_9‐19

Table of Contents

Need help?

Do you have a question about the CUP2-1001 and is the answer not in the manual?

Wilfredo Albino

May 20, 2025

I'm looking for the specifications for this cup holder CUP2-1001 (Width, Length, Depth)

Page 1 INSTALLATION INSTRUCTIONS CUP2‐1001 Drop in cup holder for Havis consoles TOOLS REQUIRED: T‐20 Torx driver PARTS and MOUNTING HARDWARE: QTY DESCRIPTION PART# 1 Hardware kit C‐HK‐5 Face plate / cup holder assembly EB console mounting frame Always !  Read all instructions before installing any Havis, Inc. products.  Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!  Use hardware provided with install kit CUP2‐1001_INST_9‐19 ...
Page 2 Separate the EB console mounting frame from face plate / cup holder assembly by simply inserting flat Determine 4” mounting space for cup holder blade tool into end slots and turning. and first place EB frame into console. To install cup holder, pinch holder in the middle Attach EB frame to console using supplied and place into EB frame until it clips. #8‐18 Torx screws To remove for cleaning, pinch cup holder in the Installation is now complete. middle and pull up to remove from frame. CUP2‐1001_INST_9‐19 ...
