SMITH SYSTEM UXL Nest and Fold Table Assembly Instructions page 3

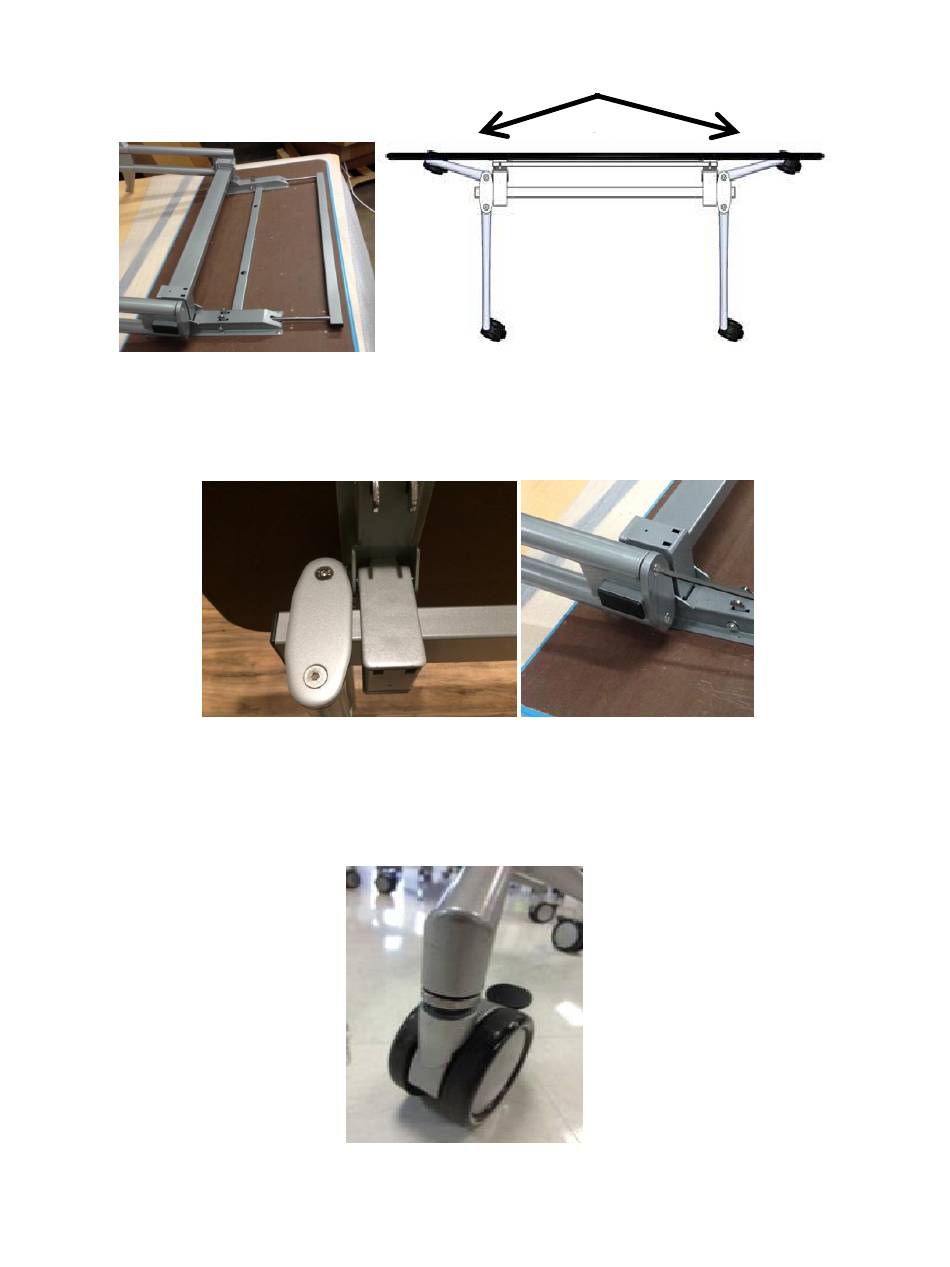

Step 4: Slide the leg over the beam ensuring that the longer foot faces towards the handle and the
shorter foot faces away from the handle. (FACE LEGS OUTWARD AS SHOWN)
Step 5: Check that the Legs are not interfering with the mechanism and are equally spaced
approximately ½" from the end of Beam on both sides.
MECHANISM
LEG
BEAM
PLATE
Step 6: Reinstall both leg Plates and Screws removed in Step 3 and tighten both screws firmly but
equally.
Step 7: Install both sets of Casters by screwing into legs using supplied wrench to tighten.
For assistance in assembling product, missing or damaged parts, or to place an order, please contact customer
service at 800-328-1061.
You may also place your order online at
www.smithsystem.com
Form #179977 04/2018
