Blodgett Combi Manual Control BCM Service & Installation Manual page 48

Plug on alarm
sens. print
High limit
boiler
High limit motor
2 only used in
1.16/1.20
High limit
motor 1
Connection to
fuse F1

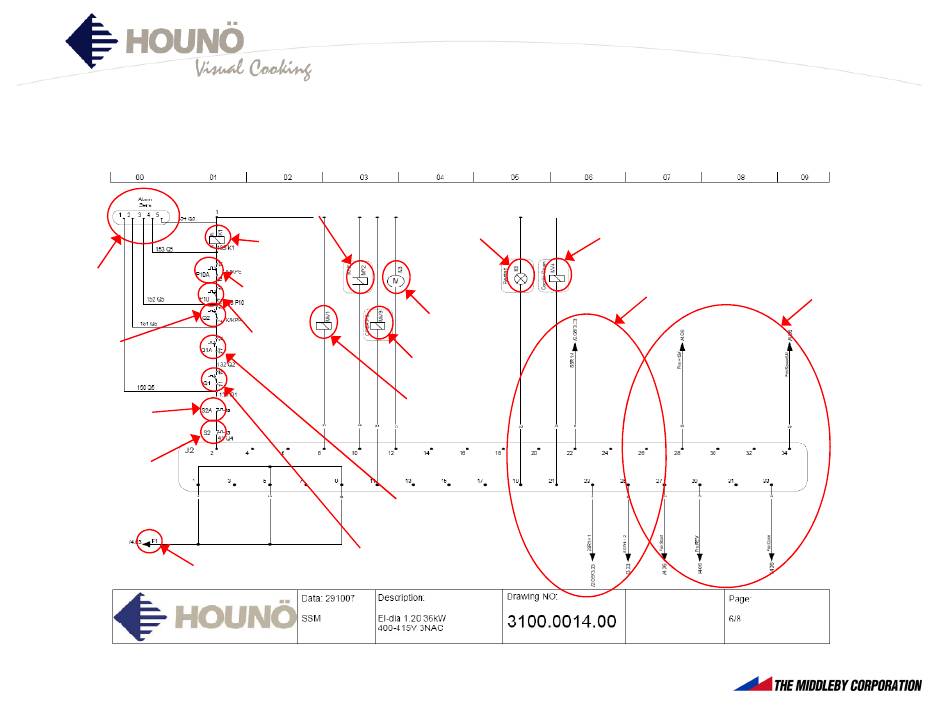

Wiring diagram:
Page 6
Solenoid valve
filling boiler
Coil main
contactor
High limit
SSR if more
than 2 SSR
High limit
SSR SSR
Solenoid valve
drain
Solenoid valve
inject
High limit oven only
when 1.16/1.20
High limit
oven
Lamp in restart
Solenoid valve
button
CombiWash
Motor for
exhaust
Connections to solid
Connections to
stat relay
frequency inverter
