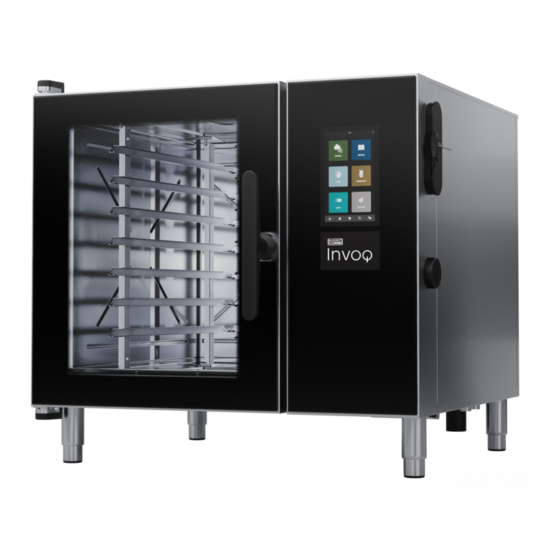

- Page 1 Installation manual Invoq Combi & Invoq Hybrid 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN 20-2/1 GN Gas & electric Original English document EN - English...
- Page 2 FOR YOUR SAFETY Do not store or use gasoline or other flammable vapours and liquids in the vicinity of this or any other appliance. NOTICE In order to be able to service this appliance, it must be installed with the casters supplied, a connector complying with ANSI Z21.69 - CSA 6.16 and a quick-disconnect device complying with ANSI Z21.41 - CSA 6.9.
-
Page 3: Table Of Contents
Safety instructions for gas ovens ................. 13 Personal protective equipment ................15 Receiving the oven Inspecting the oven ......................16 Transporting and unpacking the oven ............16 Disposing of the packaging ....................17 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 4 Installing the oven Mechanical installation ....................18 Clearance around the oven ..................19 Electrical installation ......................20 Connecting the oven to power ...................21 Gas installation ........................22 Connecting the oven to gas ..................22 Power connection - gas oven ..................22 Mounting a gas hose protection strap .............25 Water supply connection ....................26 Testing the water hardness ..................
- Page 5 Noise emission - PassThrough ................40 Data ............................40 Data - PassThrough ......................40 Power requirements, electrical oven ..............41 Power requirements, electrical oven - PassThrough ..... 45 Power requirements, gas oven ................49 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
-
Page 6: General Information
General information Target group This document is aimed at service technicians who have been trained in installing and servicing the oven. The oven must only be installed and serviced by qualified service technicians. Technical changes This document is subject to changes without notice. More documentation You find more documentation about the oven at our website. -
Page 7: Rating Plate On An Electrical Oven
IP class - IP number according to the degree of protection against ingress of water Month and year of production QR code for service app CE or UKCA marking Table 1 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 8: Rating Plate On A Gas Oven
Rating plate on a gas oven Item Description Name of the manufacturer, registered company name or trademark Name and address of the manufacturer or his representative. Oven model Serial number Rated voltage - voltage or voltage range in volts Nominal power - rated power in kilowatt Water supply - nominal line pressure of the oven IP class - IP number according to the degree of protection against ingress of water... -
Page 9: Symbols Used In This Document
A red or grey circle with a diagonal bar indicates that an action must not be taken or must be stopped. A blue or grey circle with a white graphical symbol indicates that an action must be taken Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 10: Safety Information
Safety information Read this document before using, installing or servicing the product. Installation and operation must comply with local regulations and accepted codes of good practice. Installation, maintenance and repair must be carried out by qualified installation and service technicians only. Installation and/ or service by others than qualified service technicians may result in injury to the operator and/or damage to the oven. -
Page 11: Safety Instructions Before Use
Always make sure no humans or animals are unintendly in the cavity before starting the oven. DANGER Risk of squeezing • Never lift the oven from the left-hand side. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 12: Safety Instructions During Use
Safety instructions during use CAUTION Risk of crushing • Always close the door with one hand on the handle to avoid crushing you fingers. Safety instructions during maintenance and service DANGER Risk of electric shock • Disconnect the oven from the power source during service and when replacing spare parts. -
Page 13: Safety Instructions For Gas Ovens
The installation of the gas supply tubing must comply with local and national rules and regulations. • The installation of gas supply tubing must be periodically examined and replaced, if necessary. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 14 DANGER Suffocation and/or explosion due to gas leak • Secure the gas hose protection strap as close as possible to the flexible connector. • Make sure the gas hose protection strap is short enough to prevent strain on the contractor. •...
-
Page 15: Personal Protective Equipment
SAfETy INfORMATION Personal protective equipment CAUTION Risk of burn injury • Use personal protective gloves if you perform maintenance or repair in a hot cavity. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 16: Receiving The Oven
Receiving the oven Inspecting the oven At delivery of the oven, do the following: • Check the oven for transit damage. • If there is any sign of damage, contact the supplier and the shipping agent immediately. Transporting and unpacking the oven When transporting the oven, use a pallet lifter or other appropriate lifting equipment. -
Page 17: Disposing Of The Packaging
The packaging contains recyclable materials. Disposal of the packaging must happen in an environmental sound way according to the WEE regulation, Directive 2012/19/EU, or local regulations for countries outside the EU. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 18: Installing The Oven
Installing the oven Mechanical installation DANGER Risk of injury • before mechanical installation, read the safety instructions in “Safety information” on page 10 and onward. Install the oven vertically and horizontally by measuring if the oven is in level in the oven cavity, at the front and on the left-hand side. -
Page 19: Clearance Around The Oven
In low-temperature environments, the following is required: 0 mm 40 mm Minimum clearance [mm] Position left-hand side Right-hand side back Height from the oven roof to the ceiling (gas ovens only) Table 3 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 20: Electrical Installation
High-temperature environment In a high-temperature environment, the ambient temperature is above 50°C. In high-temperature environments, the following is required: Position Minimum clearance [mm] left-hand side Right-hand side without heat shield* Right-hand side with 70 mm heat shield* back Table 4 *Heat shield is an optional extra and can be purchased separately. -
Page 21: Connecting The Oven To Power
The illustration to the right is valid in most oven IMPORTANT! configurations. Always check the wiring diagram. Go to “Settings”/”Oven setup”/”Heating”/”AC line voltage” and select the correct power supply to the oven. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 22: Gas Installation
Gas installation DANGER Suffocation and/or explosion due to gas leak • before gas installation, read the safety instructions in “Safety information” on page 10. DANGER Suffocation and/or explosion due to gas leak • Install the gas oven under an extraction hood that is switched on when the oven is working. - Page 23 12. Open the door to avoid that the oven cavity is overheated. 13. Touch “burner 1” and “Gas control” and let the oven start up. It might take some time before the gas is in the oven. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
- Page 24 14. Touch “Adjust fan speed” and set the speed to 100%. 15. Measure and adjust the 0 value according to the specifications in section “Gas-air mixture settings” in the service manual. 16. If the oven size is 20-1/1 GN or 20-2/1 GN, follow step to 15 for “burner 2”. 17.
-
Page 25: Mounting A Gas Hose Protection Strap
Secure the protection strap without damaging the building. • Never use gas pipes or power cables to secure the protection strap. • Use wall brackets in concrete or brick. • Use appropriate screws in wooden walls. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 26: Water Supply Connection
Water supply connection DANGER Risk of injury • before water supply connection, read the safety instructions in “Safety information” on page 10 and onward.. The oven has two water connections: • A water connection for non-filtered water for the washing system. •... -
Page 27: Testing The Water Hardness
Add the test fluid - one drop at the time. Count the number of drops until the colour changes from red to green. Determine the water hardness by comparing the number of drops to “Table 7”. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 28 Total hardness test [drops] 3600 [l] 6000 [l] 17950 30000 11966 20000 8975 15000 7180 12000 5983 10000 5125 8570 4458 7500 3985 6665 3590 6000 2860 5455 2620 5000 2420 4615 2245 4285 2100 4000 1965 3750 1850 3525 1745 3330 1655...
-
Page 29: Connecting The Oven To A Hydroshield Water Filter
Inlet, solenoid valve (filtered water) HydroShield water filter Inlet, solenoid valve (unfiltered water) T-fitting fitting Water inlet hose, 1500 mm Hose, 1000 mm ball valve Hose, 1000 mm Hose for handshower Table 8 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 30: Connecting The Oven To A Reverse Osmosis System
Setting the water meter See the section “Setting the water meter” in the user manual. Connecting the oven to a reverse osmosis system Mount the manifold on the solenoid valves for the water supply. Mount the water supply hose from the osmosis system on the manifold. - Page 31 INSTAllING THE OvEN Set the water meter. value value “Hardness” 0-3 °dH “filter” None “filtered water inputs” None “filter alerts” “filter changed” Table 9 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
-
Page 32: Mounting The Hand Shower
Mounting the hand shower The hand shower is an optional extra. you can mount the hand shower on the right-hand side of the oven or at your convenience near the oven. Mount the bracket for the hand shower using the two screws. -
Page 33: Setting The Oven
To disable all recipes containing pork, activate the “Middle East” function. Touch “Settings” in the home screen menu. Touch “Oven setup”. Touch “basics”. Toggle “Middle East” from “Off” to “On”. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 34: Starting Up The Oven
Starting up the oven before startup Before first startup, you must have finalised the following: • Mechanical installation. See section “Mechanical installation”. • Electrical or gas installation. See section “Electrical installation” or “Gas installation”. • Water supply connection. See section “Water requirements”. first startup Go through and test all test functions in the “Settings”... -
Page 35: Filling In The Installation Checklist
Sign the installation checklist - both service technician and customer. Save the installation checklist. In case of warranty claims, you must be able to present the signed installation checklist on request from the warranty provider. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 36: Technical Data
Technical data Dimensions 6-1/1 GN 10-1/1 GN 20-1/1 GN Dimensions excl. handle (HxWxD) [mm] 851x937x826 1081x937x826 1730x937x841 Dimensions incl. handle (HxWxD) [mm] 851x937x908 1081x937x908 1730x937x923 Dimensions incl. handle and stand (HxWxD) [mm] 1550x937x908 1781x937x908 Shipping dimensions (HxWxD) [mm] 950x1000x1200 1210x1000x1200 2050x1000x1200 Maximum working height, table stand [mm] Maximum working height, basic stand [mm]... -
Page 37: Weights
6-1/1 GN 10-1/1 GN Net weight [kg], Invoq Hybrid, electrical Shipping weight [kg], Invoq Hybrid, electrical Net weight [kg], Invoq Combi, electrical Shipping weight [kg], Invoq Combi, electrical Table 15 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 38: Water Requirements
Water requirements 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN 20-2/1 GN Water connection [inches] Drain [mm] Ø50 Ø50 Ø50 Ø50 Ø50 Ø50 Water flow [l/m] Water pressure, minimum [bar] Water pressure, maximum [bar] Minimum inlet water pressure [Pascal] 100,000 100,000 100,000... -
Page 39: Ip Classification
Sensible heat output [kW] Table 19 Heat rejection - PassThrough 6-1/1 GN 10-1/1 GN Maximum ambient operation temperature [°C] latent heat load [kW] Sensible heat output [kW] Table 21 Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... -
Page 40: Noise Emission
Noise emission 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN 20-2/1 GN Noise emission [db] - electrical without hood Noise emission [db] - electrical with hood Noise emission [db] - gas without hood Table 23 Noise emission - PassThrough 6-1/1 GN 10-1/1 GN Noise emission [db] - electrical without hood... -
Page 41: Power Requirements, Electrical Oven
230v 3P AC 230v 3P AC 230v 3P AC Electrical power consumption [kW] 10.3 19.3 38.2 22.3 31.3 62.2 Pre-fuse [A] RCD model Convection output [kW] Steam output [kW]* Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 42 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN 20-2/1 GN voltage [v] 230v 3PN AC 230v 3PN AC 230v 3PN AC 230v 3PN AC 230v 3PN AC 230v 3PN AC Electrical power consumption [kW] 10.3 19.3 38.2 22.3 31.3 62.2 Pre-fuse [A]...
- Page 43 480v 3P AC 480v 3P AC 480v 3P AC Electrical power consumption [kW] 10.3 19.3 38.2 22.3 31.3 62.2 Pre-fuse [A] RCD model Convection output [kW] Steam output [kW]* Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
- Page 44 6-1/1 GN 10-1/1 GN 20-1/1 GN 6-2/1 GN 10-2/1 GN 20-2/1 GN voltage [v] 480v 3PN AC 480v 3PN AC 480v 3PN AC 480v 3PN AC 480v 3PN AC 480v 3PN AC Electrical power consumption [kW] 10.3 19.3 38.2 22.3 31.3 62.2 Pre-fuse [A]...
-
Page 45: Power Requirements, Electrical Oven - Passthrough
Convection output [kW] Steam output [kW]* voltage [v] 230v 3PN AC 230v 3PN AC Electrical power consumption [kW] 10.3 19.3 Pre-fuse [A] RCD model Convection output [kW] Steam output [kW]* Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 46 6-1/1 GN 10-1/1 GN voltage [v] 240v 3P AC 240v 3P AC Electrical power consumption [kW] 10.3 19.3 Pre-fuse [A] RCD model Convection output [kW] Steam output [kW]* voltage [v] 240v 3PN AC 240v 3PN AC Electrical power consumption [kW] 10.3 19.3 Pre-fuse [A]...
- Page 47 Convection output [kW] Steam output [kW]* voltage [v] 480v 3PN AC 480v 3PN AC Electrical power consumption [kW] 10.3 19.3 Pre-fuse [A] RCD model Convection output [kW] Steam output [kW]* Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
- Page 48 6-1/1 GN 10-1/1 GN Power supply cable, type 208-240 3PN [mm 5 x 2.5 5 x 10 Power supply cable, type 208-240 3P [mm 4 x 2.5 4 x 10 Power supply cable, type 400-480v 3PN [mm 5 x 4 5 x 6 Power supply cable, type 400-480v 3P [mm 4 x 4...
-
Page 49: Power Requirements, Gas Oven
G30, G31 G30, G31 G30, G31 G30, G31 G30, G31 G30, G31 Power supply cable, type gas ovens Gas connection [inches] Table 29 *Only relevant for Invoq Hybrid ovens. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3... - Page 50 This page is intentionally left blank.
- Page 51 TECHNICAl DATA This page is intentionally left blank. Invoq Combi & Invoq Hybrid, installation manual, revision 11/2022, SW: 0.4.3...
