Blodgett Combi Manual Control BCM Service & Installation Manual page 32

Keyboard
Programming
connector
Power: Power:
1,2 - - COM IO 1,2 COM IO
3 3 - - GND GND
4 4 - - Start IO Start IO
5,6 - - 24V AC 5,6 24V AC

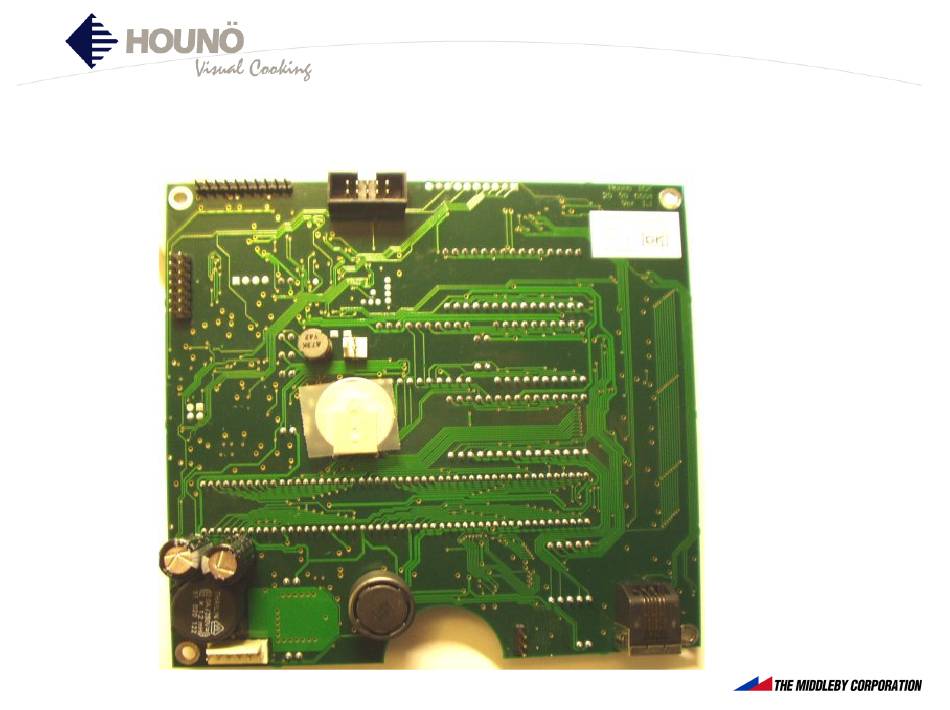

Back side B, C, K controler
Memory key
connector
Buzzer Buzzer
Power
1 6
Battery
(3V)
Encoder
RS232
not used
