Blodgett Combi Manual Control BCM Service & Installation Manual page 31

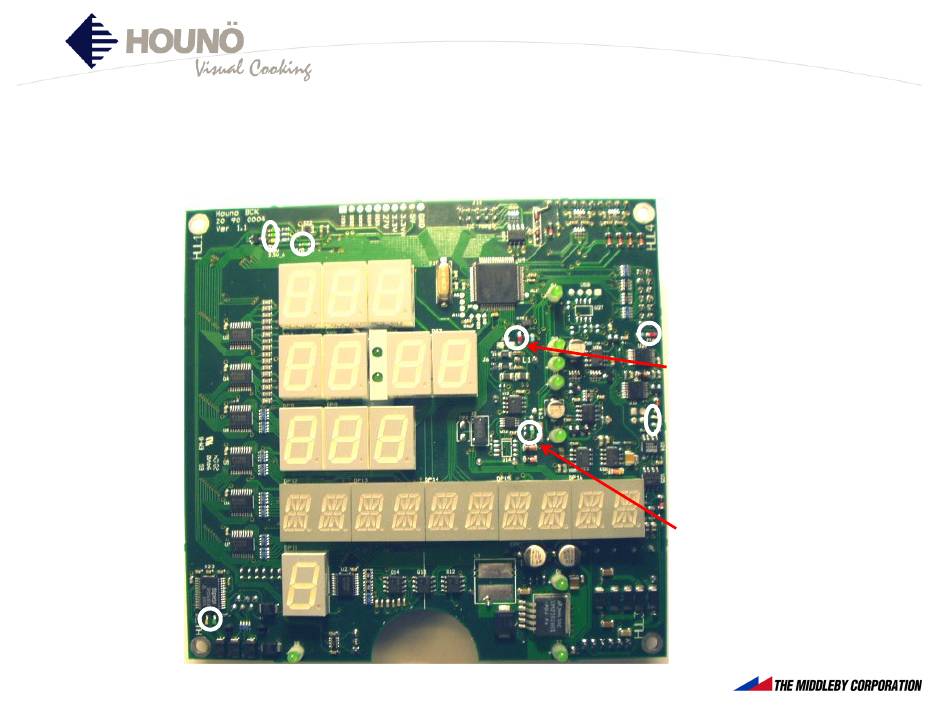

Front side B, C, K controller
Power
5V
3.3V Testpins
24V AC
Start IO
Encoder
RS232
Not used
Keyboard
CPU
reset
5V
Programming
connector
Short Short
flash at
start-up
Com IO light diodes:
Yellow transmit
Green receive
Must flash
Clock: Must
flash (1 sec)
Power:
24V AC
Start IO
COM IO
