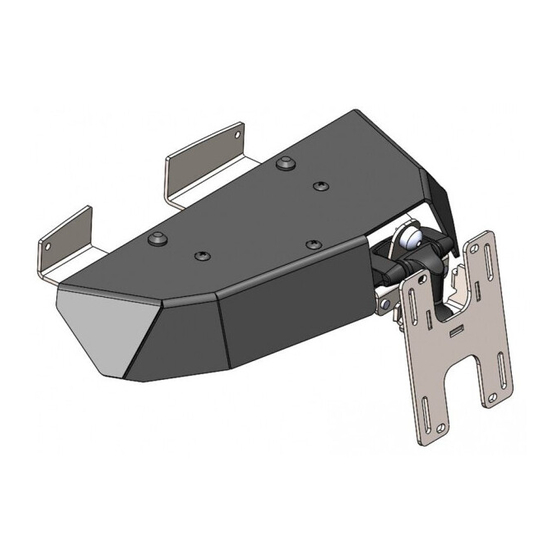

2015-2017 Chevy Tahoe Police Pursuit Vehicle (PPV)
1. The C-DMM-2000 series Dash Monitor Mount brackets are specifically designed to work with
2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light
weight tablet docking station applications under 5 lbs. . Acceptable positioning must be
3. The C-DMM-2003 will work with all Havis, Inc. consoles made for the Tahoe PPV.
4. The C-DMM-2003 Does NOT work in the Retail Tahoe because of OEM display options.
TOOLS
REQUIRED: (some tools are not needed for all vehicle installations)
• Socket set - metric & standard
• Phillips screwdriver
MOUNT BRACKET PARTS and HARDWARE:
Installation parts with * come loose in hardware kit bag. Other parts are preassembled
QTY:
DESCRIPTION:
1
Main dash mount bracket
1
Tahoe display mount cover
1
Stop bracket
1
Pivot / display mount bracket
1
Tilt swivel hinge
1
PVC spacer washer
1
Tilt swivel adaptor
2
1/4" x 3/4" Carriage bolts
2
1/4" Nylock nut
2
1/4" Flat washer
2
Nylon 1/16" spacer washer
2
M5 x 10mm Thread forming screw (hinge mt)
3
Nylon spacer (.075" OD x 1.25" long)
4
8-32 x .625" Phillips head machine screw
1
8-32 x .312" Phillips truss head machine screw
4
#10 x .75" Self-tapping screw
1
M8 hex nut SS
1
M8 lock washer SS
1
Vinyl cap (.50" high x .312 - .375 id)
2
Pull through bumper (3mm head)
2
Push in bumper
2
Push in bumper
INSTALL INSTRUCTIONS
C-DMM-2003
Havis, Inc, model # TSD-101 Touch Screen Display.
determined by end user.
• Drill & drill bits
• Trim removal tools
(10mm head)
(20mm head)
Dash Monitor Mount
Notes:
• 1.5" hole saw
• Pencil / Marker
PART #:
MT-0288-SM
MT-0289-SM
MT-0291-SM
MT-0320-SA *
GSM22005
CM008582
CM008531
GSM32000
GSM30016
GSM31005
CM86600
GSM33774
GSM34606 *
GSM34117 *
GSM34077
GSM34432 *
GSM30113
GSM31217
GSM41127
GSM21109
GSM21108
GSM21107
• Tape measure
C-DMM-2001_INST_1-17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Havis C-DMM-2003
Summary of Contents for Havis C-DMM-2003
- Page 1 5 lbs. . Acceptable positioning must be determined by end user. 3. The C-DMM-2003 will work with all Havis, Inc. consoles made for the Tahoe PPV. 4. The C-DMM-2003 Does NOT work in the Retail Tahoe because of OEM display options.
- Page 2 ALWAYS! • Read all instructions before installing any Havis, Inc products. • Use hardware provided with install kit C-DMM-2003 assembly MT-0289-SM GSM34117 * GSM34606 * GSM34432 * MT-0288-SM MT-0291-SM with GSM21108 GSM22005 MT-0320-SA * GSM32000 CM86600 GSM31005 GSM30016 CM008531 GSM31217...
- Page 3 Attach pivot / display mount bracket to display with Connect harnesses to the back of the TSD-101 display. M4 x 0.7 x 10mm Phillips head machine screws, lock It is important to also double wire tie the harnesses to provide sturdy strain relief for the plugs.
- Page 4 Carefully remove lower instrument panel trim and Carefully remove center instrument panel trim. side trim. Route wire harnesses behind instrument panel. Reattach all trim panels. Removing trim and installing harnesses prior to final bracket mounting is recommend for easier routing. Locate main dash mount bracket and attach to dash with Make sure bracket is secure and provide slack two (2) #10 x .75”...
- Page 5 M8 hex nut and lock washer. Tighten nut and Double check for proper slack in wire harnesses. attach vinyl cap on M8 bolt threads. Refer to TSD-101 owner’s manual for Installation of C-DMM-2003 with C-TSD-101 power and computer connection details. complete. C-DMM-2001_INST_1-17...
