5.2 Functions 10 through 28 (F10 - F28)

From the Home Operations Screen, press the
through the functions "Fn+10" and "Fn+20". When "Fn+10" is displayed over
the soft key the numeric keypad will control functions 10-19. If "Fn+20" is dis-
played the keypad will control functions 20-28. Press the
"Fn+00" which will allow the keypad to control functions 0-9. In addition to
watching the soft key data the full function number
and status will be displayed in the Function Bar
area of the display.

5.3 Fn Info+ : expanded function status

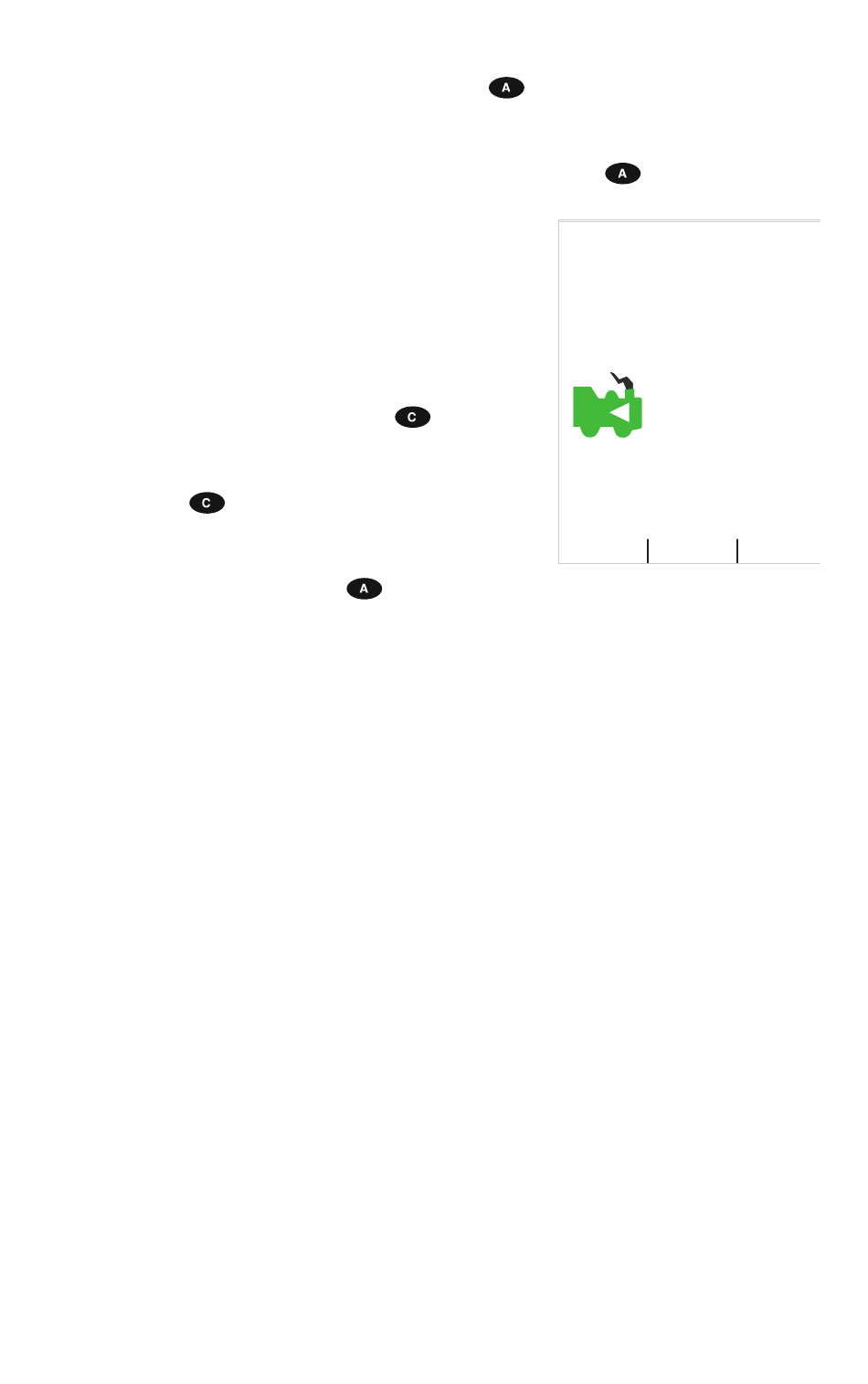

If you wish to view the status of all 29 functions at
once you can use the "Fn Info+" soft key. From the
Home Operations Screen, press the
Info+" this will expand the Function Bar area to
show functions 0-28. To collapse this function dis-
play press the
NOTE: The functions controlled by keypad still
correspond to the status of the

5.4 Troubleshooting Function Operation

If the function you want to operate does not respond, check the following:
1. Is Track Status on? If not press the Power/Back Key to turn it on.
2. Did you select the correct loco? If not, select it now.
3. Is the function you want to use installed in the loco? If not, you may need to
install it. Most new locos have a head lamp/backup lamp installed, but most
do not have any additional lights or sounds installed.
4. Press the direction arrow key, or double press the encoder switch, on the
active throttle and see if the lamp comes on in the other direction. If the
normal direction of travel feature in the decoder loco is set for the opposite
of what you were expecting, you will see the head lamp operating in what
you expected to be the reverse direction and vice versa for the back up
lamp. See your Decoder Manual for information about how to change the
Normal Direction of Travel (NDOT).
