9.0 Evolution Express setup

The DCS210+ is the command station and track booster part of an Evolution
Express control system. To setup a minimal system, to confirm functionality:
1. Connect the DCS210+ to the AC-powered PS615 DC power supply using
the 2mm DC jack, and switch settings, as shown in figure 3 below. The
DCS210+ will beep and the PWR led will light up. The PS615 is a uni-
versal DC supply and operates off 85 to 240Volts AC, 50/60Hz.

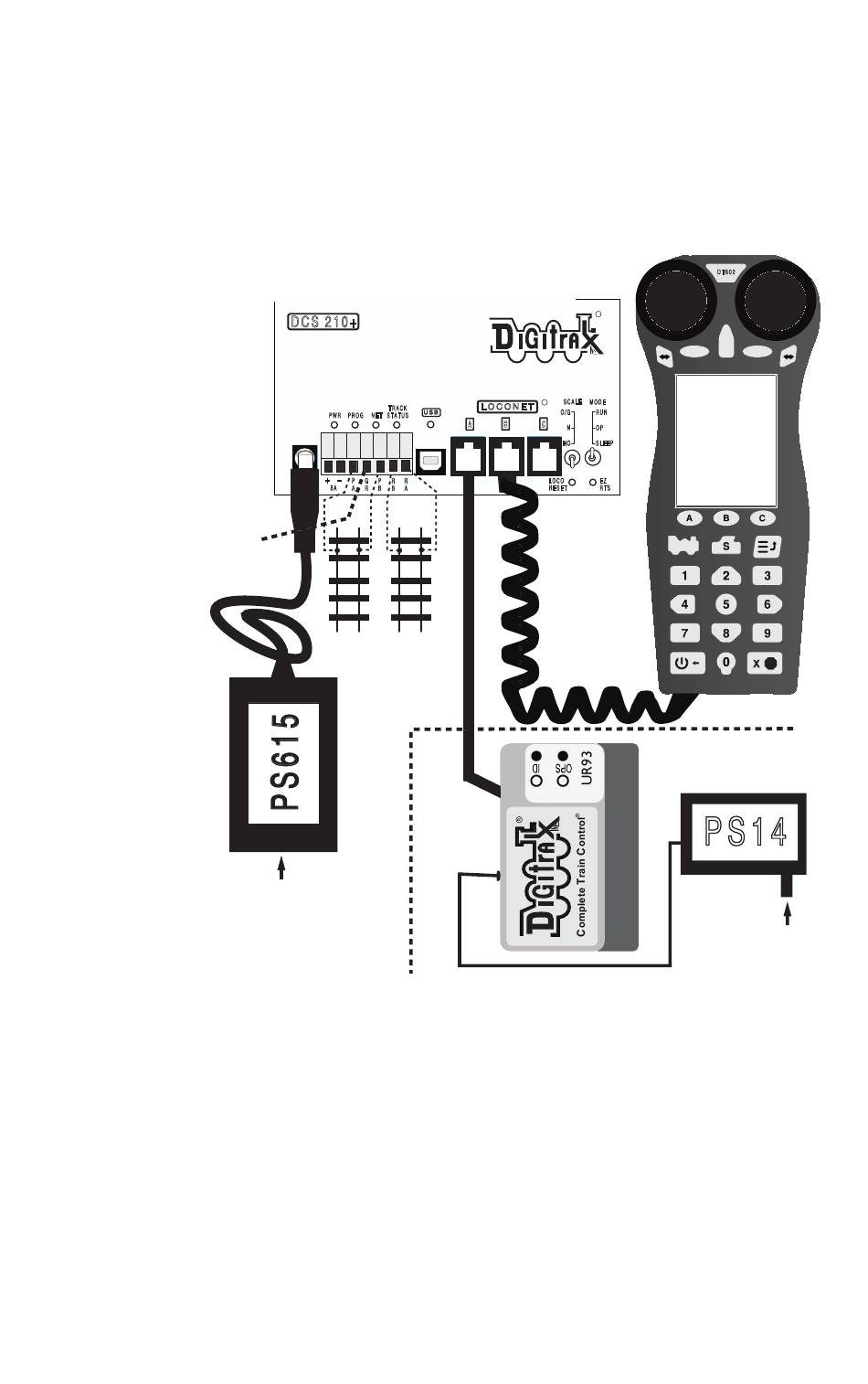

Figure 3: Evolution Express connections:
B o o s t e r
G r o u n d t o
o t h e r b o o s t e r s
2. Connect a DT602/D throttle via a LocoNet RJ12 cable to any one of the
three LocoNet jacks A/B/C on DCS210+.
3. The DT602 will power up its LCD screen, and log on to the DCS210+.
You will now be able to follow earlier section 2.0 Quick Start Guide steps.
4. The layout tracks and/or programming track may be connected and pow-
ered up to run or program decoded locomotives.
5. For the Duplex version: Connect and power up the UR93 Duplex trans-
ceiver and its PS14 supply as shown in the dashed section of figure 3.
Install 3 AA batteries and then plug in a DT602D/DE [or other duplex
compatible throttle] into a LocoNet RJ12 jack. The throttle will automati-
cally discover the UR93 current Duplex RF system NetName and Channel
number settings.
© 2020 Digitrax, Inc.
D C S 2 1 0 +
T R A C K
P W R P R O G N E T S T A T U S
+
-
5 A P G P R R
8 A A R B B A
P r o g r a m
M a i n l i n e
T r a c k
T r a c k s
I E C C o r d s e t
8 5 - 2 4 0 V A C
S C A L E
R
L O C O N E T
O / G
A B C
N
H O
L O C O
R E S E T
26
26
D T 6 0 2
R
E
D
M O D E
R U N
O P
S L E E P
E Z
R T S
D u p l e x V e r s i o n a d d i t i o n
P S 1 4
8 5 - 2 4 0 V A C
