Digitrax Evolution Express Family Manual

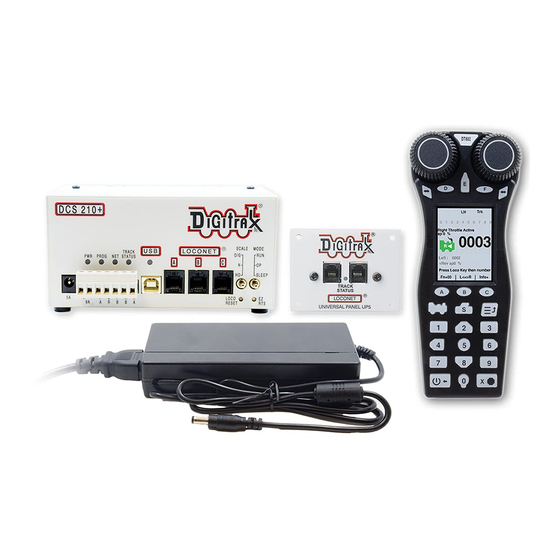

DCS210+, DT602's and UR93
2443 Transmitter Road
Panama City, Florida USA 32404
Support: helpdesk.digitrax.com
Digitrax Manuals & Instructions are updated periodically.
Please visit www.digitrax.com for the latest version of all
manuals & for available firmware updates.
C
T
C
Covers:
Digitrax, Inc.
www.digitrax.com
omplete
rain
ontrol
Advertisement
Table of Contents
Related Manuals for Digitrax Evolution Express Series
Summary of Contents for Digitrax Evolution Express Series
- Page 1 Covers: DCS210+, DT602’s and UR93 Digitrax, Inc. 2443 Transmitter Road Panama City, Florida USA 32404 Support: helpdesk.digitrax.com www.digitrax.com Digitrax Manuals & Instructions are updated periodically. Please visit www.digitrax.com for the latest version of all manuals & for available firmware updates.
-
Page 2: Table Of Contents
2.1.1 Home Operations Screen ............6 2.1.2 Screen IDLE Power saver ............7 3.0 Operating on batteries without LocoNet cable ......8 3.1 Recharging a Digitrax BP600MH Battery pack ......8 3.2 Powering a DT602 OFF..............8 4.0 How to select Locomotives and run trains ........9 4.1 How to select a Locomotive address .......... -
Page 3: Introduction
The Digitrax system reduces and simplifies layout wiring. There are many different combinations of Digitrax components that can be used to set up a layout control system that is right for you. You can combine Digitrax products with compatible decoders, boosters and computer software made by other companies that build compatible equipment. - Page 4 Soft key meanings Right: 0003 <Rev sp0 % IDLE A,B,C Soft Fn+00 L<=>R Fn Info+ Switch Keys Menu Key Loco Key Numeric Keys Power/ Exit/Stop Back Key Figure 1: DT602 family- keypad and LCD screen © 2020 Digitrax, Inc. www.digitrax.com...
-
Page 5: Quick Start Guide
8. With these simple steps you have made your first locomotive address selec- tion with your DT602 family throttle on the Evolution Express starter set. Place an analog loco on the connected mainline tracks to now operate it on address 0000. ENJOY running your trains! © 2020 Digitrax, Inc. www.digitrax.com... -
Page 6: Dt602 Lcd Screen
The following sections provide additional information beyond the built in scrolling HELP prompts. Check the Digitrax Web site for the latest DT602 information. The DT602 software can be updated in the field and so the operat- ing screens may change slightly over time. -
Page 7: Screen Idle Power Saver
A short press of the key is a consistent way to return to the HOME screen from any menu. Note: holding the the key for more than about 1 second will perform Emergency Stop. See section 8. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 8: Operating On Batteries Without Loconet Cable
3.0 Operating on batteries without LocoNet cable All DT602 models can operate unplugged in IR tetherless (without wires) mode if they detect Digitrax Infra-Red (IR) capability when first plugged into a working LocoNet. The DT602D can additionally operate in wireless Digitrax Duplex mode if it detects Duplex capability when first plugged into LocoNet. -
Page 9: How To Select Locomotives And Run Trains
“default” address “03”. This means that when you take a Digitrax decoder out of the package and install it in your loco, you can select address “03” on your throttle and run the decoder. -
Page 10: Selecting An Analog Or Non-Decoder Locomotive
To avoid heat build up in your locos without decoders, Digitrax recommends that analog locos NOT be left sitting on DCC powered track for long periods of time when they are not running. -
Page 11: How To Dispatch Locomotives
Enter the address of the loco you want to steal and press again. A scrolling message will appear in the Scrolling Help Text Area reading `”Press YES to steal Loco, No to exit” and the lower soft keys will change to “YES” and “NO” choices. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 12: Status Edit, Changing Speed Step Settings
Once the speed step setting you want to use is in the display, press the key to complete the selection and speed step setting change. Once this change is made, the Digitrax command station will send DCC commands to the edited decoder in the speed step setting you entered. -
Page 13: Adding A Locomotive To An Mu
14 you would get this error. If you wanted to add another loco to the MU with 23 as the TOP address, the right way to do it is to add that loco to 23, not to another address in the MU. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 14: Removing A Locomotive From An Mu
Remember, you will not be able change the speed or direction of any indi- vidual loco that is part of an MU. Locomotive speed and direction for all locos in the MU are controlled ONLY by the TOP address loco. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 15: Locomotive Functions
“non-latching key” so that if a horn or whistle sound is installed in the loco, it will sound for as long as the key is held down. This lets you vary the length of time that the horn or whistle blows, just like the prototype. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 16: Functions 10 Through 28 (F10 - F28)
See your Decoder Manual for information about how to change the Normal Direction of Travel (NDOT). © 2020 Digitrax, Inc. www.digitrax.com... -
Page 17: Switch/Turnout Control Mode
Option Switches (OpSw) on other LocoNet devices. Switch commands may also be used for controlling Digitrax compatible signal units. This section assumes that you have already installed and programmed turnouts and turnout decoders on your layout. -
Page 18: Using Quick Decoder Setup
AD4 line. Press the “DATA” to select the line. Use the keypad to enter the AD4 address you want to use, press “WRITE” to write the address to the decoder. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 19: Read And Write Configuration Variables
Alternately, if you know the CV29 Value you want to program into the decoder you can select it and use the keypad to enter the number. CV29 values can be looked up in the Decoder Manual or on www.digitrax.com. 10. To manually enter the CV29 value. Press the key on the keypad to highlight the CV29 Value line. -
Page 20: Programming On The Mainline
4- Ph; Physical on Prg Trkk • 4-Ph: Physical on Prg Trk Note: Direct programming is the Digitrax pre- ferred method Once you have selected a programming method, it will be listed above entries for CV number and CV data. CV number is the... - Page 21 NOTE: change a CV to a new value you want without knowing what it was in the decoder. OPS mode read back requires Digitrax compatible transponding decoders and transponding detectors on the layout in order to provide the two way communication required for OPS Mode read back.
-
Page 22: Programming Error Messages
This will allow you to profile each locomotive type for programming similar locomotives. 3. Resetting your decoder CV values to factory settings can eliminate some problems caused by inadvertently changing a CV value. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 23: Utility Tasks For Setup
=off 10 Expanded Cmds =off The available Options are described by the text, and more details are on the Digitrax web site. Down Change The LCD normal brightness level is set by Option ID15 “Max LCD brite level”and will begin to dim to level ID16 “Min LCD brite level” after ID18 “LCD brite hold delay “. -
Page 24: Route Editor
Use the encoder knobs to highlight the line with the desired network, Press the or “Join Net soft key to Join the selected network. Use the number keys to enter the KEY code, if required © 2020 Digitrax, Inc. www.digitrax.com... -
Page 25: Duplex Settings Editor (Dt602D)
CV value is causing the loco to take a long time to come to a stop. Emergency stop commands force an immediate stop with no deceleration delays. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 26: Evolution Express Setup
Install 3 AA batteries and then plug in a DT602D/DE [or other duplex compatible throttle] into a LocoNet RJ12 jack. The throttle will automati- cally discover the UR93 current Duplex RF system NetName and Channel number settings. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 27: Dcs210+ Status Leds
In RUN mode press EZ RTS to enter legacy Easy Route editor. The DT602 Route editor in section 7.3.4 is an easier route editor method for the DCS210+/ Evolution Express, so for simplicity the EZ Routes method is documented on the web site. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 28: Dcs210+ Mainline Tracks, Voltage Setting
2. A successful USB connection [or enumeration] will light up a blue led above the USB connector. This means the PC has a new COM port that can be selected and used by a compatible application/program. © 2020 Digitrax, Inc. www.digitrax.com... -
Page 29: Dcs210+ Option Switches
9.5 DCS210+ Option switches The DCS210+ has a number of useful Option switches (OPSW), and the most commonly used are below. A comprehensive OPSW listing is on the Digitrax web site. To modify an Option switch: Set the MODE switch to center OP position. The PWR and PROG leds will pulse alternately. -
Page 30: Fcc/Regulatory Information
OEM RF28 Manufacturer/Responsible Party: Digitrax Inc., 2443 transmitter Rd, Panama City, FL 32404, USA. (850) 872 9890. Model: RF28 “Changes or modifications not expressly approved by Digitrax Inc., the party responsible for original RF28 Certification compliance under 47 CFR15.212, could void the user’s authority to operate the equipment”... -
Page 31: Warranty And Repair Information
Other patents covering technology used by Digitrax are pending. Measures to protect trade secret information are enforced. Digitrax licenses the commercial use of LocoNet, which is trade secret tech- nology, to other companies on a non-exclusive basis. LocoNet is copyrighted property. - Page 32 Need Help? Digitrax Tech Support Team Need Help?: helpdesk.digitrax.com Digitrax Tech Support Depot 24/7/365 www.digitrax.com/support Contains links to all instructions sheets and manuals, application notes, videos and tons of helpful information. Digitrax Decoder Selector www.digitrax.com/decoderselector Helps you find which decoder will fit in a particular locomotive.
