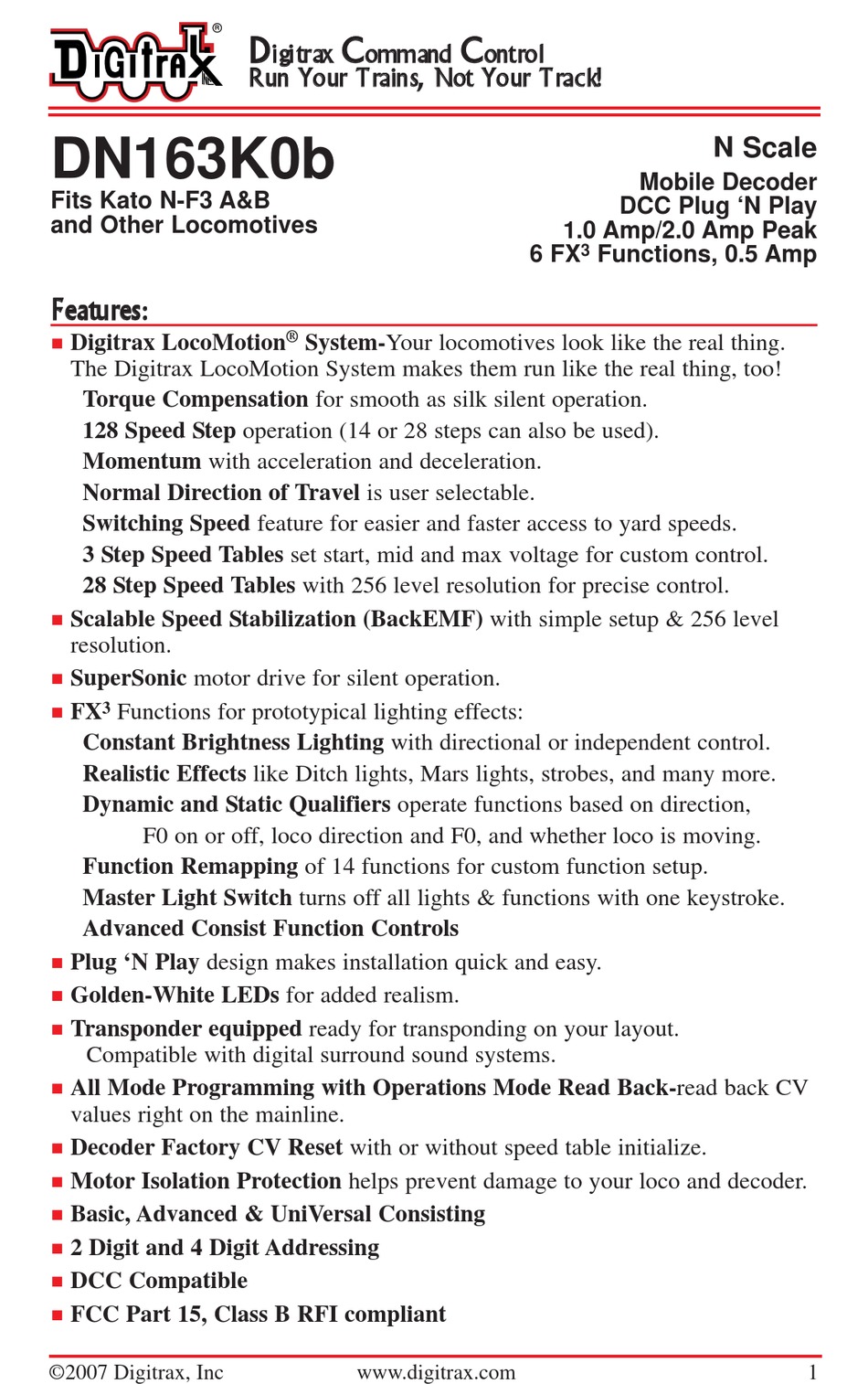

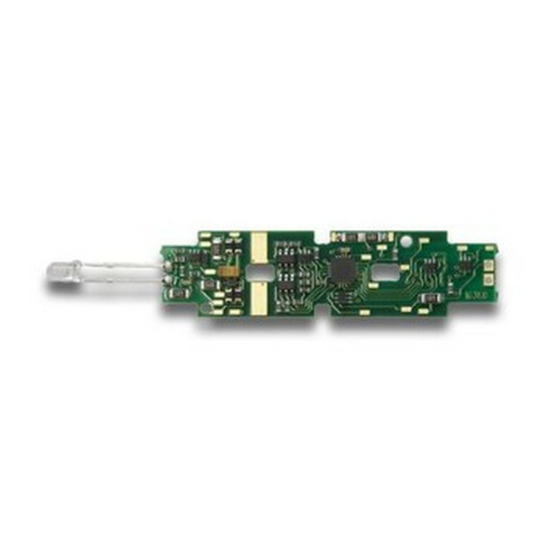

DN163K0b
Fits Kato N-F3 A&B
and Other Locomotives
F F e e a a t t u u r r e e s s : :
Digitrax LocoMotion
n
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
Scalable Speed Stabilization (BackEMF) with simple setup & 256 level
n
resolution.
SuperSonic motor drive for silent operation.
n
3
FX
Functions for prototypical lighting effects:
n
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more.
Dynamic and Static Qualifiers operate functions based on direction,
F0 on or off, loco direction and F0, and whether loco is moving.
Function Remapping of 14 functions for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
Plug 'N Play design makes installation quick and easy.
n
Golden-White LEDs for added realism.
n
Transponder equipped ready for transponding on your layout.
n
Compatible with digital surround sound systems.
All Mode Programming with Operations Mode Read Back-read back CV
n
values right on the mainline.
Decoder Factory CV Reset with or without speed table initialize.
n
Motor Isolation Protection helps prevent damage to your loco and decoder.
n
Basic, Advanced & UniVersal Consisting
n
2 Digit and 4 Digit Addressing
n
DCC Compatible
n
FCC Part 15, Class B RFI compliant
n
©2007 Digitrax, Inc
D D
C C
i i g g i i t t r r a a x x
o o m m m m a a n n d d
R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! !
®
System-Your locomotives look like the real thing.
www.digitrax.com
C C
o o n n t t r r o o l l
DCC Plug 'N Play
1.0 Amp/2.0 Amp Peak
3
6 FX
Functions, 0.5 Amp
N Scale
Mobile Decoder
1
Advertisement
Table of Contents
Related Manuals for Digitrax LocoMotion DN163K0b
Summary of Contents for Digitrax LocoMotion DN163K0b
- Page 1 Digitrax LocoMotion System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).
- Page 2 Wrap a small piece of yellow Kapton tape (supplied with the Digitrax decoder) around the rail just to the front of the dimple (between the dotted lines in photo, right). The tape should wrap around the outside edge to ensure the brass motor clip is completely isolated from the brass pickup rail when it is reinstalled.
- Page 3 10.Replace the locomotive shell. 11. Digitrax decoders are set up with configuration variable (CV) default values so you can run your locomotive right away using address 03. See the Digitrax Decoder Manual for complete instructions on setting up the CVs for customizing your locomotive’s performance characteristics.
- Page 4 C C u u s s t t o o m m i i z z i i n n g g Y Y o o u u r r D D e e c c o o d d e e r r Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming.
- Page 5 2 2 4 4 4 4 3 3 T T r r a a n n s s m m i i t t t t e e r r R R D D 8 8 5 5 0 0 - - 8 8 7 7 2 2 - - 9 9 8 8 9 9 0 0 P P a a n n a a m m a a C C i i t t y y , , F F l l 3 3 2 2 4 4 0 0 4 4 8 8 5 5 0 0 - - 8 8 7 7 2 2 - - 9 9 5 5 5 5 7 7 w w w w w w .
- Page 6 R R u u n n Y Y o o u u r r T T r r a a i i n n s s , , N N o o t t Y Y o o u u r r T T r r a a c c k k ! ! you wish to control. All six functions can be easily set up with Digitrax FX func- tions.
- Page 7 LED’s. F2- (VIOLET) F0F+ F0R(Yellow) F0R+ F0F- (White) F1- (GREEN) Figure 5: Connecting More Functions to Your DN163K0 decoder family Digitrax, Inc. is not responsible for unintentional errors or omissions in this document. ©2007 Digitrax, Inc www.digitrax.com...
- Page 8 DN163K0B Fits Kato N-F3 A&B and Other Locomotives 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com 850-872-9890 850-872-9557 Made in U.S.A. sales@digitrax.com...
