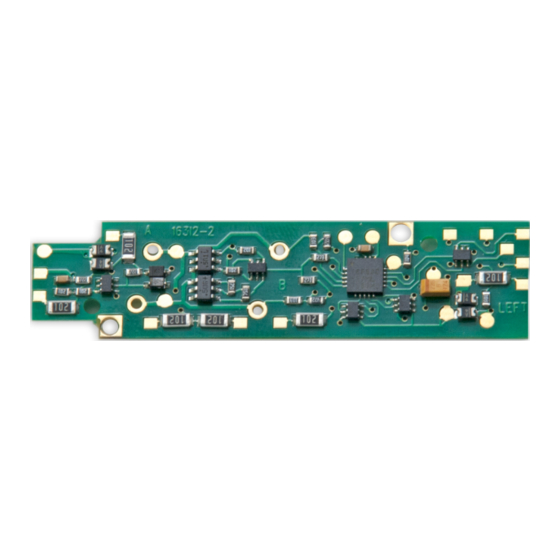

DN166I2B
Fits New InterMountain N Scale FP7
released 2014
.472" x 2.165" x .098"
11.98mm x 54.99mm x 2.4mm
Features:
▪
FX
Function outputs for prototypical lighting effects and on/off control:
3
Constant Brightness Lighting with directional or independent control.
Optimized selectable LED or incandescent lamp operation
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
Configurable Pulse Function available on all function outputs.
FX
& Standard Function Qualifiers operate functions based on direc-
3
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Mapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls.
▪
Digitrax LocoMotion
The Digitrax LocoMotion System makes them run like the real thing, too!
Scaleable Speed Stabilization (Back EMF) with simple setup & 256
level resolution.
Torque Compensation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
Direct mode programming.
▪
Decoder Reset CV with or without speed table reset.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
Automatic Analog Mode Conversion when running on DC layout.
▪
Decoder Lock for individual programming of multiple decoders in one loco.
▪
Digitrax "No Worries" Warranty.
© 2014 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
System-Your locomotives look like the real thing.
®
— 1 —
N Scale
Mobile Decoder
Board Replacement
1.5 Amp/2.0 Amps Peak
6 FX
Functions, 0.5 Amp
3
www.digitrax.com
Advertisement
Table of Contents
Related Manuals for Digitrax DN166I2B
Summary of Contents for Digitrax DN166I2B
- Page 1 ▪ Digitrax LocoMotion System-Your locomotives look like the real thing. ® The Digitrax LocoMotion System makes them run like the real thing, too! Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution. Torque Compensation. 128 Speed Step operation (14 or 28 steps can also be used).
-
Page 2: Parts List
1 DN166I2B Mobile Decoder 1 Instruction Sheet Installation Information See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information. Digitrax manuals and instructions are updated periodically. Please visit www.digitrax.com for the latest versions, technical updates and additional locomotive-specific installation instructions. -
Page 3: Installation Notes
Customizing Your Decoder Your Digitrax decoder is ready to run and will operate using address 03 with no additional programming. For a more prototypical railroading experience, your decoder can be customized for your specific locomotive by programming some of the Configuration Variables, or CVs, available. - Page 4 Digitrax decoders are shipped with CV01 (AD2), the two digit address, set to 03. Following is a brief description of how to change the decoder address with a Digitrax DT4XX series throttle. See your Starter Set Manual for complete programming instructions.
- Page 5 Normal Direction of Travel is controlled by CV29. See your decoder manual or the Digitrax Toolbox App for additional information on the settings for CV29. The intensity, or droop, of Scaleable Speed Stabilization (Back EMF) is controlled by CV57.
- Page 6 Function Outputs on the DN166I2B The DN166I2B is set up at the factory to control six functions. The unit has two sets of outputs for directional lighting. Pads F0F/F0F+ are for the front light and F0R/F0R+ for the rear light. Functions F1 , F2 , F3 and F4 can be used by sol- dering a wire from the pad for the function you wish to use to the lamp (or other function) you wish to control.
-
Page 7: Warranty And Repair
OFF. To turn on transponding, program CV61 to a value of 002. This al- lows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated. - Page 8 DN166I2B Fits New InterMountain N Scale FP 7 units released 2014 Super Available Computer Interface Decoder Programmer Sound Programmer 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Contact: www.digitrax.com/contact Part 15, Class B RFI Compliant Support: techsupport@digitrax.com...
