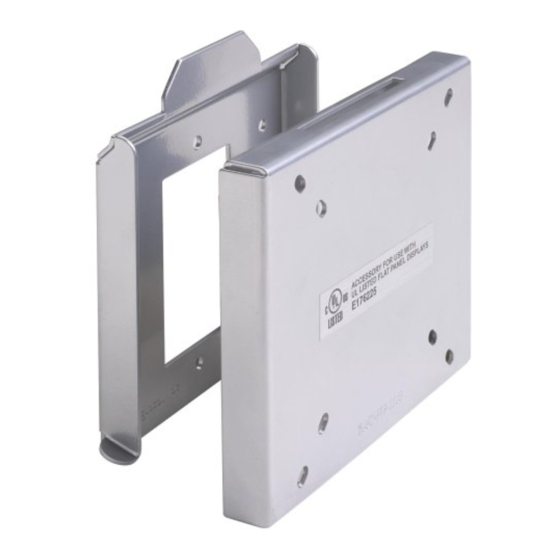

Each mount comes with two VESA mounting plates – one combination of 75/100 (mm) and one 75 (mm)-only plate for smaller mounting surfaces.
All Prestige flat panel mounts easily support most VESA-standard LCD flat panels on the market today.
PRF FLAT PANEL MOUNT
Features:
Mount comes in both VESA 75 and VESA-100 models. Stands
.750" off the wall.
Lbs: 1
Description
Qty
Size
Wood screws
4
#10 x 1-1/4"
Anchors
4
#10
Handy box screws
2
6-32 x 1"
Monitor screws
4
M4 x 10 (mm)
Security screws
2
M6 x 12 (mm)
Monitor screws
4
M4 x 20 (mm)
Nylon spacers
4
.5"
NOTE: If the screws (supplied) require being longer than M4 x 10 (mm) for your
monitor, use commercially available (suitable hardware) to complete your
installation.
NOTE: For monitors with a recessed VESA 75 use the four M4 x 20 (mm) Phillips
screws and the .5" nylon spacers (supplied).
1
IN-PRF.R1
FLAT PANEL MOUNT
HARDWARE
PRF
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts Prestige Ultra Flat Mount PRF
Summary of Contents for Premier Mounts Prestige Ultra Flat Mount PRF
- Page 1 Each mount comes with two VESA mounting plates – one combination of 75/100 (mm) and one 75 (mm)-only plate for smaller mounting surfaces. All Prestige flat panel mounts easily support most VESA-standard LCD flat panels on the market today. PRF FLAT PANEL MOUNT Features: Mount comes in both VESA 75 and VESA-100 models.
- Page 2 Check that you have all the hardware listed on the front of the page. If any of the hardware described is missing on your particular model do not continue, contact PREMIER MOUNTS INC. shown on the front cover. Separate the plates and choose the location for the monitor and follow any safety and precautions from the monitor’s manufacturer.
- Page 3 #10 wood screw monitor .5" nylon spacers Thank you for choosing PREMIER MOUNTS for your installation needs. If you have any questions please contact PREMIER MOUNTS INC. information is shown on the front of this page. monitor screws M4 x 10 (mm)
