INSTALLATION INSTRUCTIONS
LCD Ceiling Mount
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
PRC
AUSTRALIA, NEWZEALAND,
OCEANIA (DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 03 9586 63 30
www.premiermounts.com.au
Advertisement
Table of Contents
Related Manuals for Premier Mounts PRC
Summary of Contents for Premier Mounts PRC
-

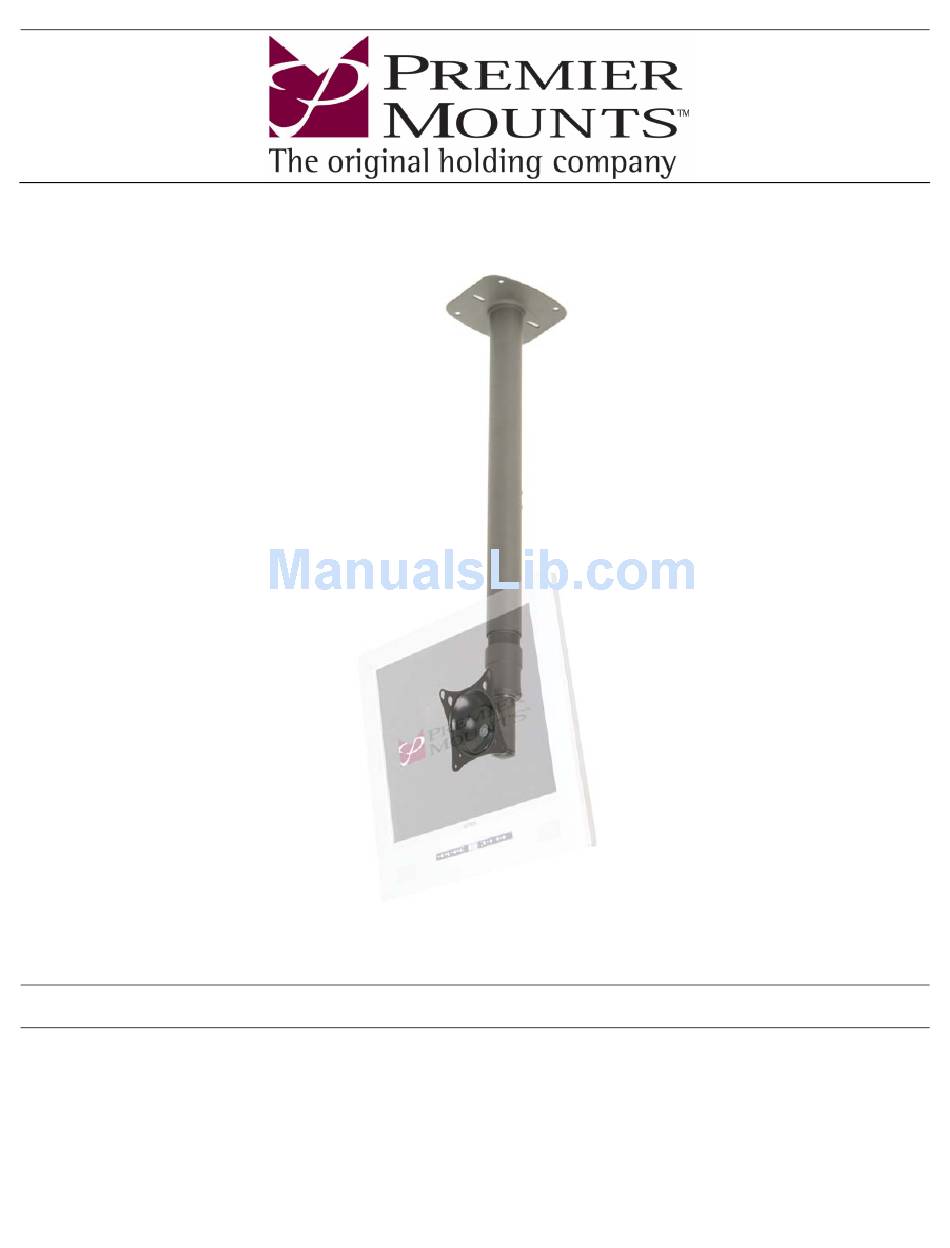

Page 1: Installation Instructions
3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9533-004-001-07 LCD Ceiling Mount EUROPE Swallow House, Shilton Industrial Estate, Shilton, Coventry, England CV79JY... -
Page 2: Table Of Contents
Technical Specifications ...- 7 - Warranty ...- 8 - PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS. -
Page 3: Parts List

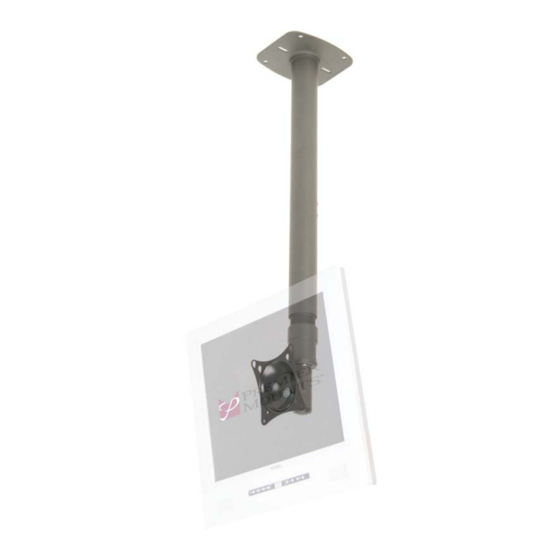

If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). Please review all WARNING and CAUTION statements (see Page 8) before beginning the installation of the PRC. AST-2446 (Qty 1) The AST-2446 is not included with the PRC-LA. - Page 4 Features: The PRC-LA allows tilt and pivot adjustments ±15° from center, 360° side-to-side swivel, and cable access. The AST-2446 allows height adjustment from 24 to 46 inches. Plus it also features two cable access openings. PRC-LA The AST-2446 may be substituted for a custom pre-cut length of threaded 1-1/2” NPT pipe.
-
Page 5: Ast-2446 Installation
AST-2446 Installation If the AST-2446 will not be used to mount the PRC, then a suitable piece of threaded pipe can be used. These instructions will tell the user how to mount an AST-2446 to the ceiling. If a custom piece of threaded pipe is... -
Page 6: Prc Installation
PRC Installation 1. Screw the PRC-LA coupling adapter to the AST-2446 adapter or 1½" (NPT) Pipe. 2. Secure the coupling with the M6 set screw (supplied). Display Installation Place the display on a soft flat surface, face down. Insert the two upper screws (thread on 3 turns). Do not insert the lower screws at this time. -
Page 7: Ufp-220 Adapter Plate (Optional Installation)
Attach the UFP-220 Adapter Plate to the back of the display using the six (6) M4 x 10mm flat head screws. Attach the PRC mounting plate to the back of the UFP-220 using the four (4) M4 x 5 mm screws. -
Page 8: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
