  • Page 1 Nice E EDGE SI 620 AC ZW E EDGE MI 632 AC ZW Tubular Motor EN - Instructions and warnings for installation and use...

  • Page 2: Installation Warnings

    GENERAL WARNINGS: SAFETY - INSTALLATION - USE (original instructions in Italian) ATTENTION Important safety instructions. Follow all instructions as improper installation may cause serious damage ATTENTION Important safety instructions. It is important for you to comply with these instructions for your own and other people’s safety.

  • Page 3: Product Description And Intended Use

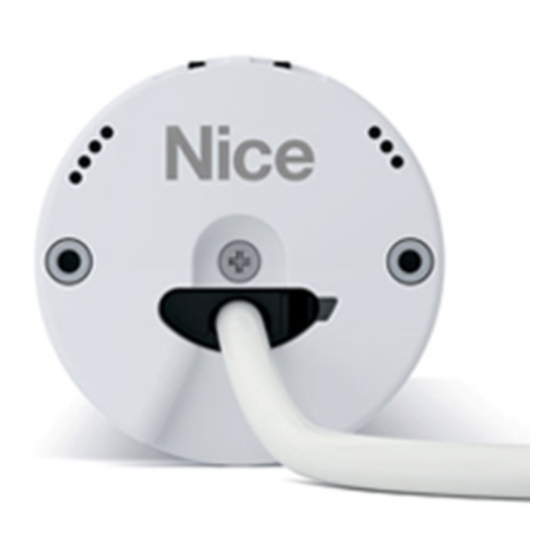

    PRODUCT DESCRIPTION AND INTENDED USE This product is a tubular motor for automating indoors roll-up awnings, or indoors sunscreens, or similar roll-up equipment (fig. 1). Do not use it for any other pur- pose! The manufacturer declines all liability for damage resulting from im- With box proper use of the product or any other use than that specified in this manual.
  • Page 4 (fig. 3-b), motor bracket (fig. 3-f), or to select supplementary cables (of dif- itations on use ferent lengths), refer to the “Nice Screen” catalogue, which is also available on www. niceforyou.com. • Check the condition of the product right after unpacking it.
  • Page 5 10 mm Gear wheel for limit switch (not included in the package). Edge M-AC Drive wheel (not included in the package). Edge S-AC Motor bracket (not included in the package). 2 screws: self-tapping without point, for plastic materials. Diameter: 4 mm; length of threaded part: = min. 5 mm - max 8 mm Supporting bracket of the wind- er roller (not included in the package).

  • Page 6: First Power Up

    For eventual extraction of the connector CAUTION! - The smaller cables must be handled carefully because they contain very thin wires that could be damaged. 3.1 - Connection of motor to electricity mains ELECTRICAL CONNECTIONS AND The motor is powered by a permanent connection to the mains. Use cable “A” (fig. FIRST POWER UP 2) for this connection, making sure to observe the warnings in full.

  • Page 7: Programming And Adjustments

    PROGRAMMING AND ADJUSTMENTS 4.1 - Groups of programming and adjustment pro- cedures There are 5 groups of programming and adjustment procedures: Group A – done with a Procedures which can only be complet- ed using a Z-Wave gateway. Z-Wave gateway. Group B –...
  • Page 8 –– GROUP “A” PROCEDURES –– Procedures which can only be completed using a Z-Wave gateway A.1 - Adding the device to the Z-Wave network NOTES AND WARNINGS • If the adding process is unsuccessful, perform the removing procedure (A.2), then repeat the adding procedure again. A.1.1 - Adding manually ...
  • Page 9 A.2 - Removing the device from the Z-Wave network NOTES AND WARNINGS • During removal procedure all information about the Z-Wave gateway and user configuration will be deleted. • Positions of limit switches will not reset after removing from the Z-Wave network. •...
  • Page 10 A.5 - Adjusting the motor’s sensitivity to obstacles NOTES AND WARNINGS • Use this procedure to activate, adjust or deactivate the safety system that: a) detects the presence of an obstacle along the travel of the awning; b) reduces the mo- tor tension on the awning when it is stationary at the Upper limit switch “0”...
  • Page 11 NOTES AND WARNINGS • To run the procedures in this group, you must use a compatible programmer (see the “Nice Screen” catalogue, also available on www.niceforyou.com). • For the programming and adjustment procedures possible with a given programmer, see the programmer’s user manual and interface.

  • Page 12: Eu Declaration Of Conformity

    = load too high relative to motor nameplate rating. Note: • All technical specifications stated herein refer to an ambient temperature of 20° C (± 5° C). • Nice S.p.A. reserves the right to apply modifications to products 4 flashes = serious error - 2.
  • Page 13 TABLE H – Multilevel Switch Command Class SET Z-WAVE SPECIFICATION Value Duration Level Description 0x00 Ignore Close 0x01..0x63 Ignore Lowest non zero level .. Set level .. Fully open The device is a Security Enabled Z-Wave Plus™ product and a 100% Security Enabled Z-Wave Controller must be used in order to fully utilize the product.
  • Page 14 42. Deceleration configuration 255. Factory reset Description This parameter is used to configure how many rotations the Description Reset values of parameters 39-43 or remove the device form motor will decelerate before stopping. the network. Parameter size Parameter size Default value Default value Available 0 ...
  • Page 15 Nice SpA Via Pezza Alta, 13 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
