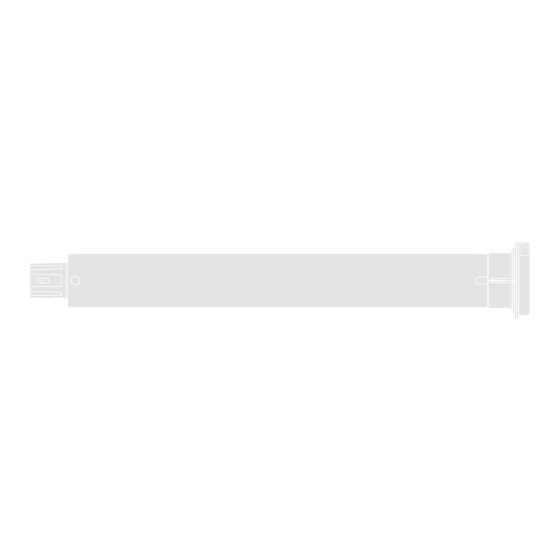

- Page 1 Nice E EDGE SS 332 AC E EDGE SS 620 AC Tubular Motor EN - Instructions and warnings for installation and use...
-
Page 2: Installation Warnings
GENERAL WARNINGS: SAFETY - INSTALLATION - USE (original instructions in Italian) ATTENTION Important safety instructions. Follow all instructions as improper installation may cause serious damage ATTENTION Important safety instructions. It is important for you to comply with these instructions for your own and other people’s safety. -
Page 3: Product Description And Intended Use
• it has a built-in radio receiver and control unit with encoder technology that elec- tronically controls the movement and precision of the limit switches; • it is compatible with all Nice control electronics using the NRC radio system (climate sensors and transmitters);... -
Page 4: Installation Of Accessories
Earth (or Green) wheel (fig. 3-b), motor bracket (fig. 3-f), or to select supplementary cables (of dif- ferent lengths), refer to the “Nice Screen” catalogue, which is also available on www. niceforyou.com. CABLE “B” is the CONTROL cable (fig. 2) - Page 5 Gear wheel for limit switch (not included in the package). Drive wheel (not included in the package). 10 mm Supporting bracket of the winder roller (not included in the pack- Motor bracket (not included in age). the package). 2 screws: self-tapping without point, for plastic materials.
-
Page 6: Programming And Adjustments
(fig. 2). Group A – done with a Procedures which can only be com- pleted with a Nice “ERA P” or “ERA transmitter. W” transmitter with the s, n, t, PRG, 3.3 - Connecting accessories and sensors... -
Page 7: General Warnings
4.4 - Important warnings for memorising the radio transmitters • To select transmitter compatible with the motor’s receiver, refer to the “Nice Screen” catalogue, which is also available on www.niceforyou.com. • When no transmitter is yet present in the motor’s memory, memorise the FIRST TRANSMITTER with procedure A.1 only. -
Page 8: Notes And Warnings
–– GROUP “A” PROCEDURES –– Procedures which can only be completed with a Nice “ERA P” or “ERA W” transmitter with the s, n, t, PRG, ESC keys GENERAL WARNINGS RELATING TO THE PROCEDURES • Before starting any programming, move the awning to an intermediate position, away from the Up and Down limit switches. - Page 9 A.2 - Temporarily deactivating (and reactivating) motors you do not wish to program NOTES AND WARNINGS • This procedure temporarily deactivates (for 5 minutes) only motors whose up and down limit switches have already been programmed. A.2.1 - To temporarily deactivate motors you do not wish to program The system locks out only those motors whose limit = 5 sec “...
- Page 10 A.3.2 - To program the DOWN limit switch (“1”) NOTES AND WARNINGS • With a “Shangri-La” type of Venetian blind, the LOW limit switch (“1”) must be identified in the following way: at step 4, as the blind descends, stop the movement a moment before the slats begin to tilt upwards, so: when they are all still in a vertical, closed position.
- Page 11 “PRG” and “ESC” buttons (like “ERA P” and “ERA W” transmitters). • To run procedures A.6.1.B and A.6.2.B you must have a new transmitter to memorise, chosen from the “Nice Screen” catalogue , and an old previously memorised transmitter.
- Page 12 (x 1) = 5 sec On the NEW transmitter: hold down release it after 5 count 2 movements. On the OLD transmitter: press and count 3 movements (= transmitter the button and seconds; release the button (1 time); memorised). If the system makes 6 movements (= memory locked or full, transmitter not memorised).
- Page 13 A.7 - Memorisation of a climate sensor connected via radio NOTES AND WARNINGS • To run this procedure you need the climate sensor you want to memorise, chosen from the “Nice Screen” catalogue, and an old trans- mitter memorised in Mode I (see par. 4.4.1-A). • When performing the procedure, you can cancel the programming at any time by holding down n and t together for 4 seconds.
- Page 14 (x 1) Select one of the following potions and execute it: • option A – delete the motor’s ENTIRE memory • option B – delete ALL memorised transmitters • option C – delete ONE memorised transmitter • option D – delete ALL positions (“0”, “1”, “H”, etc.). Caution! – This deletion should only be performed if you wish repro- gram the distances using a procedure different from the one used previously (e.g.
- Page 15 TYPE A • To start a movement: to raise the awning press s; to lower it press t. – standard Nice operation for “ERA” • To stop the movement: press the opposite button from that used to start the movement.
- Page 16 A.10 - Adjusting the motor’s sensitivity to obstacles NOTES AND WARNINGS • Use this procedure to activate, adjust or deactivate the safety system that: a) detects the presence of an obstacle along the travel of the awning; b) reduces the mo- tor tension on the awning when it is stationary at the Upper limit switch “0”...
- Page 17 = 5 sec = 5 sec Hold down the but- release it after 5 count 3 movements. Hold down the but- release it after 5 count 5 movements. seconds; seconds; tonand tonand GENERAL INFORMATION ABOUT PROCEDURES “A.12”, “A.13”, “A.14” The “Cruise speed” (procedure A.12), “Acceleration/deceleration of the movement” (procedure A.13) and “Movement dura- tion ”...
- Page 18 4 = 5 sec sec. After about 7 seconds, the motor performs a num- Hold down the buttonand release it after 5 seconds; count 3 movements. ber of movements equal to the number of pulses entered. A.13 - Adjusting the acceleration (at the start of the awning movement) and deceleration (towards the end of the movement) NOTES AND WARNINGS •...
- Page 19 continues 5 OPTIONS: (x ...) 1 press = sets 7 seconds Select the desired op- 2 presses = sets 15 seconds tion and program it as 3 presses = sets 20 seconds follows 4 presses = sets 30 seconds 5 presses = deactivates the function and sets nominal speed Press and release the button the number of times indicated in the option you have chosen;...
- Page 20 = 5 sec Option A = 5 sec = 5 sec Option B Hold down the but- release it after count 4 move- Select the desired op- Hold down the butto- release it after 5 sec- count the movements. tonand 5 seconds;...
- Page 21 A.18 - Programming the operation that the motor must carry out when the level of solar light (measured by the “Sunshine” climate sensor) exceeds the pre-set threshold 4 (x 1) (x 1) = 5 sec Press and release count 2 movements. Press and release count 2 movements.
- Page 22 A.20 - Adjusting the “sun” climate sensor threshold (sensors without on-board trimmer only) NOTES AND WARNINGS • If the sensor has an on-board trimmer, ignore this procedure and refer to the sensor’s instructions for adjusting the threshold directly on the trimmer. •...
- Page 23 A.22 - Locking and unlocking the motor’s memory NOTES AND WARNINGS • Locking the motor’s memory stops any other (unscheduled or unauthorised) transmitters being memorised in it. 4 (x 1) (x 1) (x 1) Press and release count 2 movements. Press and release count 2 movements.
- Page 24 NOTES AND WARNINGS • To run the procedures in this group, you must use a compatible programmer (see the “Nice Screen” catalogue, also available on www.niceforyou.com). • For the programming and adjustment procedures possible with a given programmer, see the programmer’s user manual and interface.
- Page 25 ––– Table of Commands –– STATUS OF BLIND AVAILABLE USE OF DESCRIPTION OF (fig. 5 and 6) CONTROLS ... KEYS MANOEUVRES MADE s (short press) The blind moves Upwards and stops at limit switch “0”..for “BASIC BLIND” mode The blind moves Downwards and stops at limit switch “1”.
-
Page 26: Green Led
3 flashes = load too high relative to motor nameplate rating. 20° C (± 5° C). • Nice S.p.A. reserves the right to apply modifications to products at any time when deemed necessary, maintaining the same intended use and func- 4 flashes = serious error - 2. -
Page 27: Eu Declaration Of Conformity
(No. 609/Era Inn Edge S AC) Note: the content of this declaration corresponds to that specified in the official document deposited at the Nice S.p.A. headquarters and, in particular, to the latest revised edition available prior to the publishing of this manual. The text herein has been re-edited for editorial purposes. - Page 28 Nice SpA Via Pezza Alta, 13 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
