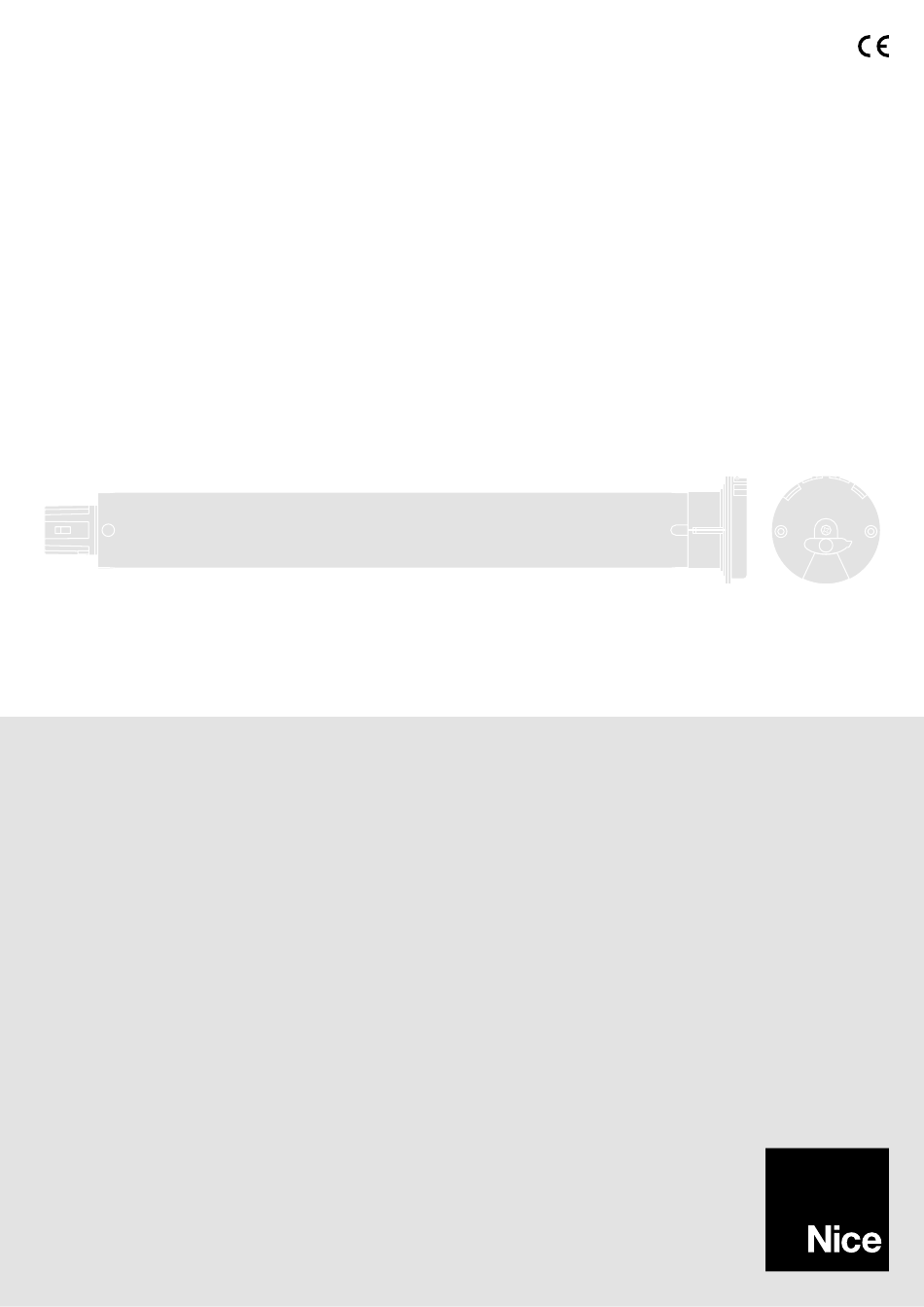

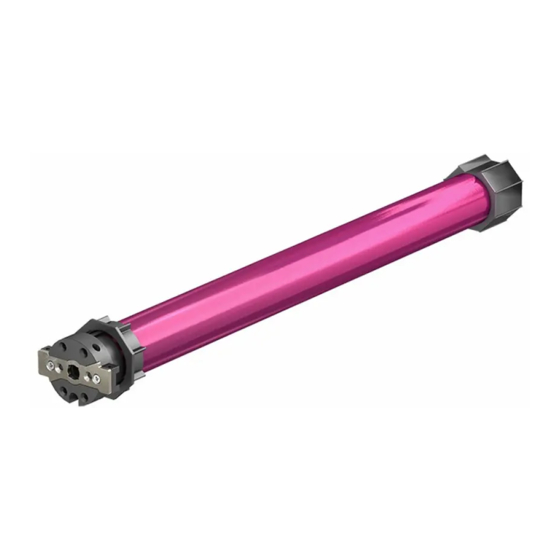

- Page 1 Nice E SMART SI 332 DC E SMART MI 332 DC E SMART SI 620 DC E SMART MI 632 DC E SMART SI 1012 DC E SMART MI 1020 DC Tubular Motor EN - Instructions and warnings for installation and use...
-
Page 2: Installation Warnings
GENERAL WARNINGS: SAFETY - INSTALLATION - USE (original instructions in Italian) ATTENTION Important safety instructions. Follow all instructions as improper installation may cause serious damage ATTENTION Important safety instructions. It is important for you to comply with these instructions for your own and other people’s safety. -
Page 3: Product Description And Intended Use
(fig. 4-b), motor bracket (fig. 4-f), or to select supplementary cables (of dif- limit switch) at a speed of 32 rpm. ferent lengths), refer to the “Nice Screen” catalogue, which is also available on www. • awnings of different weights are moved at the same speed;... - Page 4 WARNINGS and white-black cables. • Choose a 24 V power supply (see the motor rating plate) from the “Nice Screen” – Up to 5 tubular motors can be connected to one accessory, respecting the polar- product catalogue (the catalogue is also available online at www.niceforyou.com).
- Page 5 Group D – using a smart- Programming with a smartphone Model / Type: E SMART SI 332 DC, E SMART SI 620 DC, E SMART with NFC (Near Field Commu- phone. SI 1012 DC, E SMART MI 332 DC, E SMART MI 632 DC, nication).
- Page 6 –– GROUP “A” PROCEDURES –– only possible using the Nice "ERA" Series DMBM module GENERAL WARNINGS RELATING TO THE PROCEDURES • Refer to the DMBM module's own manual to perform any procedure from Group “A”. Only the “Notes and Warnings” for each procedure are given below.
- Page 7 TYPE A • To start a movement: to raise the awning press s; to lower it press t. – standard Nice operation for “ERA” • To stop the movement: press the opposite button from that used to start the movement.
- Page 8 GENERAL INFORMATION ABOUT PROCEDURES “A.8”, “A.9”, “A.10” The “Cruise speed” (procedure A.8), “Acceleration/deceleration of the movement” (procedure A.9) and “Movement duration ” (procedure A.10) functions allow you to completely customise the movement of the awning, align multiple awnings of dif- ferent sizes, with different diameter rollers (among other effects), or make the awning run more quietly.
- Page 9 NOTES AND WARNINGS • To run the procedures in this group, you must use a compatible programmer (see the “Nice Screen” catalogue, also available on www.niceforyou.com). • For the programming and adjustment procedures possible with a given programmer, see the programmer’s user manual and interface.
- Page 10 The programming with the “NFC” technology is not yet available on this motor. For more information contact the Nice Technical Assistance. Using a smartphone equipped with NFC technology and a software application produced by Nice (to be installed on your smartphone), you can configure the motors before installing them, even without the need to supply power.
- Page 11 Note: • All technical specifications stated herein refer to an ambient temperature of 5.9 - Diagnostic and alarm function for the DMBM 20° C (± 5° C). • Nice S.p.A. reserves the right to apply modifications to products module over the T4 BUS at any time when deemed necessary, maintaining the same intended use and func- tionality.
- Page 12 Appendix Limit switch gear wheel (not includ- ed). Smart M-DC Drive wheel (not in- cluded). Smart S-DC...
- Page 13 Removing the connector if necessary 10 mm Motor bracket (not included in the package). 2 screws: self-tapping without point, for plastic materials. Diameter: 4 mm; length of threaded part: = min. 5 mm - max 8 mm Supporting bracket of the winder roller (not included in the package).
