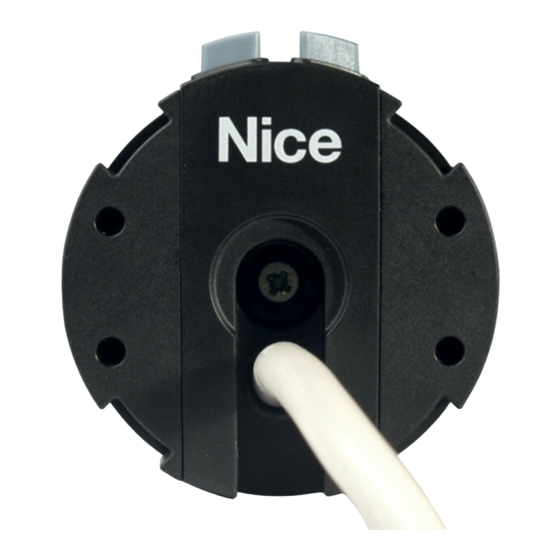

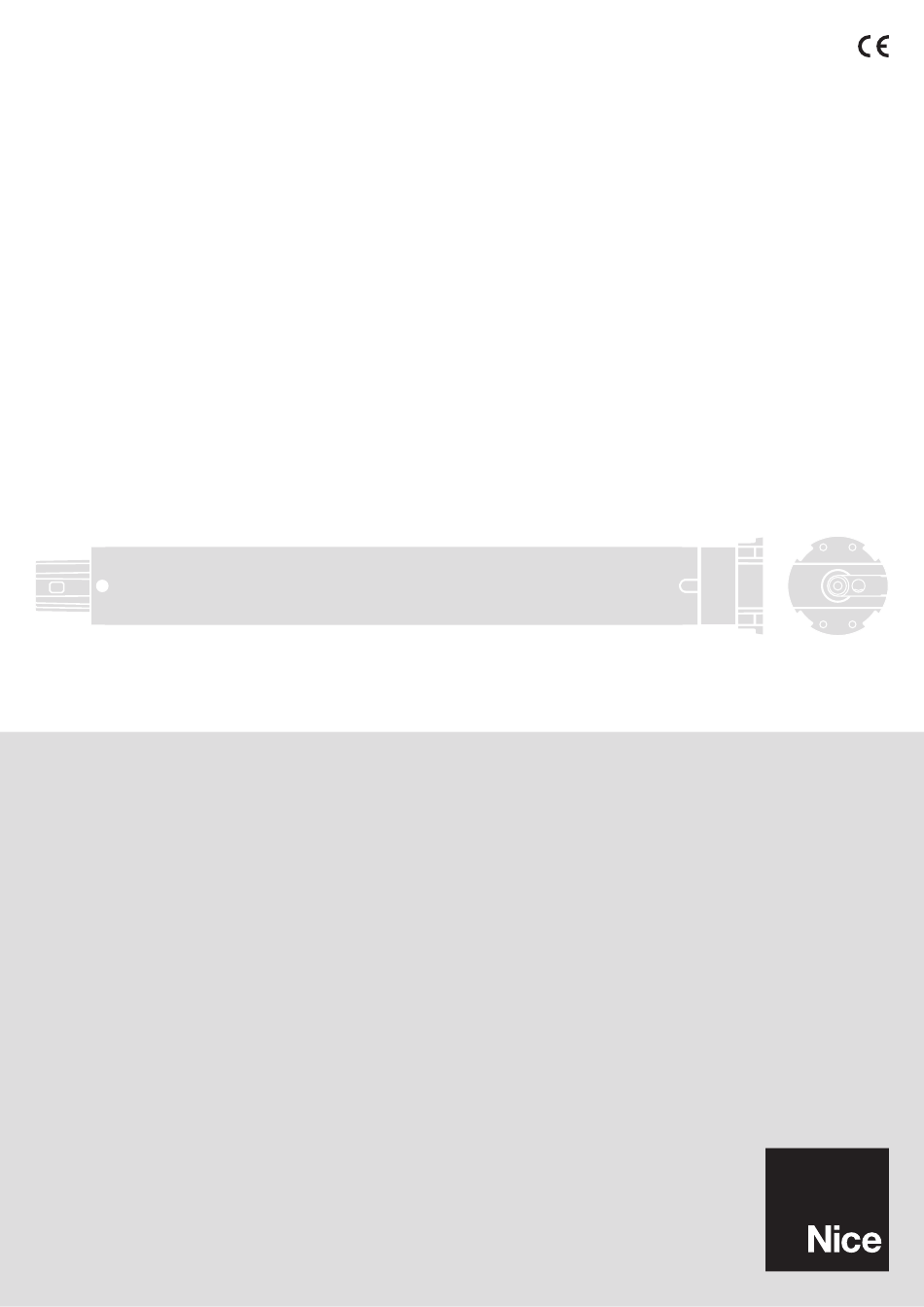

- Page 1 Nice E MAT ST 324 E MAT MT 5012 E MAT ST 524 E MAT MKT 1517 E MAT ST 611 E MAT MKT 3017 E MAT ST 1011 E MAT MKT 5012 E MAT MT 426 E MAT LT 5517...
- Page 2 Quick start guide Note for reading this Guide • In this Quick Start Guide, the numbering of the figures is separate and does not cor- Era Mat T respond to the numbering cited in the tubular motor for complete manual. • This guide does not awnings substitute the complete manual.
-
Page 3: Product Description And Intended Use
(see fig. 3); Instructions translated from Italian • it can be programmed via radio, with a portable transmitter or with a Nice hand- held programmer (these accessories are not included in the package); • it can move the awning up or down; stop it at the upper limit switch, the lower limit Complete Manual switch or various intermediate positions;... -
Page 4: Programming And Adjustments
5.4.1 - Compatible transmitters ming phases; refer to the procedures given in this manual (procedure 5.11) and Consult the Nice product catalogue or go to www.niceforyou.com to find the Nice those given in the manuals supplied with the devices. devices compatible with the radio receiver built into the motor. - Page 5 Application types and operating requirements Recommended programming Vertical roller awning Limit switch programming: • with automatic stop in the upper limit Programming in semiautomatic mode (paragraph 5.7) switch position “0” (with box) • without containment mechanical con- Programming in manual mode (paragraph 5.6) straints in the upper limit switch “0”...
- Page 6 PROCEDURES 5.5 - Memorising the FIRST transmitter Warning – Every time the motor is powered, 2 movements are performed if at least one transmitter and the limit switch heights are not in the memory. Before starting the procedure, bring the awning to the midpoint of its stroke. 01.
- Page 7 sec. sec. sec. “1” “1” sec. limit switch “1” desired fine adjustment Notes – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press any key and wait 60 seconds for the motor to perform 6 movements.
- Page 8 5.8 - Automatic programming of both limit switches WARNING! – This programming is intended for awnings with retainer lock on both the limit switches (“0” and “1”). Warnings • This procedure overwrites previously adjusted heights with the new heights using this same procedure. • Memorising the limit switches with this pro- cedure, the two heights are controlled and updated constantly by the “limit switch self-update”...
- Page 9 sec. sec. sec. NEW transmitter OLD transmitter NEW transmitter Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press any key and wait 60 seconds for the motor to perform 6 movements. 5.10.2 - Memorising a second transmitter in “Mode II”...
- Page 10 5.12 - “RDC” Function: adjustment of the motor traction force when closing This function prevents the excessive traction of the canvas at the end of the closing manoeuvre. During the final phase of this manoeuvre, the function automatically reduces the motor traction torque, based on the factory setting or the one adjusted by the installer with the following procedure. Warning! –...
- Page 11 5.14 - “FTA” Function: tensioning the canvas when open awnings fitted with a manual hook- ing and unhooking mechanism of the awning when opening This function is useful to eliminate the unsightly depression of the canvas that may form when the awning is open. The function may be used exclusively in awnings that let you lock the canvas in the open position through a mechanism manually attachable and detachable by the user (e.g.
- Page 12 sec. sec. sec. “1” “1” “S” “S” sec. move the awning in the “S” position fine adjustment Note – When performing the procedure, at any time you can cancel it by keeping the n and t keys pressed simultaneously for 4 seconds. Otherwise, do not press any key and wait 60 seconds for the motor to perform 6 movements.
-
Page 13: Optional Accessories
white Paragraph 5.16.1 white-black 5.17 - Locking and unlocking the memory This procedure allows you to lock or unlock the memory to prevent accidental memorisation of other transmitters not included in the system. Before starting the procedure, bring the awning to the midpoint of its stroke. 01. - Page 14 • The climate sensors must not be considered as devices to increase the safety of the awning when it rains or there is strong wind. Nice declines all liability for any ma- 6.2.4 - Priority among atmospheric events and operating prior- terial damages that occur due to atmospheric events not detected by the sensors.
- Page 15 6.A - Allocating a command (“Open” or “Step-by-step”) to a key (ref. paragraph 6.1) Before starting the procedure, bring the awning to the midpoint of its stroke. 01. Keep the n key pressed and wait for the motor to perform 2 movements. Upon completion, release the key. 02.
- Page 16 6.C - Adjustment of “Wind” climate sensor (ref. paragraph 6.2.3) At the factory, the intervention threshold to is set at level 3 and to change it you must take the following steps. Before starting the procedure, bring the awning to the midpoint of its stroke. 01.
- Page 17 – All technical specifications stated in this section refer to an ambient temperature of (troubleshooting guide) 20°C (± 5°C). – Nice reserves the right to apply modifications to products at any time when deemed necessary, maintaining the same intended use and functionality. q Powering an electrical phase, the motor does not move:...
