Part Numbers:
0000-8G-K05, 0000-8G-K03 (R3 Model)
Package Contents
Washer (Qty. 10)
Index Screw (Qty. 8)
Wellnut (Qty. 8)
0
Before Installation
A. Area to be covered by mask must be clean. It is recommended that you wash and wax vehicle prior to installation.
B. Both vehicle and mask must be completely dry prior to installation. If moisture under mask is allowed to dry on
vehicle, paint may cloud.
C. Any repainted surfaces in contact with mask must be allowed to cure completely. Consult paint manufacturer or
repair facility if you are not sure.
D. The use of a fiber stick may be required while inserting pads.
1
Install Hood Cover
A. With hood open, stretch hood cover (A)
onto hood, pulling each side one or two
inches at a time, until corners fit snugly.
Install hooks on ends of straps (B)
into corresponding holes on underside
of hood. Pull evenly on ends of
adjustable straps (B) until tight. Secure
loose ends in elastic loops.
Genuine Accessories
Installation Instructions
Snap Head Screw (Qty. 2)

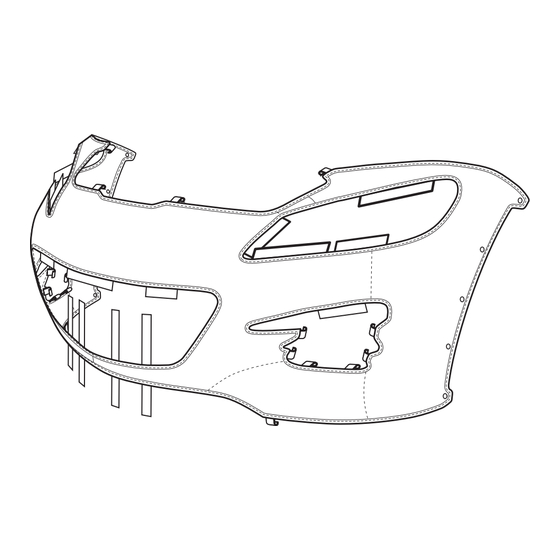

Front Mask
Hood Cover (Qty. 1)
Front End Cover (Qty. 1)
A
Applicable Models:
B
Page 1 of 4
2009 > RX8
Tools Required
Stubby Phillips
Screwdriver
Fiber Stick
(Optional)
AS 090-M11406cma0708
Advertisement
Table of Contents
Related Manuals for Mazda 0000-8G-K05
Summary of Contents for Mazda 0000-8G-K05
- Page 1 Page 1 of 4 Genuine Accessories Installation Instructions Applicable Models: Part Numbers: Front Mask 2009 > RX8 0000-8G-K05, 0000-8G-K03 (R3 Model) Package Contents Tools Required Stubby Phillips Screwdriver Washer (Qty. 10) Snap Head Screw (Qty. 2) Hood Cover (Qty. 1)
- Page 2 Page 2 of 4 Remove wheel well fasteners Install wheel well hardware A. Using stubby phillips screwdriver, remove plastic fasteners and screws along front edge of both front A. In both front wheel wells, using a stubby phillips wheel wells that correspond to snaps on mask. screwdriver, install wellnuts (C), washers (D) and index snap head screws (E) into 4 holes as shown.
- Page 3 Page 3 of 4 Install wheel well attachments Install headlight attachments A. Press snaps (J) onto snap head screws (E) and (F) in both front wheel wells. A. On driver’s side of vehicle, Attach clip (K) to metal edge of fender rail. B.
- Page 4 Refer to step 1. clean water and line dry completely. Do not machine dry! B. If mask should flap due to high speed or wind conditions, C. Use Mazda Vinyl/Leather Protectant (or equivalent) to adjust or remove mask completely. preserve color and finish.
