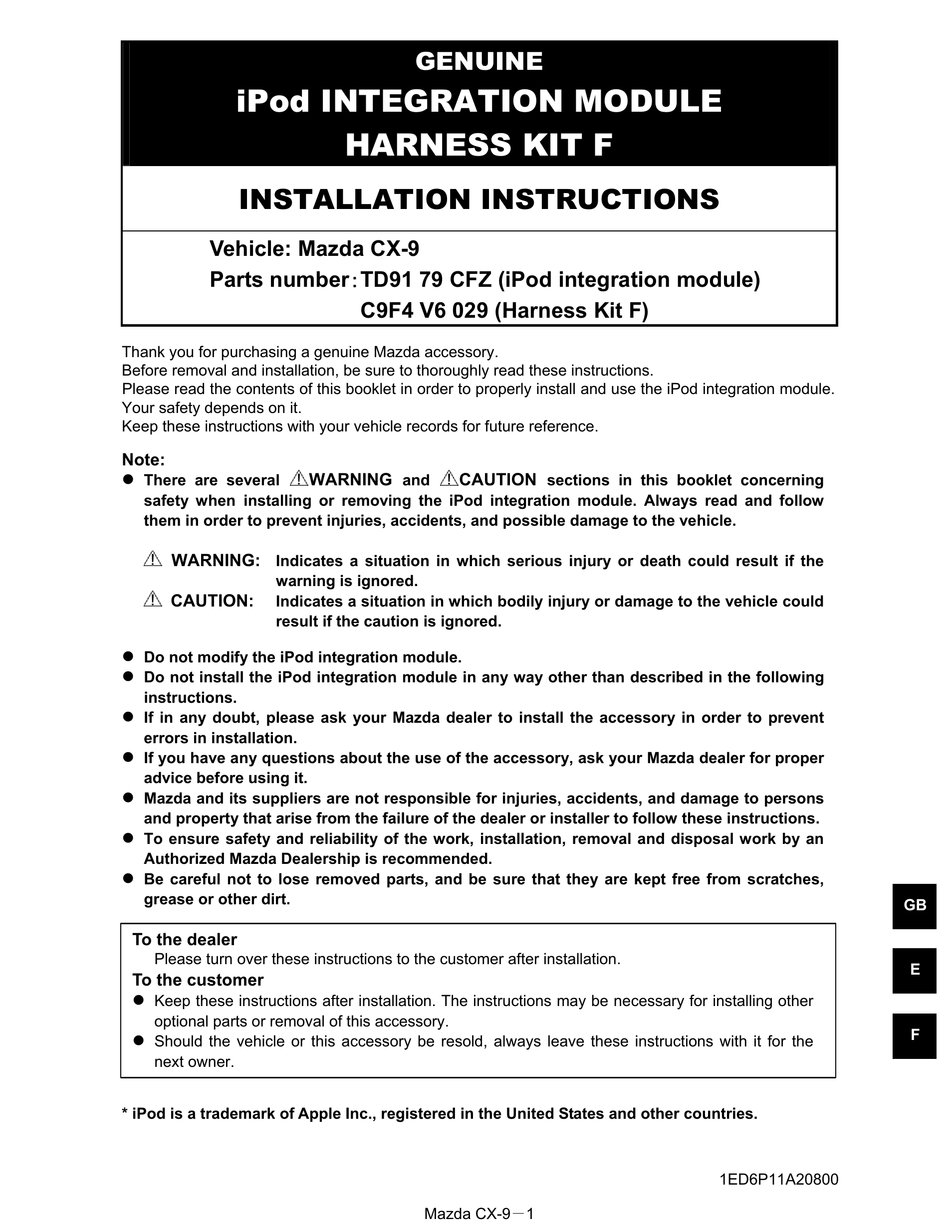

iPod INTEGRATION MODULE
INSTALLATION INSTRUCTIONS
Vehicle: Mazda CX-9

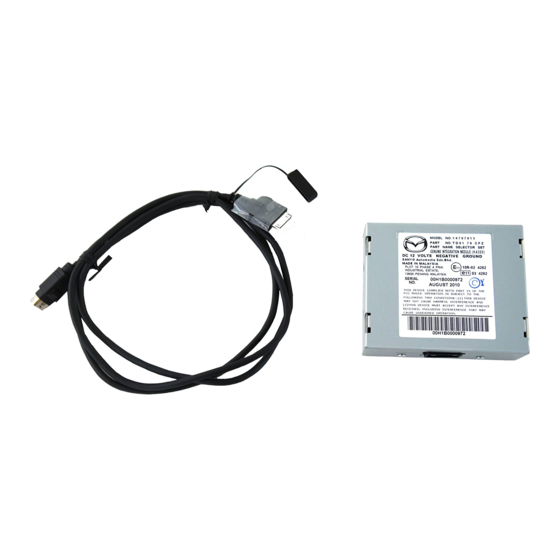

Parts number TD91 79 CFZ (iPod integration module)
Thank you for purchasing a genuine Mazda accessory.
Before removal and installation, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly install and use the iPod integration module.
Your safety depends on it.
Keep these instructions with your vehicle records for future reference.
Note:
z
There are several
safety when installing or removing the iPod integration module. Always read and follow
them in order to prevent injuries, accidents, and possible damage to the vehicle.
WARNING:
Indicates a situation in which serious injury or death could result if the
warning is ignored.
CAUTION:
Indicates a situation in which bodily injury or damage to the vehicle could
result if the caution is ignored.
z
Do not modify the iPod integration module.
z
Do not install the iPod integration module in any way other than described in the following
instructions.
z
If in any doubt, please ask your Mazda dealer to install the accessory in order to prevent
errors in installation.
z
If you have any questions about the use of the accessory, ask your Mazda dealer for proper
advice before using it.
z
Mazda and its suppliers are not responsible for injuries, accidents, and damage to persons
and property that arise from the failure of the dealer or installer to follow these instructions.
z
To ensure safety and reliability of the work, installation, removal and disposal work by an
Authorized Mazda Dealership is recommended.
z
Be careful not to lose removed parts, and be sure that they are kept free from scratches,
grease or other dirt.
To the dealer
Please turn over these instructions to the customer after installation.
To the customer
z
Keep these instructions after installation. The instructions may be necessary for installing other
optional parts or removal of this accessory.
z
Should the vehicle or this accessory be resold, always leave these instructions with it for the
next owner.
* iPod is a trademark of Apple Inc., registered in the United States and other countries.
GENUINE
HARNESS KIT F
C9F4 V6 029 (Harness Kit F)
WARNING
CAUTION
and
Mazda CX-9 1
sections in this booklet concerning
1ED6P11A20800
GB
E
F
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mazda TD91 79 CFZ
Summary of Contents for Mazda TD91 79 CFZ
-
Page 1: Installation Instructions
Do not install the iPod integration module in any way other than described in the following instructions. If in any doubt, please ask your Mazda dealer to install the accessory in order to prevent errors in installation. If you have any questions about the use of the accessory, ask your Mazda dealer for proper advice before using it. -
Page 2: Required Tools
1. PARTS PARTS LIST NOTE: x Before installation, verify that the kit includes all the following parts and that they are free of dirt, scratches, or damage. z iPod integration module (Part No.TD91 79 CFZ) Parts Part Name Parts Part Name... -
Page 3: Connection Diagram
To Sirius DLP (Line installation) / Bluetooth H/F 5. CAUTIONS ON CONNECTION CAUTION x When connecting a connector, be sure to insert it straight along the guide. The connector terminal may be bent if inserted at an angle. Mazda CX-9 3... - Page 4 Decoration panel (RH) Vehicle front Front console box mat removal Front console box mat 1. Pull the front console box mat outward and detach tabs A (6 locations), then remove the front console box mat. Tab A Vehicle front Mazda CX-9 4...
- Page 5 2. Pull the indicator panel upward and detach clips A (4 locations) and tabs B (6 locations). 3. Remove the shift indicator illumination, and then remove the indicator panel. Indicator panel Vehicle front Clip A Tab B Mazda CX-9 5...
- Page 6 Clip A Screw the antenna feeder is caught between the navigation unit Vehicle front Screw Bolt and dashboard, it may cause malfunctions. Tightening torque: 6.9 9.8 N m [ 71 99kgf cm, 62 86 in lbf ] Mazda CX-9 6...
-
Page 7: Installation And Wiring
To ensure proper affixing, be sure to degrease the area where the pad protector is affixed. Pad protector iPod integration module 3. Connect the harness (F) and iPod connection cable to the iPod iPod connection cable integration module. iPod integration module Harness (F) Mazda CX-9 7... - Page 8 3. Press fit the electro-tap terminal using pliers. Kit wire CAUTION x Lock the electro-tap locking area firmly until a click sound is heard. x Do not reuse an electro-tap if it has been used once. Vehicle front Mazda CX-9 8...
- Page 9 30 cm member Vehicle front Vehicle wiring Vehicle Tie redundant part harness front (iPod connection cable) Remove connector cover when connecting iPod; fit connector cover when iPod is not used Put iPod connection cable in glove box Mazda CX-9 9...
-
Page 10: Operation Check
3. Pull up the switch and continue holding for about 2 seconds to fully close the window. 4. If the function does not operate even after the ignition switch is turned off, contact an Authorized Mazda Dealer. Mazda CX-9 10...
