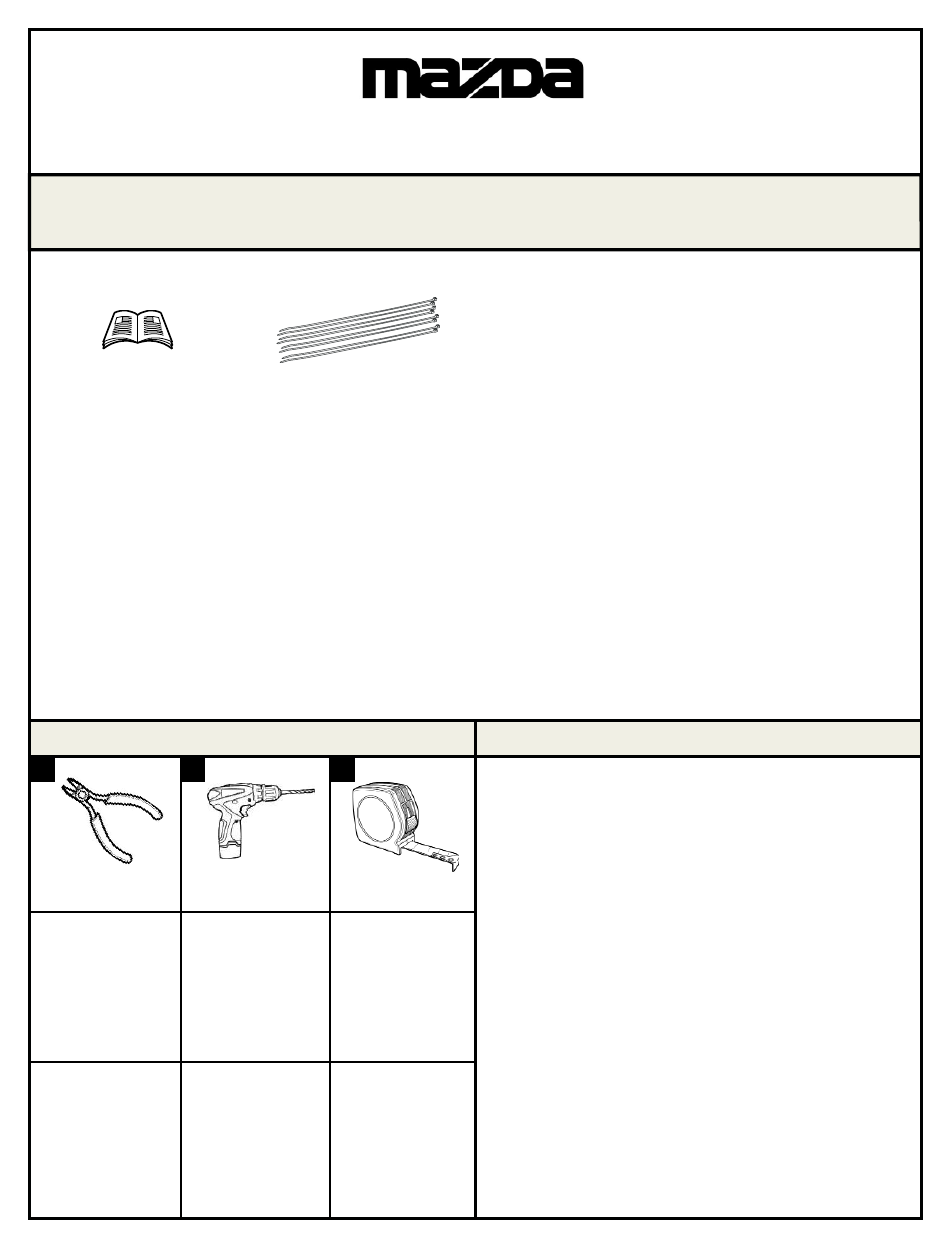

Part Number:
0000-8E-R10
Package Contents:
Installation
Instructions
(QTY 1)
Tools Required
A
B
Drill &
Wire Cutters
6mm Drill Bit
J
GENUINE ACCESSORIES
Installation Instructions
Supplemental Trailer Hitch Harness
Large Tie
Wraps
(QTY 7)
C
Tape
Measure
F
Page 1 of 10
2017 > CX-5 (GAS 2.5L)
Before Installation
1.) Read installation instructions before
proceeding.
2.) Be careful not to damage vehicle paint
or kit components.
3.) Do not over tighten bolts, tighten to
specifi ed torque.
Applicable Models:
Advertisement
Table of Contents
Related Manuals for Mazda 0000-8E-R10
Summary of Contents for Mazda 0000-8E-R10
-
Page 1: Installation Instructions
GENUINE ACCESSORIES Installation Instructions Part Number: Applicable Models: Supplemental Trailer Hitch Harness 0000-8E-R10 2017 > CX-5 (GAS 2.5L) Package Contents: Installation Large Tie Instructions Wraps (QTY 1) (QTY 7) Tools Required Before Installation 1.) Read installation instructions before proceeding. 2.) Be careful not to damage vehicle paint Drill &... - Page 2 4-FLAT HARNESS TIE WRAP REMOVAL Tools Needed: CRITICAL STEP Take caution not to damage or cut trailer hitch harness or any factory installed harnesses during the removal of the ties wraps. Wire Cutters 4-Flat Harness Routing Overview Tow Hitch Cross Member Tie Wrap (LARGE) FACTORY...
- Page 3 DRILL HOLE IN BUMPER FASCIA Tools Needed: 1. Locate attachment point (a) on the bumper fascia to measure the drill point for the tie wrap attachment. Measure 40mm towards the receiver tube of the hitch and 15mm Tape Measure upwards. Drill a 6mm hole at the drill point. DRILL HERE Drill + 6mm bit Bumper...
- Page 4 Grommet 1. Starting at grommet area, route 4-Flat trailer harness over top of hitch attachment bracket in direction towards hitch receiver tube. Hitch Attachment Bracket Receiver Tube Cross Member 4-Flat Trailer Harness 2. Route 4-Flat trailer harness underneath hitch cross member and up towards the Cross fascia support bracket.
- Page 5 SECURE 4-FLAT HARNESS FROM HITCH TO VEHICLE CRITICAL Due to the extreme high temperatures produced by the exhaust, a minimum STEP clearance of 50mm must be maintained between exhaust and harness. Failure to do so will result in severe damage to harness and loss of trailer functions, such as brake light and turn signal lights.
- Page 6 2. After the distance verifi cation trim the cable tie using the wire cutters and HEAD UP rotate the tie wrap head up so it is not visible from the rear of the vehicle to avoid injury. ROTATE UP 3. Confi rm harness is routed between the Support bumper fascia and support bracket.
-
Page 7: Finishing Steps
Grommet Tie Wrap Cross Member Tie Wrap Attachment Bolt 5. While removing all slack, use a large tie wrap to secure the harness to the hitch attachment bracket (d). Tighten the tie wrap and trim the tail using wire cutters. 4-Flat Tie Wrap Trailer Harness... -
Page 8: Troubleshooting
A PP LI CA B LE M O D ELS : PAR T N U M B ER : APPLICABLE MODELS 0000-8E-R07A TRAILER HITCH WIRING KIT 0000-8E-R10 2017 > CX-5 (GAS 2.5L) 2017 > CX-5 0000-89-R32A TOOLS REQUIRED TOOLS REQUIRED... -
Page 9: Installation Inspection
INSTALLATION INSPECTION PART NUMBER: APPLICABLE MODELS TRAILER HITCH WIRING KIT 0000-8E-R10 2017 > CX-5 (GAS 2.5L) Inspect the installed / reinstalled parts for the following items: Scratches/Dirt/ Installation/ Harness Tightening/ Operation Inspection Parts Clearance/Fit Interference Engagement Check 50mm Between Exhaust & Harness... - Page 10 2 seconds. 4. Position the engine switch at “OFF”, and then at “ON” again. When the function doesn’t work after these procedures, please contact your Mazda dealer. CAUTION Due to the extreme high temperatures produced by the exhaust, a minimum clearance of 50mm must be maintained between exhaust and harness.
