PART NUMBER:
0000-8E-N31

PACKAGE CONTENTS:

WARNING:
ALTHOUGH THIS HITCH IS DESIGNED TO SAFELY TOW IT'S RATED LOAD, IT
IS RECOMMENDED THAT YOU CONSULT YOUR VEHICLE OWNERS MANUAL
FOR FURTHER RECOMMENDATIONS OR LIMITATIONS. TRAILER BRAKES
ARE RECOMMENDED FOR TOWING LOADS IN EXCESS OF 1500 LBS. BE
SURE YOUR TRAILER HAS SAFETY CHAINS AND THAT EACH CHAIN WILL
HOLD THE TRAILERS MAXIMUM GROSS WEIGHT.

HARDWARE KIT CONTENTS

A
B
8X
8X
M12
M12 x 1.25
E
2X
M6 x 1.00
H
2X
Cable tie
02/24/2016
GENUINE ACCESSORIES
INSTALLATION INSTRUCTIONS
TRAILER HITCH KIT CLASS II
C
8X
M12
F
G
4X
M6
M6 x 1.00
I
Install Instructions
Template
D
4X
M12 x 1.25
2X
J
K
Hitch Plug
1 of 8
APPLICABLE MODELS:
2016 > CX-9

TOOLS REQUIRED

4MM 10MM
10MM
L
User Guide
0000-8E-N31
19MM
19MM
Rev G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0000-8E-N31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mazda 0000-8E-N31

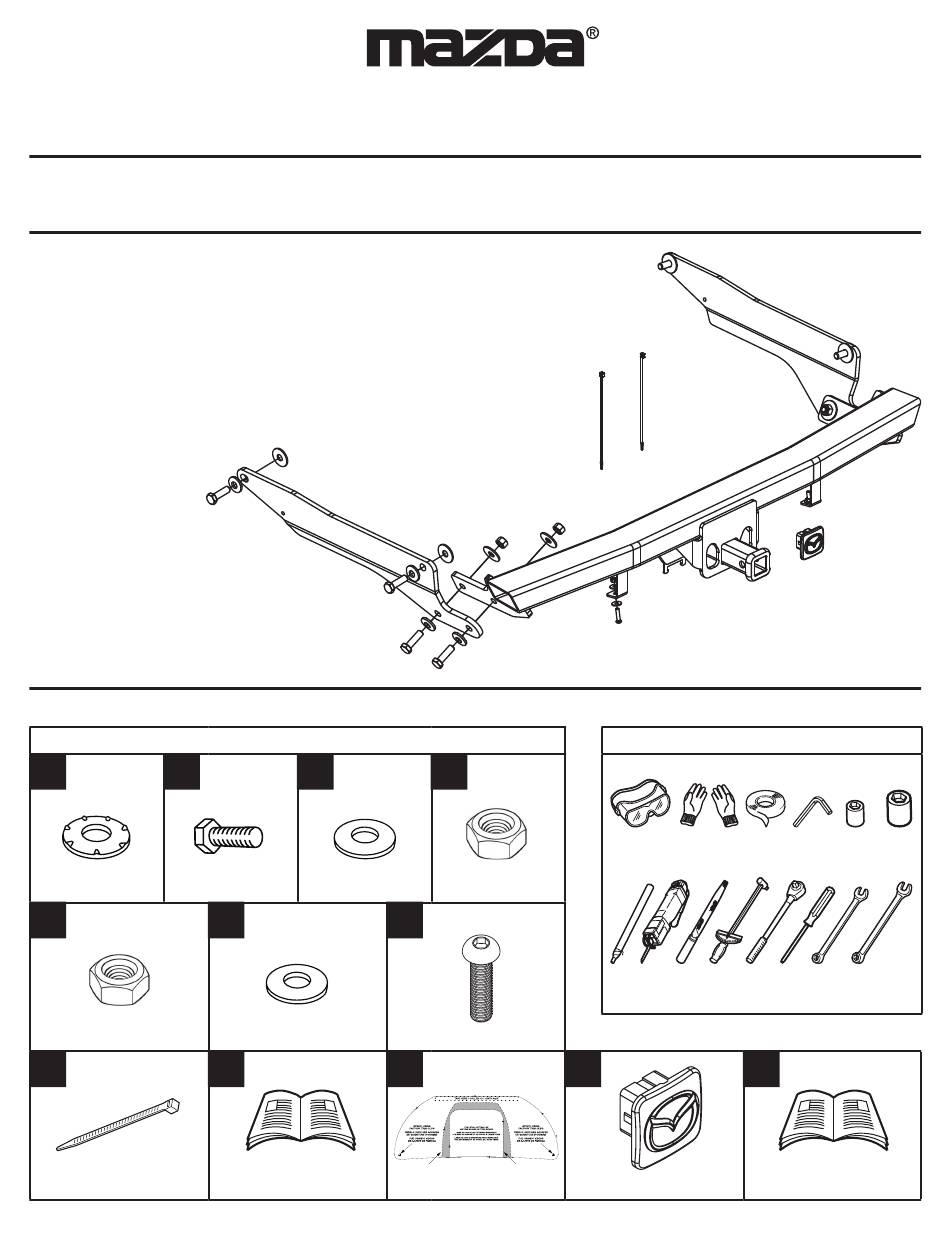

  • Page 1 GENUINE ACCESSORIES INSTALLATION INSTRUCTIONS PART NUMBER: APPLICABLE MODELS: 2016 > CX-9 0000-8E-N31 TRAILER HITCH KIT CLASS II PACKAGE CONTENTS: WARNING: ALTHOUGH THIS HITCH IS DESIGNED TO SAFELY TOW IT'S RATED LOAD, IT IS RECOMMENDED THAT YOU CONSULT YOUR VEHICLE OWNERS MANUAL FOR FURTHER RECOMMENDATIONS OR LIMITATIONS.
  • Page 2 E) Use saw to cut rear fascia on 'TOW HITCH CUTTING LINE'. F) Use file to remove rough edges. G) Remove plastic fasteners which were installed to hold the trim template and discard. 02/24/2016 2 of 8 0000-8E-N31 Rev G...
  • Page 3 Passenger side frame rail Weldnut locations Location to remove harness on outside of driver side frame rail Weldnut for driver side mounting plate with is towards the front of the vehicle 02/24/2016 3 of 8 0000-8E-N31 Rev G...
  • Page 4 E) Place plates into position and loosely fasten to weldnuts. Note: Be sure both plates are positioned so they angle towards the center of the vehicle. Plates angle inward Rear of vehicle A - Conical Washer 02/24/2016 4 of 8 0000-8E-N31 Rev G...
  • Page 5 Place one M12 flat washer (ITEM C) onto each bolt and fasten each using M12 nuts (ITEM D). A- Conical washer C- Flat washer TORQUE ALL HARDWARE TOOLS: TORQUE WRENCH, 19MM SOCKET A) Torque all eight bolts to 86.2 ft. lbs. (107 N.m.) 19MM 02/24/2016 5 of 8 0000-8E-N31 Rev G...
  • Page 6 8" cable tie (ITEM H). Note: This may need to be done on both sides depending oh the vehicle trim. B) Clip excess cable tie. PLACE THE USER GUIDE IN THE GLOVE BOX 02/24/2016 6 of 8 0000-8E-N31 Rev G...
  • Page 7 INSPECTION: TRAILER HITCH KIT 0000-8E-N31 Inspection intended with trailer hitch installed. Inspect the installed / reinstalled parts for the following items: Inspection Items ( O ) Inspection Parts Installation, Clearance Scratches tightening and Operation check and fit and dirt engagement...
