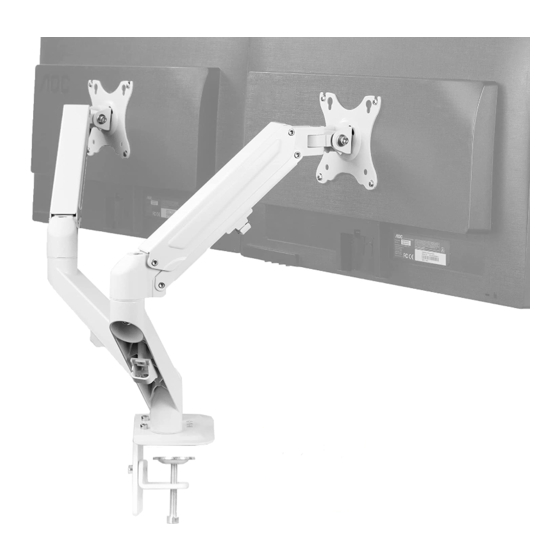

White Pneumatic Arm Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V102OW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102ow
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Related Manuals for Vivo STAND-V102OW
Summary of Contents for Vivo STAND-V102OW
- Page 1 White Pneumatic Arm Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102OW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102ow help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Assembly Steps
WARNING! ASSEMBLY STEPS If you do not understand these directions, or if you have any doubts about the safety of the STEP 1 installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product OPTION A: Desk Clamp Install for any purpose that is not explicitly specified in this manual. - Page 3 STEP 2 STEP 4 While holding arm (A) in the closed position, cut the shipping tie from each arm. Attach two bolts (M-A or M-B) and washers (M-C) to top mounting holes of each monitor, making sure to leave 1/8” (3mm) of threads exposed. 1.
- Page 4 STEP 7 STEP 6 Use cable clips on arms (A) to organize cables. Adjust gas spring tension in arms (A) and monitor bracket tilt support using 5mm Allen key (H). Turn gas spring tension adjustment screw counter-clockwise to increase support, and clockwise to decrease support.
- Page 5 - 92% within < 3hr : < 15 M www.vivo-us.com AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
