DIGITAL MANAGER OPTION SWITCH SETTINGS

(Switches are located on bottom of Digital Manager)

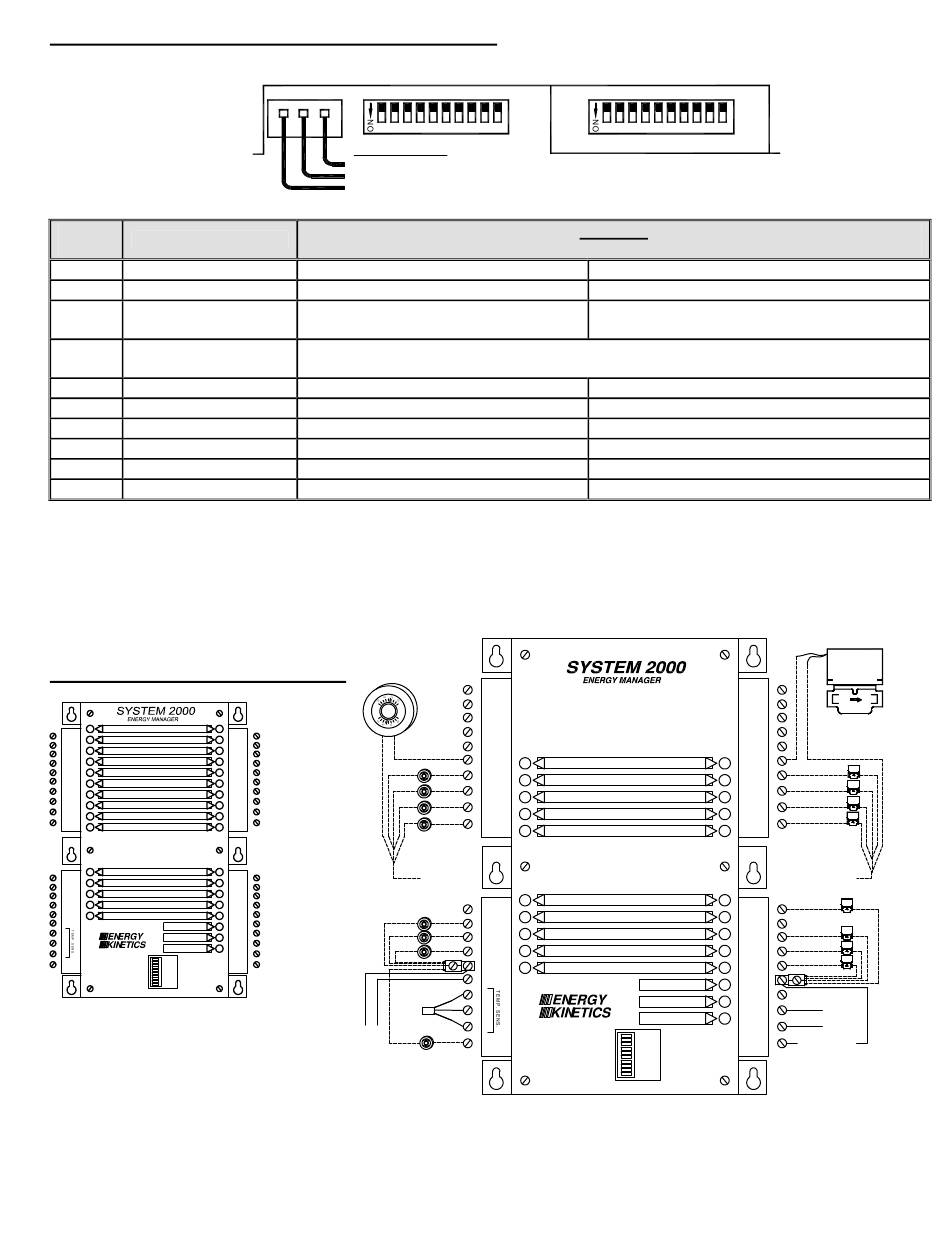

Figure 4B
Option
Description
Switch
1 Low Return Temp.
2 Inducer/Chimney
3 Inducer Purge Temp.
4 Inducer Purge Time
5 Zone 1 Purge Time
6 Zone 2 Purge Time
7 Zone 3 Purge Time
8 Zone 4 Purge Time
9 High Return Temp.
10 Hot Water Priority
For a typical oil fired boiler with a sound chimney, supplying domestic hot water and properly sized heat zones, all
option switch settings will be "OFF". Turn switch 1 on to provide increased condensing protection (recommended for gas
fired boilers). For sidewall vent applications, turn switch 2 on and then usually leave switches 3 and 4 off. Switches 5
through 8 are usually off, but can be turned on if the heat zone tends to overheat during energy recovery. Switch 9 is
usually off, but can be turned on to supply higher temperature water to under-radiated heating zones or during very cold
weather. Switch 10 is usually off, but when turned on the Manager will close heat zones 1 through 4 during a hot water
call for up to 25 minutes.
