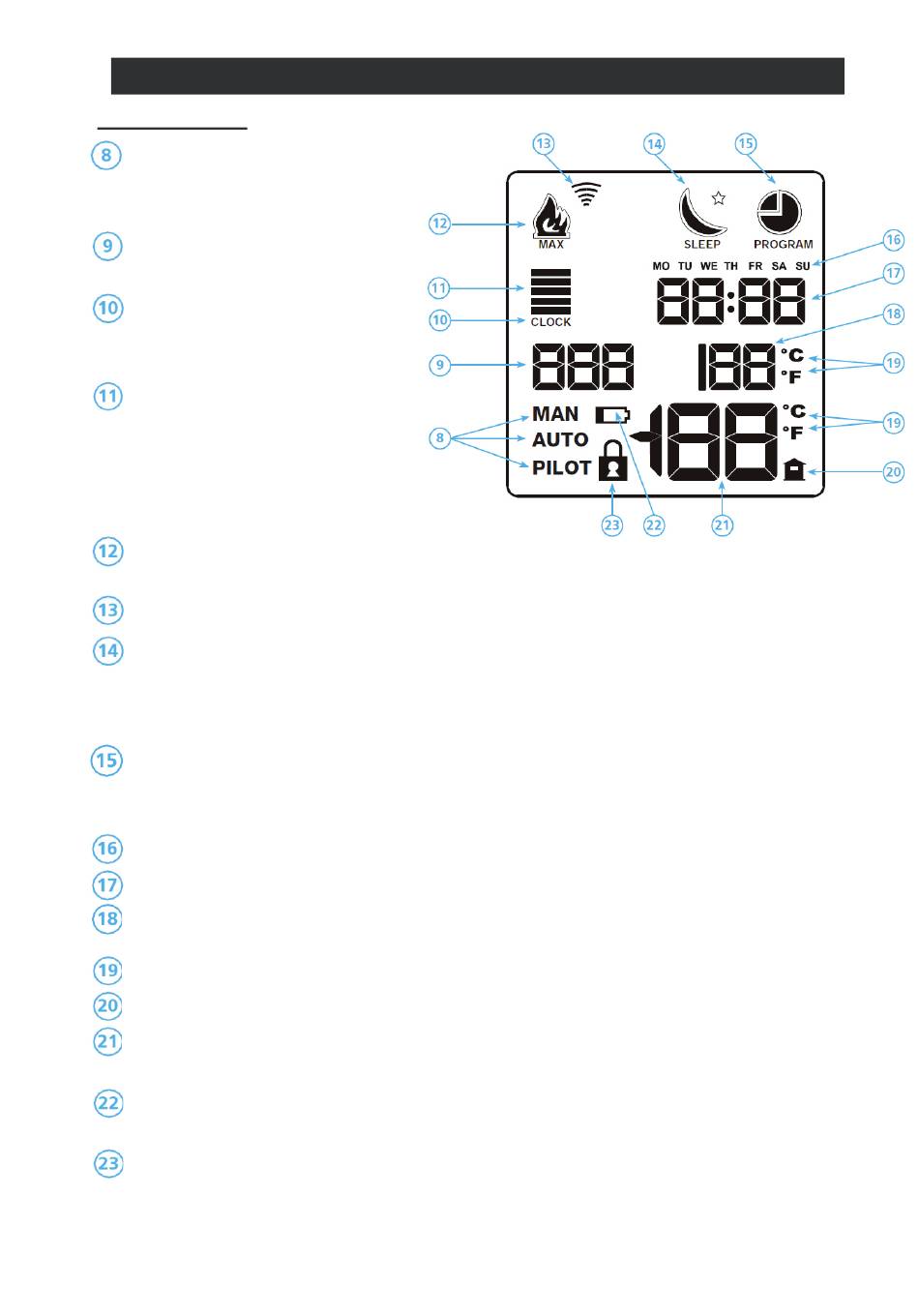

LCD DISPLAY
Functioning mode symbol
·
(MANUAL-THERMOSTATIC –
PILOT)
Digits identifying the weekly
·
TIMER program currently selected.
Clock setting symbol. When this
·
symbol appears, you can adjust the
clock setting displayed by the digits.
Flame power bars: 1 bar = level 1, 2
·
bar = level 3, 3 bar = level 3, 4 bar
= level 4. 5 bar = maximum level.
These bars only appear in manual
mode.
Flame symbol, indicating
·
the current flame power. If flame power is at level 5, the MAX message appears.
Symbol for data transmission
·
SLEEP function symbol. If this symbol does not appear, the SLEEP function is not active. If
·
only the outline of the symbol appears, the SLEEP function is active, meaning that the
appliance will switch off at the end of the countdown period set by the user and shown by sym-
bol A solid black symbol indicated that you are in the SLEEP setting menu.
TIMER symbol. If this symbol does not appear, the TIMER is not active. If only the outline of
·
the symbol appears, the TIMER is active. A solid black symbol indicated that your are in the
TIMER setting menu.
Symbols indicating the current day.
·
Internal clock. The clock functions as a countdown when the SLEEP function is selected.
·
The temperature set by the user, that the appliance must achieve in AUTOMATIC mode. This
·
symbol does not appear in MANUAL mode.
Selectable unit of temperature measurement (Celsius—Fahrenheit).
·
Symbol identifying room temperature measured by the built in sensor.
·
The temperature currently measured by the remote controls built in sensor from the room
·
around the remote control.
Low battery symbol. When this symbol disappears completely without flashing, the batteries
·
must be replaced.
Keypad lock symbol (lock function prevents accidental operation of the buttons.
·
