INSTALLATION INSTRUCTIONS

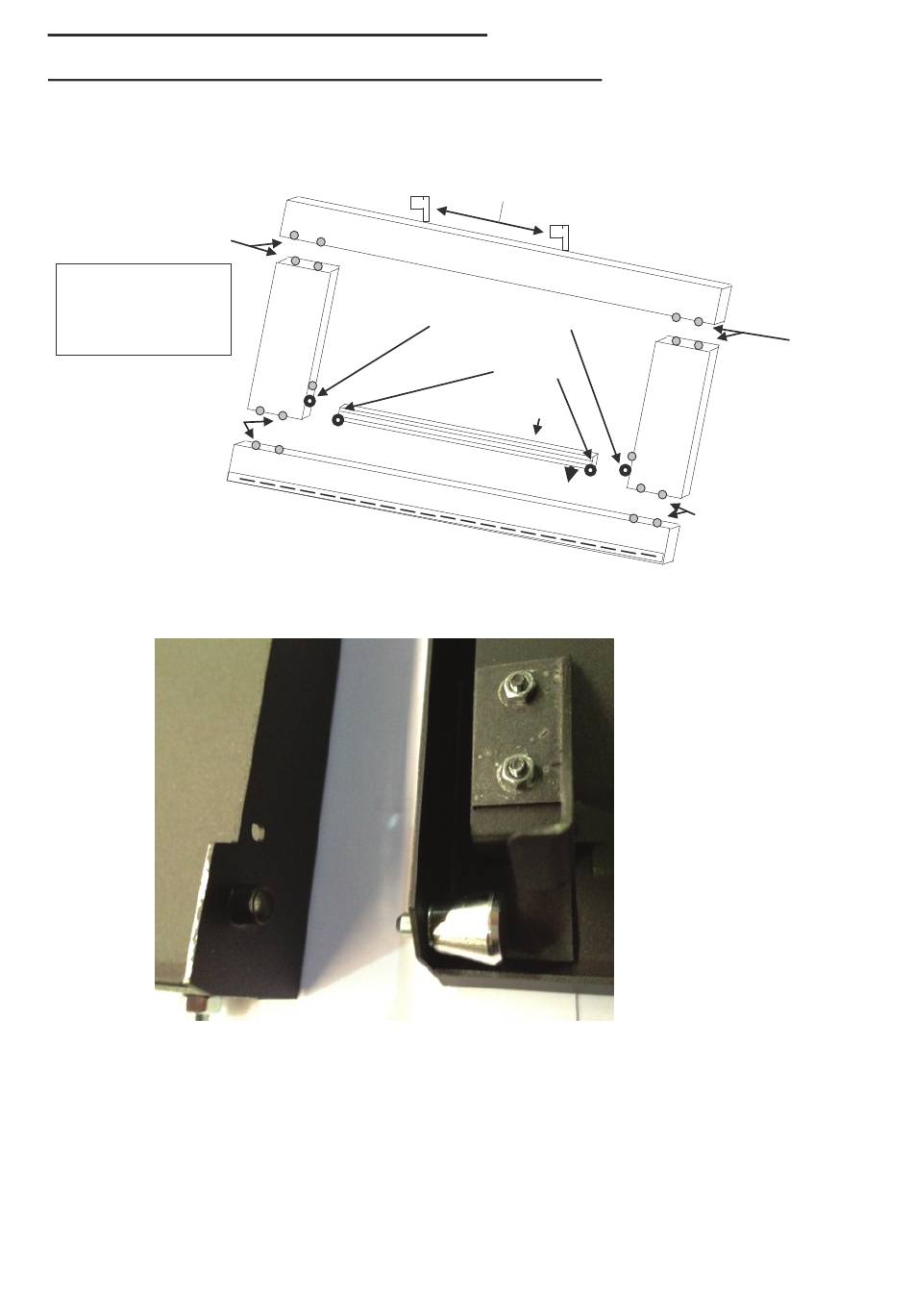

Bolted surround / Landscape surround - Assembly
Fit 2x M5x8+M5 Nut
Note: when fitting side
panels, keep them to the
outside as much as
possible.
Left side panel
Fit 2x M5x8+M5 Nut
Note: It is easier to fit the surround on the heater if it is protruding from the wall by approximately
100mm then push the heater back into place.
Note: Assemble the four piece's of the surround together first excluding the bottom door flap before
fitting it to the heater.
Hook Tabs
Plunger Receiver's
Plunges
Bottom Door Flap
Door Stop Tab
Bottom
19
Top
Fit 2x M5x8+M5
Right side panel
Fit 2x M5x8+M5 Nut
Nut
