INSTALLATION INSTRUCTIONS
The gas connection is 1/2" BSP supplied in heater.
GAS SUPPLY LINE TO HEATER
a) Remove the 2 screws on top L/H front side panel and lift out side panel.
b) Remove rubber grommet from back panel of heater and insert 1/2" copper gas
supply line through the back panel of heater.
c) Connect gas supply line to flexible gas hose. Ensure that flexible gas hose is not
kinked after fitting gas supply line.
d) After gas supply line has been brought through from rear of heater, place rubber
grommet supplied over gas line and insert into back panel.

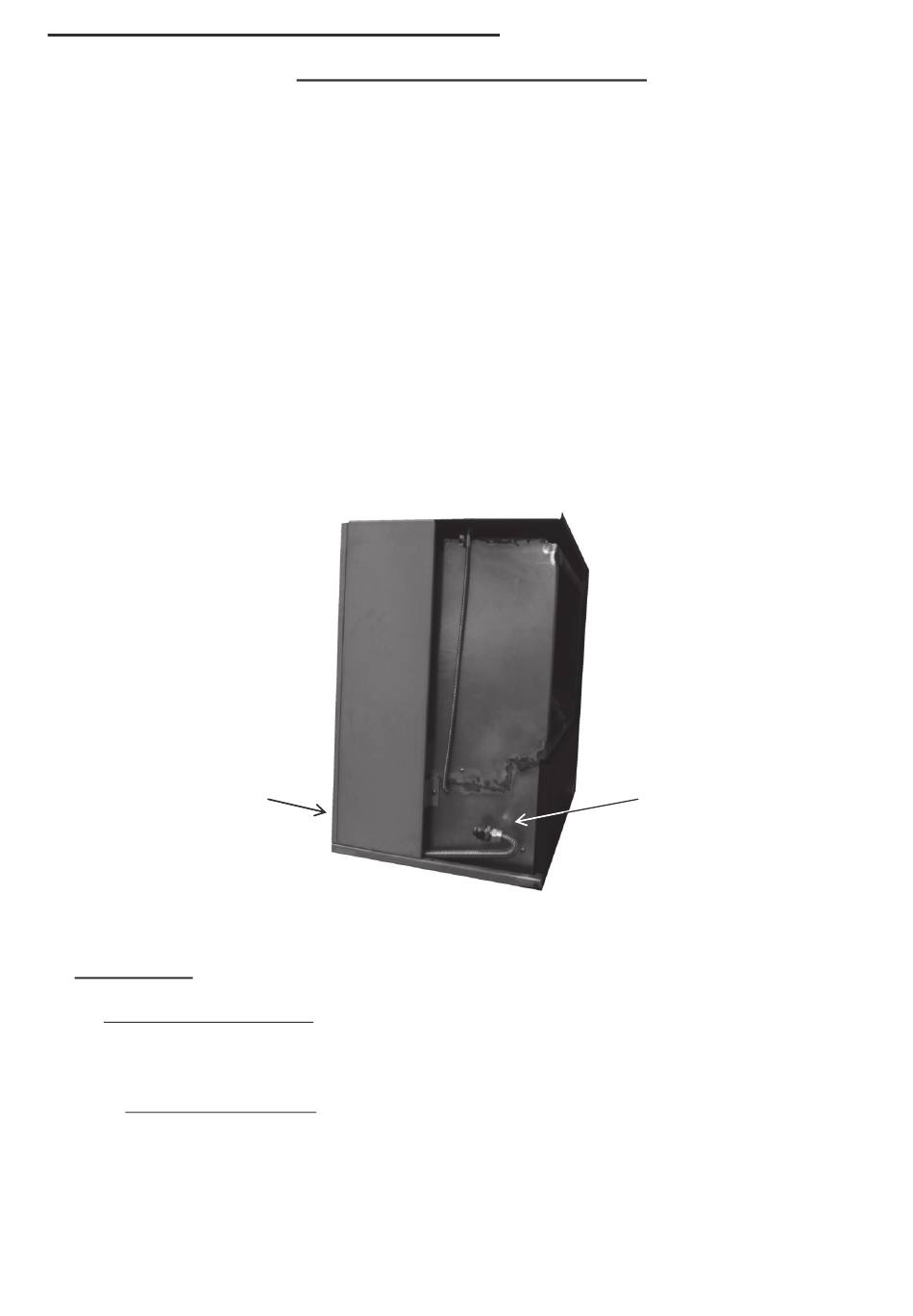

Gas Line Exit Point
IMPORTANT
Note: The copper gas supply line to the heater must be installed under conditions which will allow
for easy removal of the heater from its location for servicing of the heater. F or fireplace insert
installations, incorporate either a copper loop into the supply line or flexible hose being used for
the gas supply to the heater to allow for easy removal of the appliance.
Note: Under no circumstances should the gas supply line to the appliance be installed under
conditions, which would not allow for easy removal of the appliance to carry out routine
inspection and service to the appliance.
GAS CONNECTION (Line Supply)
11
Connection Point stays in
this approximate position
