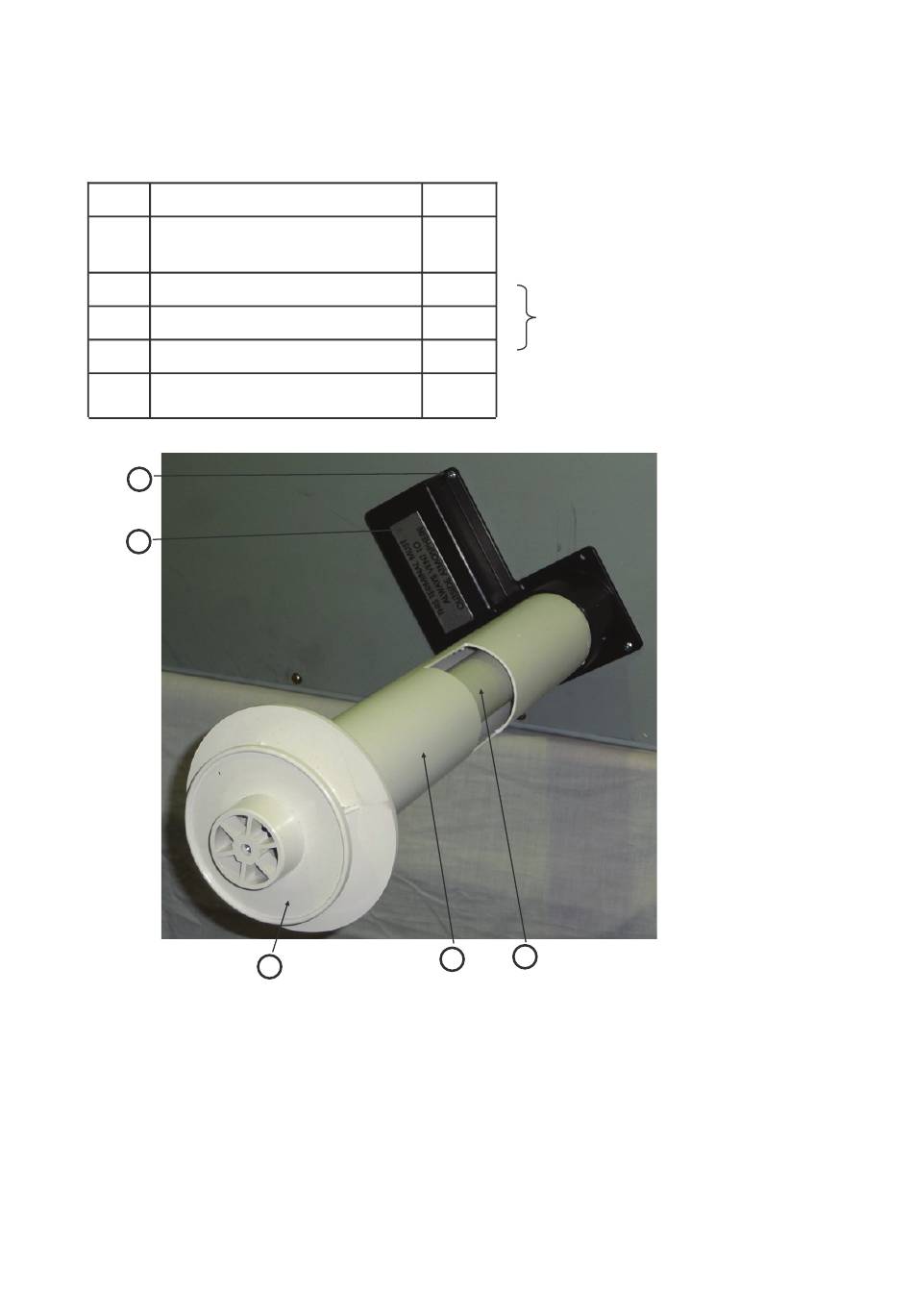

CO-AXIAL FLUE KIT FOR ARCHER GAS LOG SPACE HEATER
For applications refer page 31 and page 32 of this Installation Manual.
No Description
1 Co-Axial Air inlet & Exhaust -
Manifold Starter
2 40mm ø PVC Pipe
3 65mm ø PVC Pipe
4 PCV Co-Axial Cowl
Use 9 Use 9 self tapping screws provided
5
with assembly 4mm ø x 15mm long.
5
1
Note: When connecting 40mm ø and 65mm ø flue pipe to Item 1 co-axial manifold starter
and Item 4 co-axial cowl, do not glue flue pipe connections to allow for removal of flue pipe
for servicing of the heater.
Note: When connecting 40mm pipe at adaptor end and at cowl end, ensure that 40mm pipe is
long enough to fit in securely at both ends. Failure to do so will cause the flames to go
out and the heater will operate incorrectly.
400mm
400mm
4
Qty
1
Approx.
1
2
3
25
