INSTALLATION INSTRUCTIONS

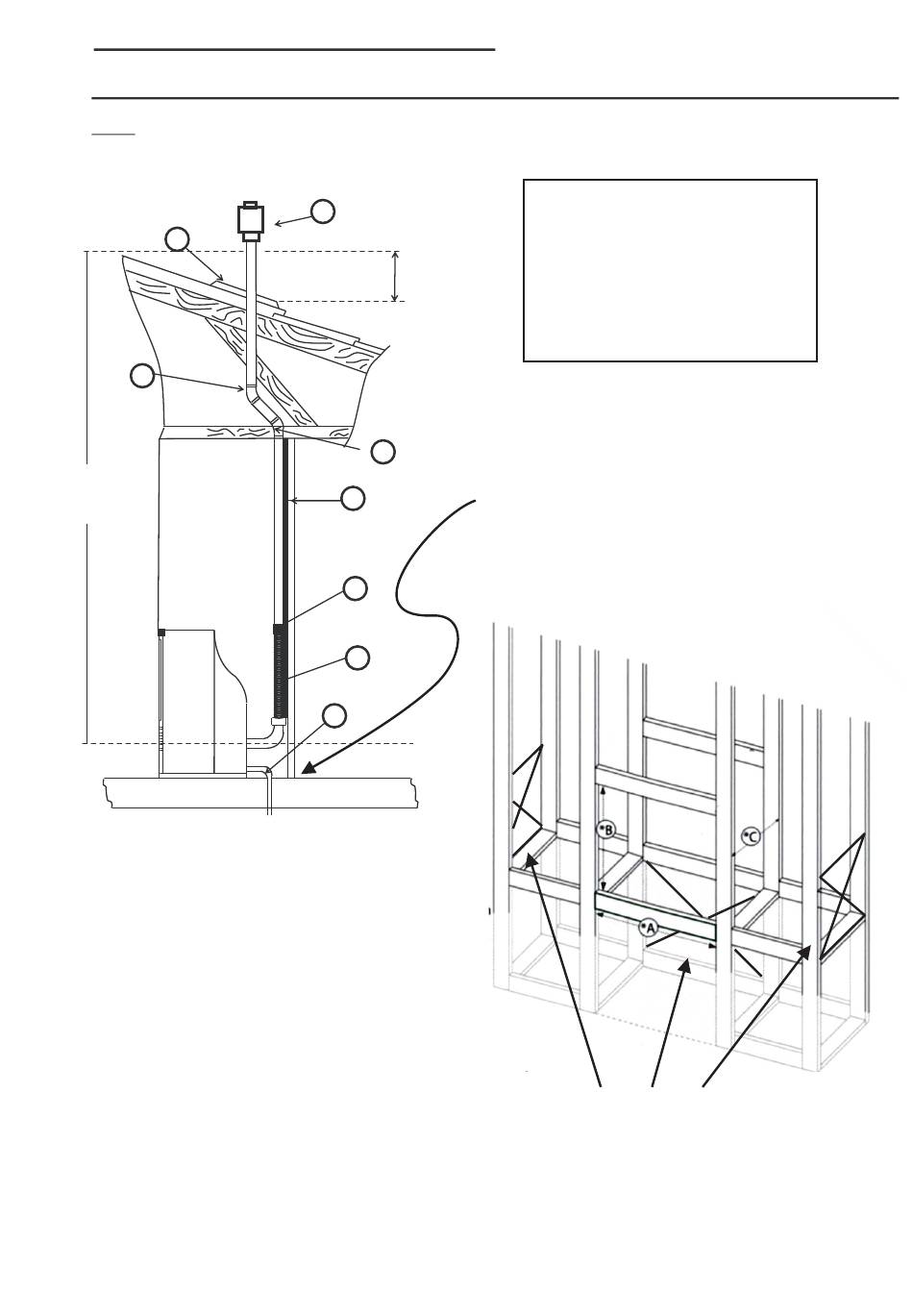

SINGLE FLUE INSTALLATION FOR BUILDING INTO TIMBER STUD WALL
Note: Heater must be installed so it is possible to remove it easily for servicing.
2
6
5100mm
Maximum
INTERNAL WALL APPLICATION
1. Cowl
2. Flashing
3. ½" BSP Gas Connection (Flexible)
4. 40mm PVC Pipe Zero Clearance
5. 45° PVC Elbow
6. 45° PVC Elbow
7. Flexible PVC Pipe
8. 40mm PVC Coupling
1
500mm
5
Must be installed at a minimum of
30mm above floor level on concrete
4
floors and minimum of 500mm above
floor level on timber floors.
8
7
3
27
The heater MUST NOT be
installed in a manner which
does not allow for removal
of the heater to carry out
servicing of heat exchanger
and flue fan motor.
Access Panel
Note: When building heater into a cavity,
side access or rear access must be
provided in the frame work to obtain
access to the flue connection and to the
gas supply line.
