INSTALLATION INSTRUCTIONS
COAXIAL FLUE INSTALLATION FOR BUILDING INTO TIMBER STUD WALL
Note: Heater must be installed so it is possible to remove it easily for servicing.
INSERT MODEL
External Wall Application
Coaxial Flue

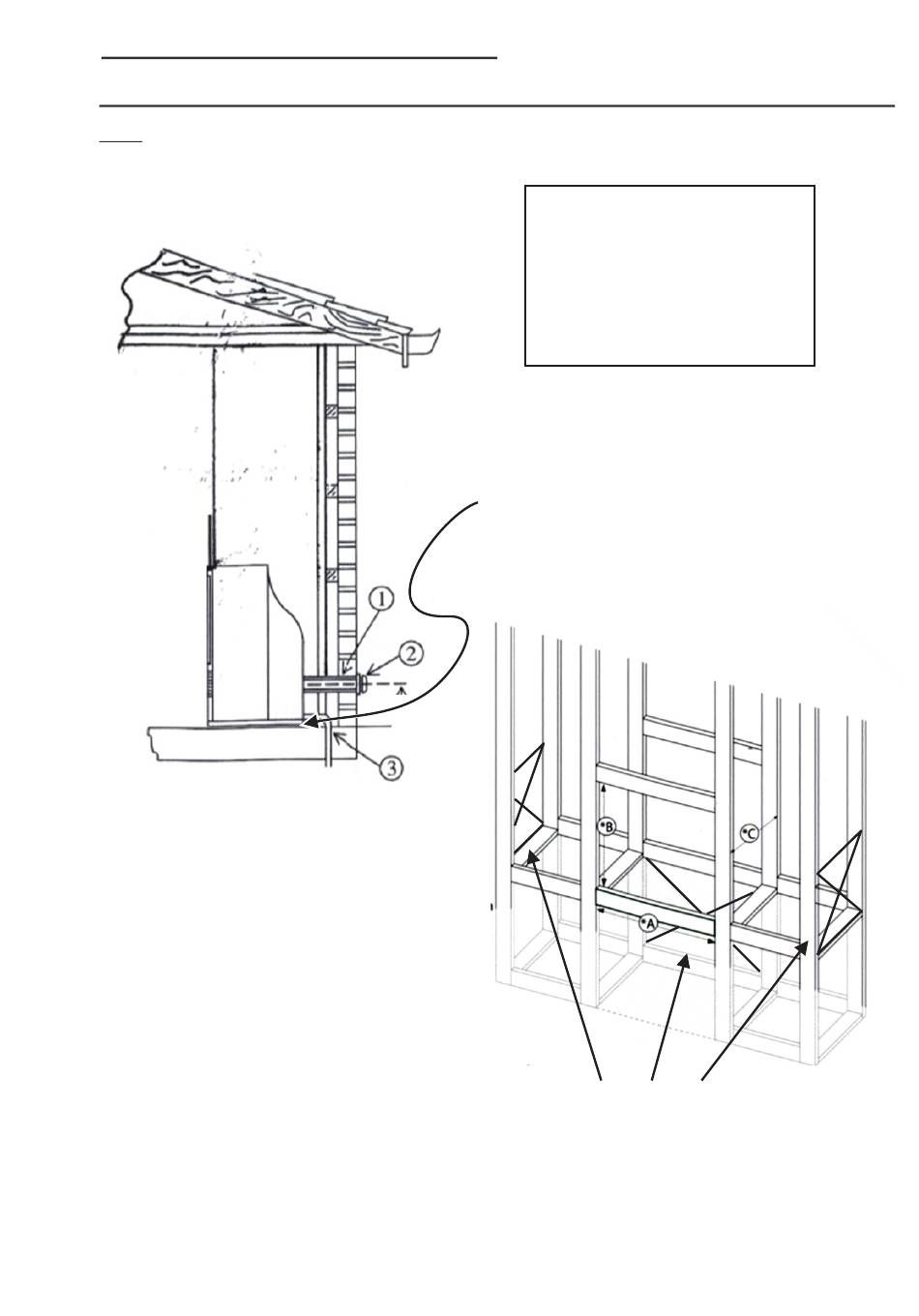

EXTERNAL WALL APPLICATION
1. Co– Axial Flue Pipe up to 1mtr long
2. Co– Axial Cowl
3. 1/2" BSP Gas Connection (Flexible)
Note: Do not use PVC cement to seal
flue pipe connector, to allow for
removal of flue pipe. Incorporate loop
in gas connection or use flexible hose
for gas connection to allow removing
of appliance from structure.
The heater MUST NOT be
installed in a manner which
does not allow for removal
of the heater to carry out
servicing of heat exchanger
and flue fan motor.
Must be installed at a minimum of
30mm above floor level on concrete
floors and minimum of 500mm above
floor level on timber floors.
Access Panel
Note: When building heater into a cavity,
side access or rear access must be
provided in the frame work to obtain
access to the flue connection and to the
gas supply line.
