LCD Brightness
Allows adjustment to the LCD's brightness; select either High , Med , Low or Off for brightness level. The default
setting for LCD backlight brightness is High .

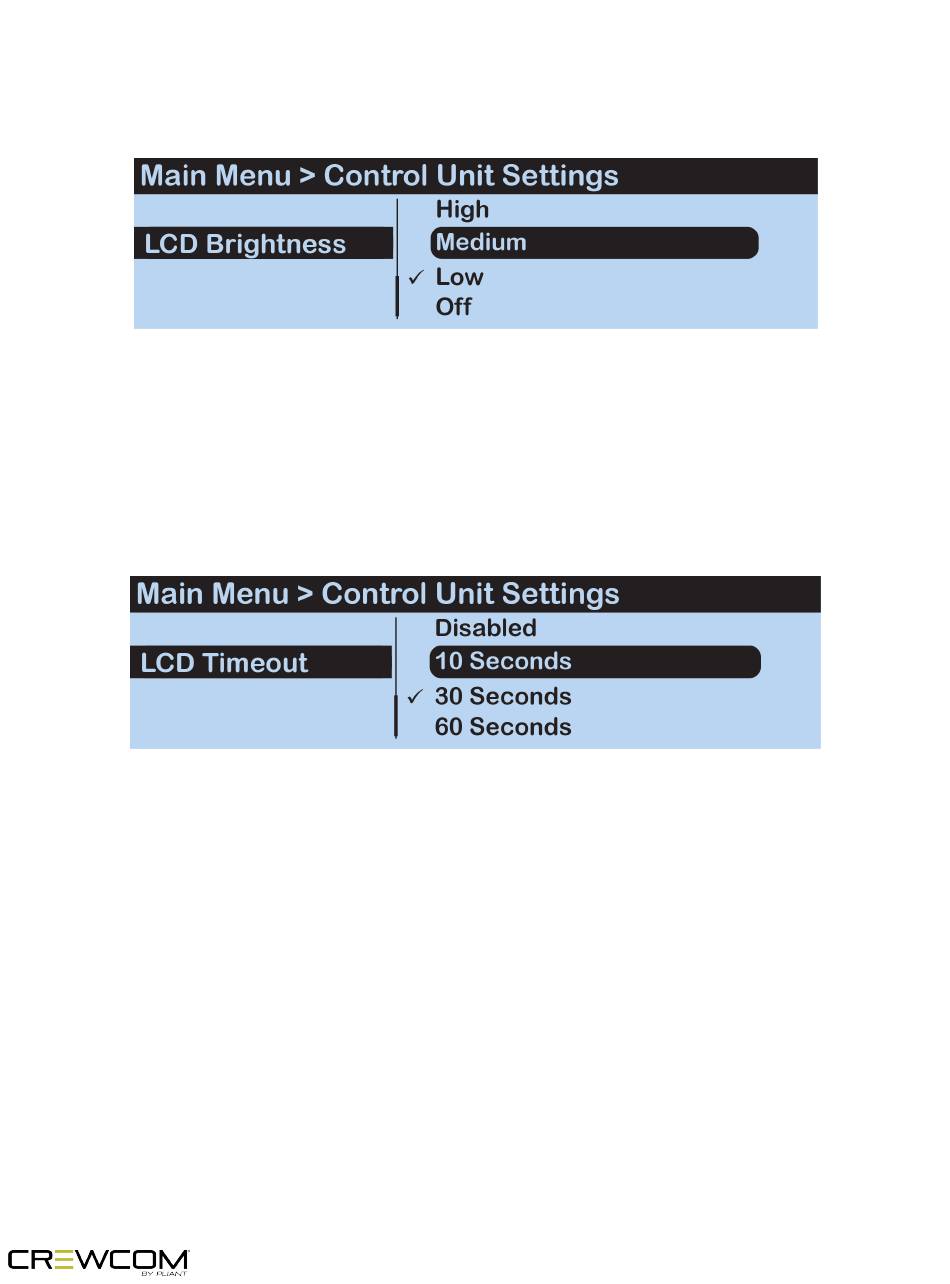

Figure 21 Edit Control Unit LCD Backlight Brightnes
LCD Timeout
Enables users to set the amount of time the LCD's backlight will stay lit after engaging the Control Unit's interface.
Select either 60 , 30 , or 10 seconds or disable the backlight timer entirely by selecting Disabled . The default setting
for LCD backlight time out is Disabled .
Figure 22 Edit Control Unit LCD Backlight Time Out
Operation - 48
