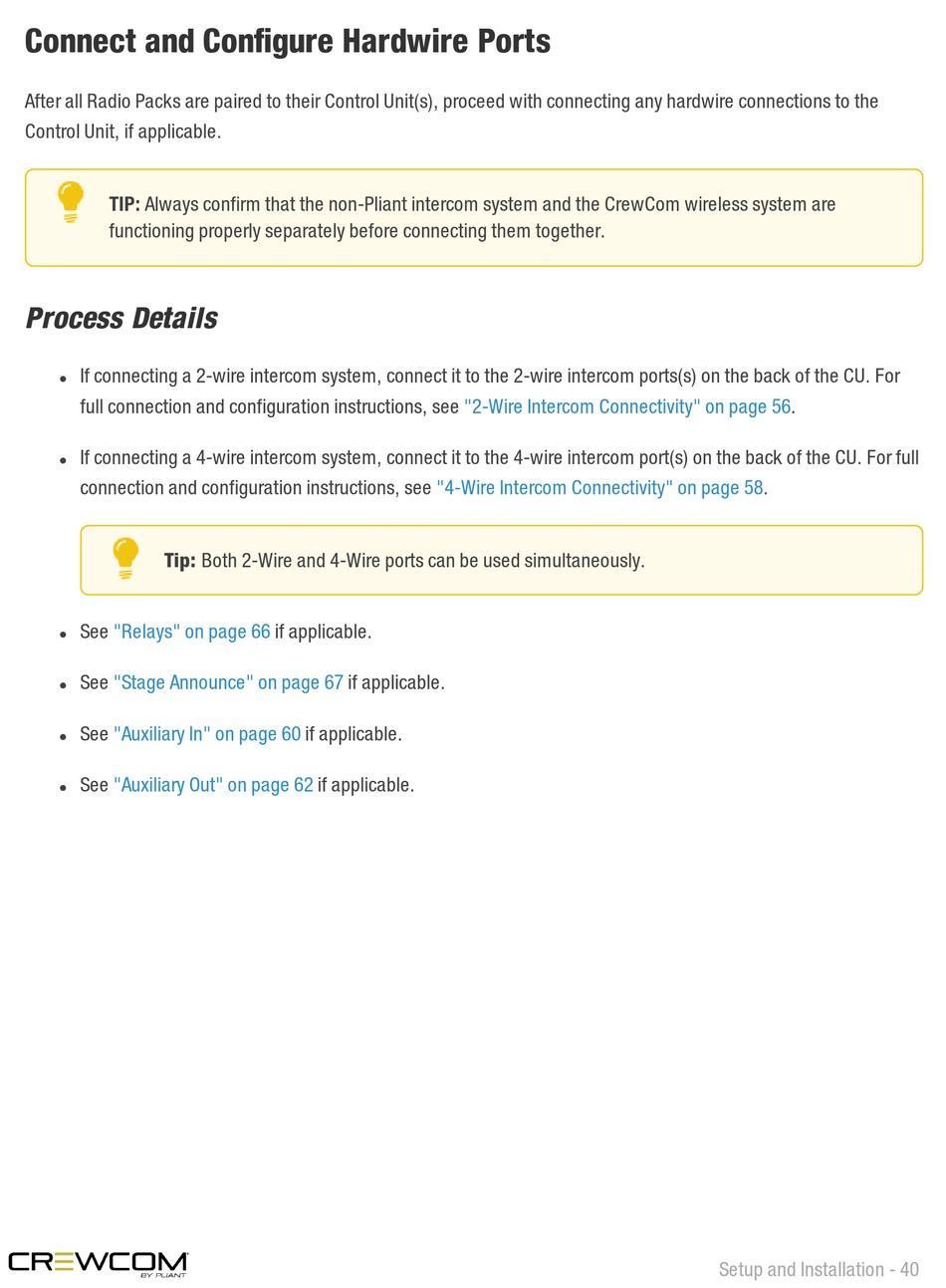

Connect and Configure Hardwire Ports

After all Radio Packs are paired to their Control Unit(s), proceed with connecting any hardwire connections to the
Control Unit, if applicable.
TIP: Always confirm that the non-Pliant intercom system and the CrewCom wireless system are
functioning properly separately before connecting them together.

Process Details

If connecting a 2-wire intercom system, connect it to the 2-wire intercom ports(s) on the back of the CU. For
l
full connection and configuration instructions, see
If connecting a 4-wire intercom system, connect it to the 4-wire intercom port(s) on the back of the CU. For full
l
connection and configuration instructions, see
Tip: Both 2-Wire and 4-Wire ports can be used simultaneously.
See "Relays" on page 66
l
See "Stage Announce" on page 67
l
See "Auxiliary In" on page 60
l
See "Auxiliary Out" on page 62
l
"4-Wire Intercom Connectivity" on
if applicable.
if applicable.
if applicable.
if applicable.
"2-Wire Intercom Connectivity" on page 56.
page 58.
Setup and Installation - 40
