6. Once the configuration file has finished loading, the Master CU will briefly display a "CCF Upload
Complete" message along with a configuration summary.
7. Power down the Master Control Unit when it displays the following message: "CCF Changed. Power down
Master CU for 10 seconds for configuration changes to take effect."
8. Remove your USB drive and power cycle the Master CU. Upon startup, the new configuration file will load and
be in use.
Uploading a CrewCom Configuration File via CrewWare
See the
CrewWare Manual

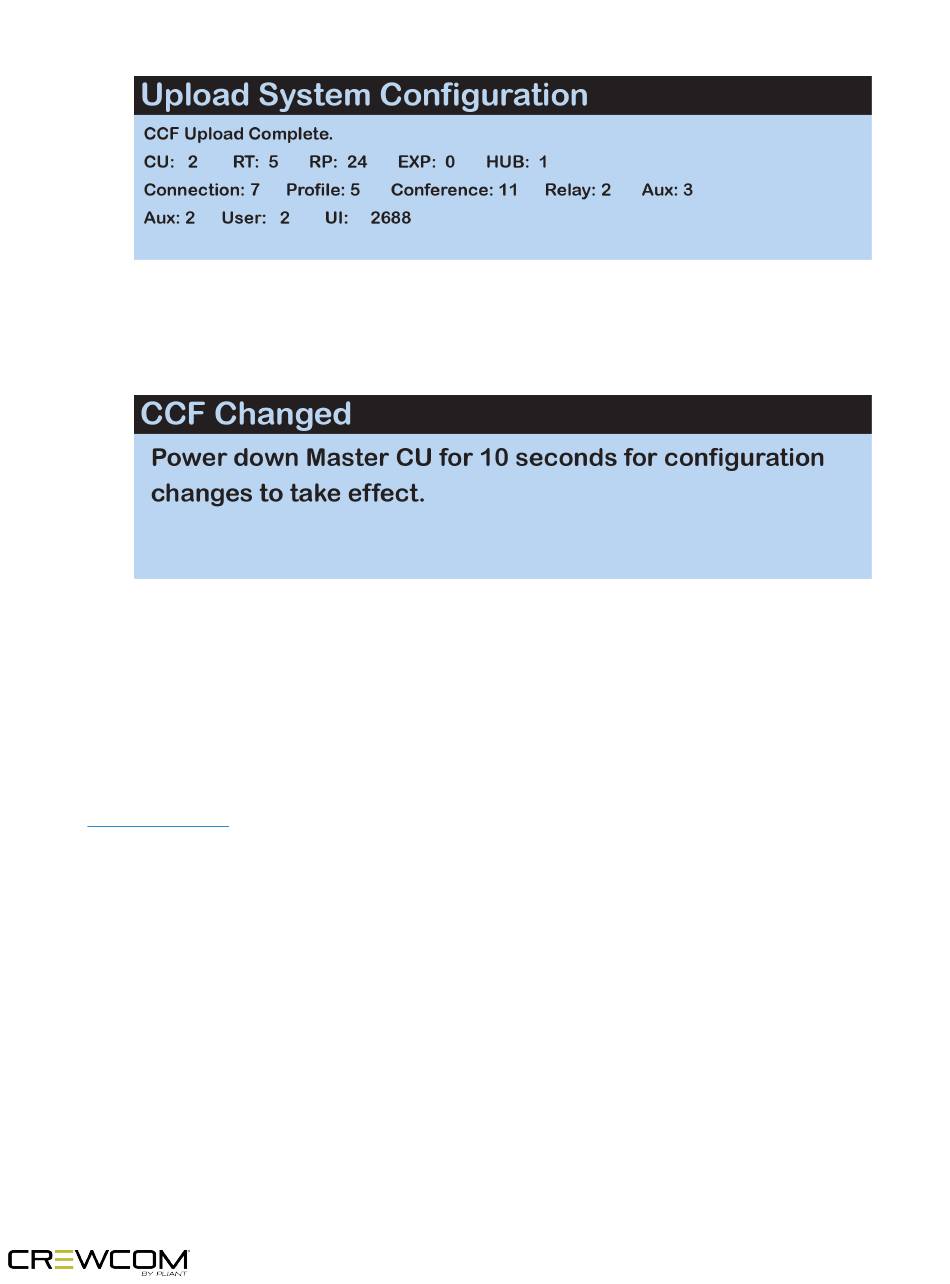

Figure 14 CU LCD Configuration File Summary Screen
Figure 15 CU LCD Power Down Prompt
for more information about this process.
Setup and Installation - 34
