Control Unit

The CrewCom Control Unit (CU) is a rack-mount device built to withstand the rigors of road use and rental
applications. It is the foundation for CrewNet. The CCU-44 is an 8-intercom-port CU with the ability to support (4) 2-
Wire and (4) 4-Wire ports simultaneously, providing eight intercom inputs/outputs. The CCU-22 is a 4-intercom-port
CU with the ability to support (2) 2-Wire and (2) 4-Wire ports simultaneously, providing four intercom inputs/outputs. A
separate Radio Transceiver (RT) is required for RF communications. The CU is capable of supporting all models of
CrewCom RTs at the same time (2.4GHz or 900MHz).

CCU-44 Front

A. Local Headset Connection: The front panel headset connector is a 4-PIN XLR male. Use the "Local" button
(letter I in the figure above) to adjust local headset settings from the CU. A compatible headset must be
provided by the user. See
B. Talk Button for Local Headset: The Talk button works in conjunction with the Local Headset Connection.
The Talk button enables or disables the microphone for the local headset. A white "TALK" LED will illuminate
when the mic is enabled. This button has an intelligent latching function: one short press will latch the talk on;
however, pressing and holding the talk button will cause the button to act as a momentary switch. (See
Headset" on page 70.)
C. Headset Volume Knob: Turning the Volume control adjusts the listening volume of the local headset.
D. Wired Intercom Access Button: When pressed, the Control Unit LCD displays the Wired Settings screen.
(See "Wired Settings" on

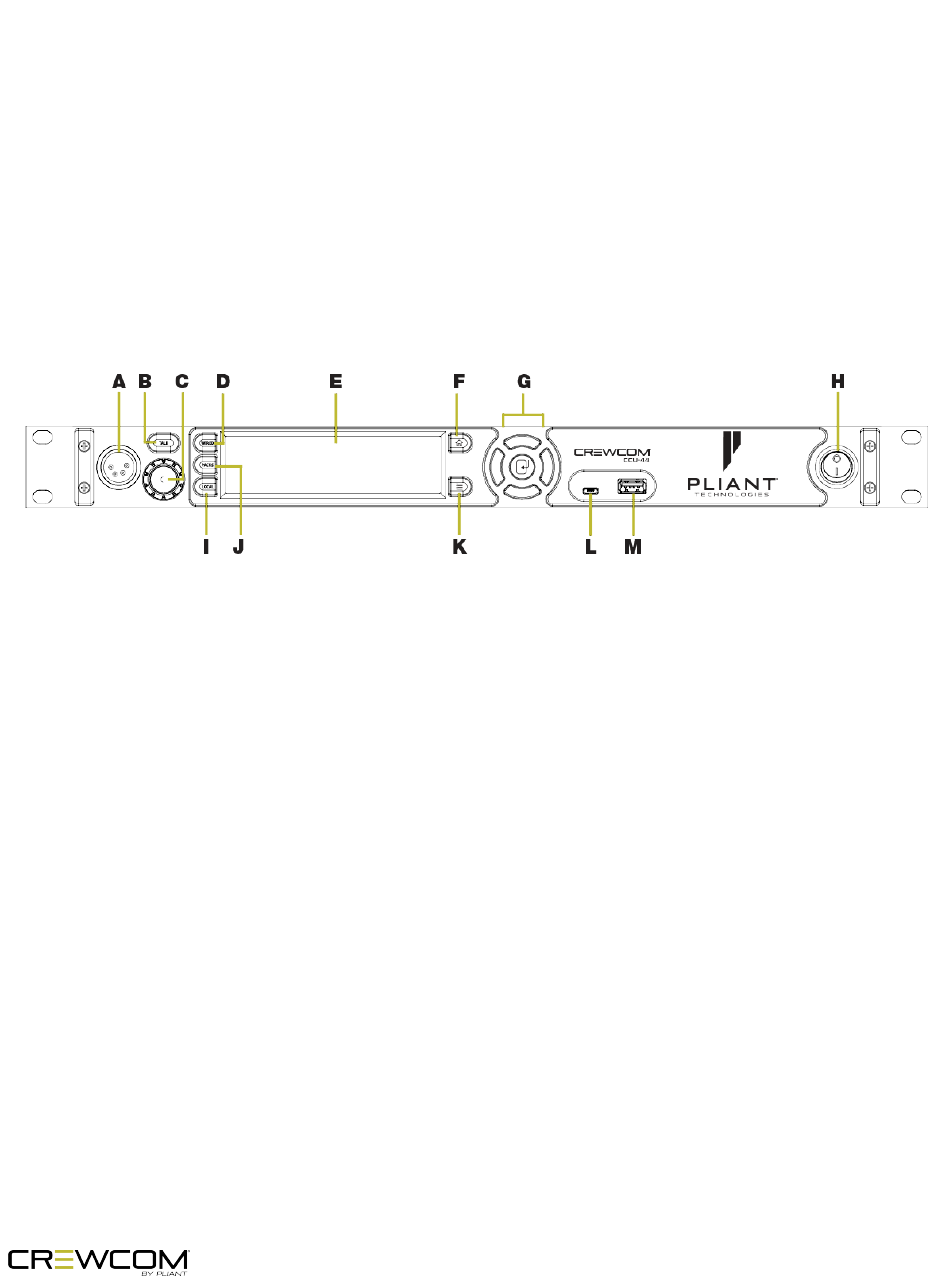

Figure 5 Control Unit Front
"Local Headset" on page 70
page 52.)
for connection pinout and headset wiring information.
"Local
Product Overview - 18
