Cortex Omega BPC-10 Owner's Manual

Bicep curl
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BPC-10 Bicep Curl
OWNER'S MANUAL
IMPORTANT!
Please read all instructions carefully before using this product.
Retain this manual for future reference.
The specifications of this product may vary slightly from the illustrations and are subject to change
without notice.
V.K007A20160812

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Omega BPC-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Cortex Omega BPC-10

Summary of Contents for Cortex Omega BPC-10

  • Page 1 BPC-10 Bicep Curl OWNER’S MANUAL IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice. V.K007A20160812...

  • Page 2: Warning, Safety & Maintenance

    WARNING, Safety & Maintenance Be sure that all users carefully read and understand all warning, safety and maintenance info on this Owner’s Manual or labels on the machine before each use. Failure to do so may result in death or serious injury. It is imperative that you retain this Owner’s Manual and be sure all warning labels are legible and intact.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. // est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise. Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement. Antes de comenzar cualquier programma de ejercicios, deberias tener un examen fisico con su doctor.
  • Page 4 PREPARATION Thank you for purchasing this equipment. This machine is part of our line of quality strength training machines, which lets you target specific muscle groups to achieve better muscle tone and overall body conditioning. To maximize your use of the equipment please study this Owner’s Manual thoroughly.

  • Page 5: Exploded Drawing

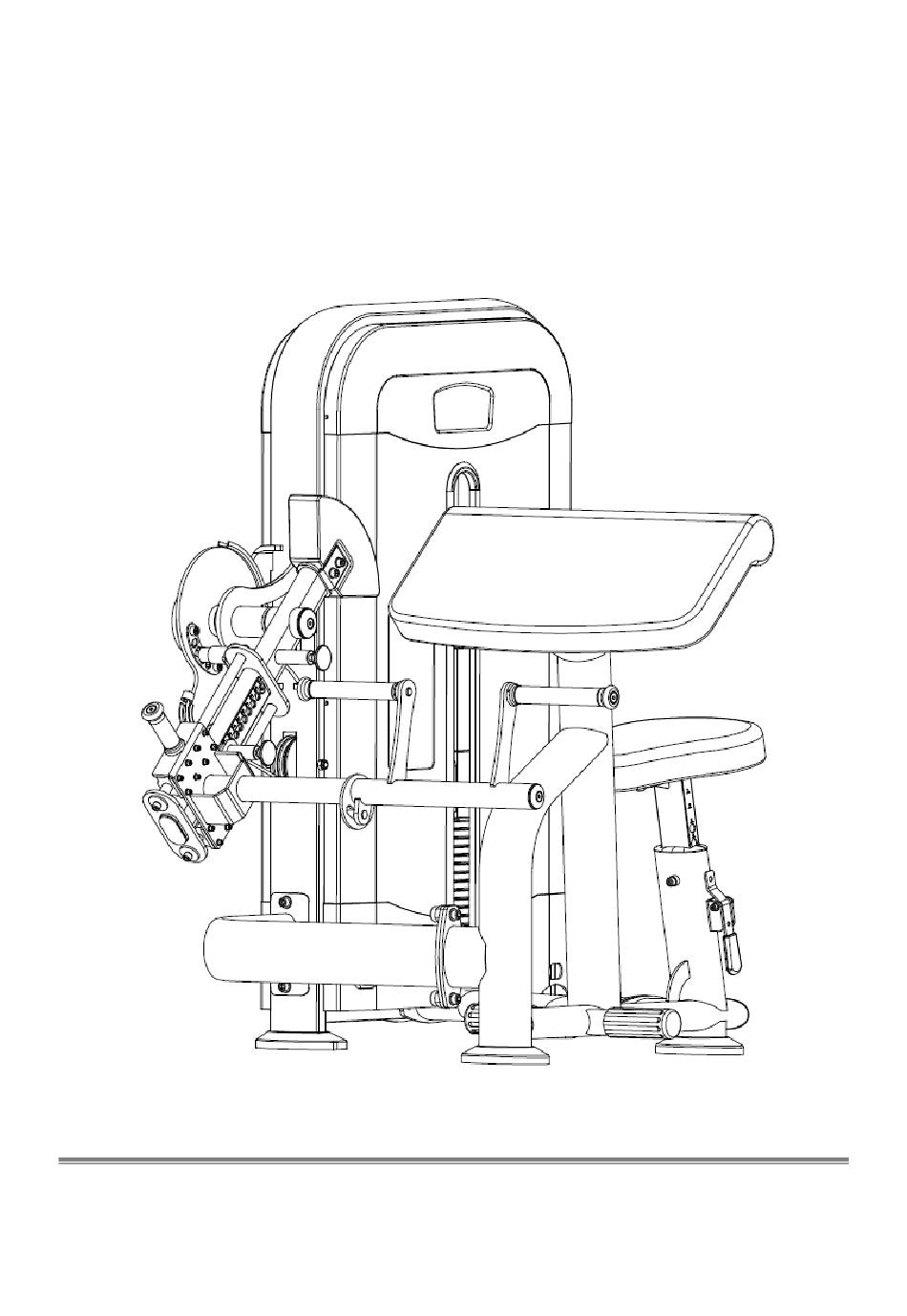

    Exploded Drawing - 4 -...
