Danfoss VTT Series Applications And Installation Manual page 44

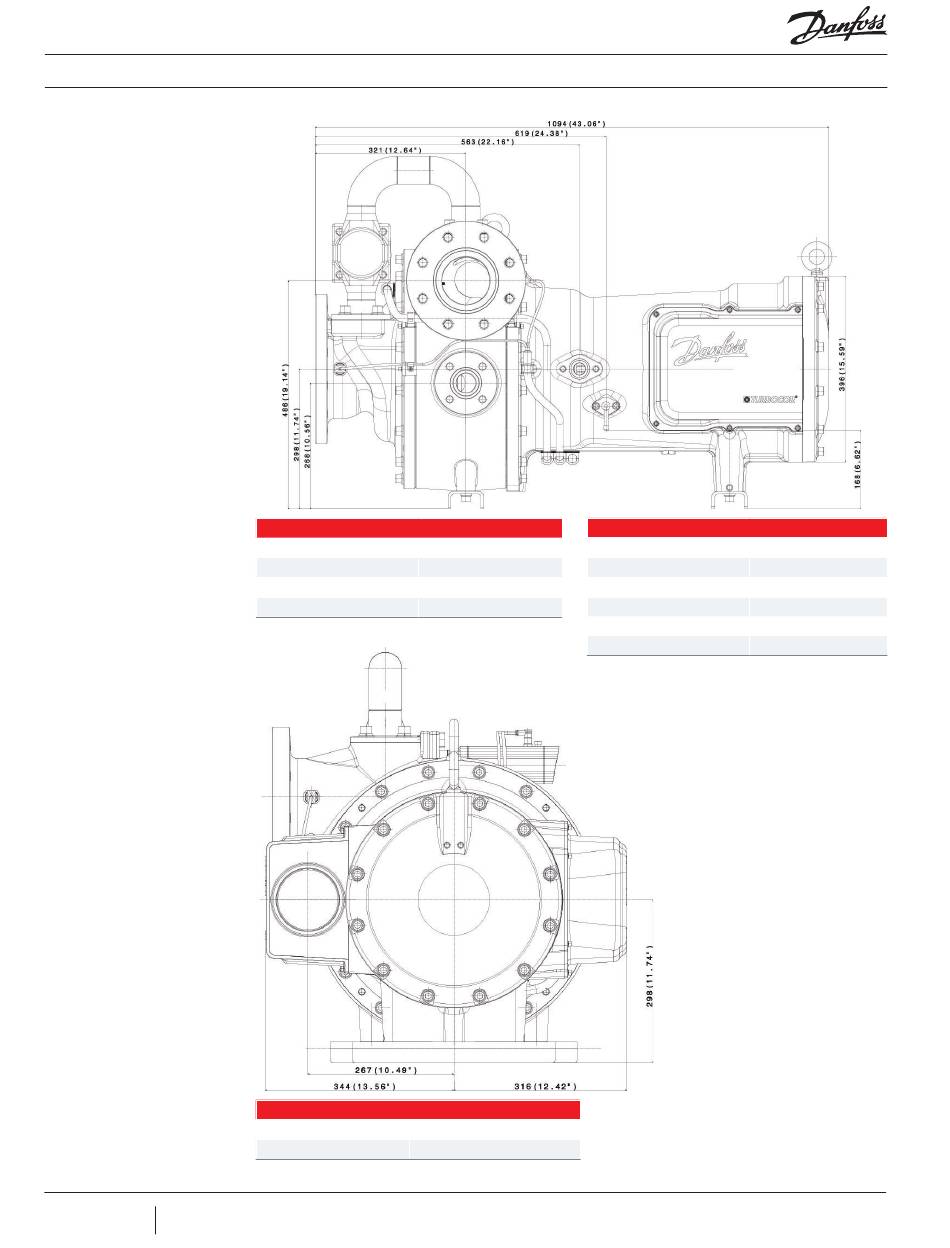

Figure 25
Right Side View
Figure 26
Rear View
Page 44 of 73
M-AI-VT-001-EN Rev.C.1
Physical Data of the VTT Compressor
Discharge Flange Details
Discharge Flange ANSI B16.5 Class #300
Number of Holes 8
Pitch Circle Diameter (PCD) 200.15 (7.87")
Tapped Holes M20 x 2.5
Conduit Details
Conduit Details Metalic Flexible
Conduit Access Hole 101 mm (04.0")
Economizer Flange Details
Economizer Flange ANSI B16.5 Class #300
Number of Holes 4
Pitch Circle Diameter (PCD) 98.55 (3-7/8")
Tapped Holes M16X2
Inlet Diameter Rev A-B 31.7mm (1-1/4")
Inlet Diameter Rev C 41.3mm (1-5/8")
