Drive Module External
Components

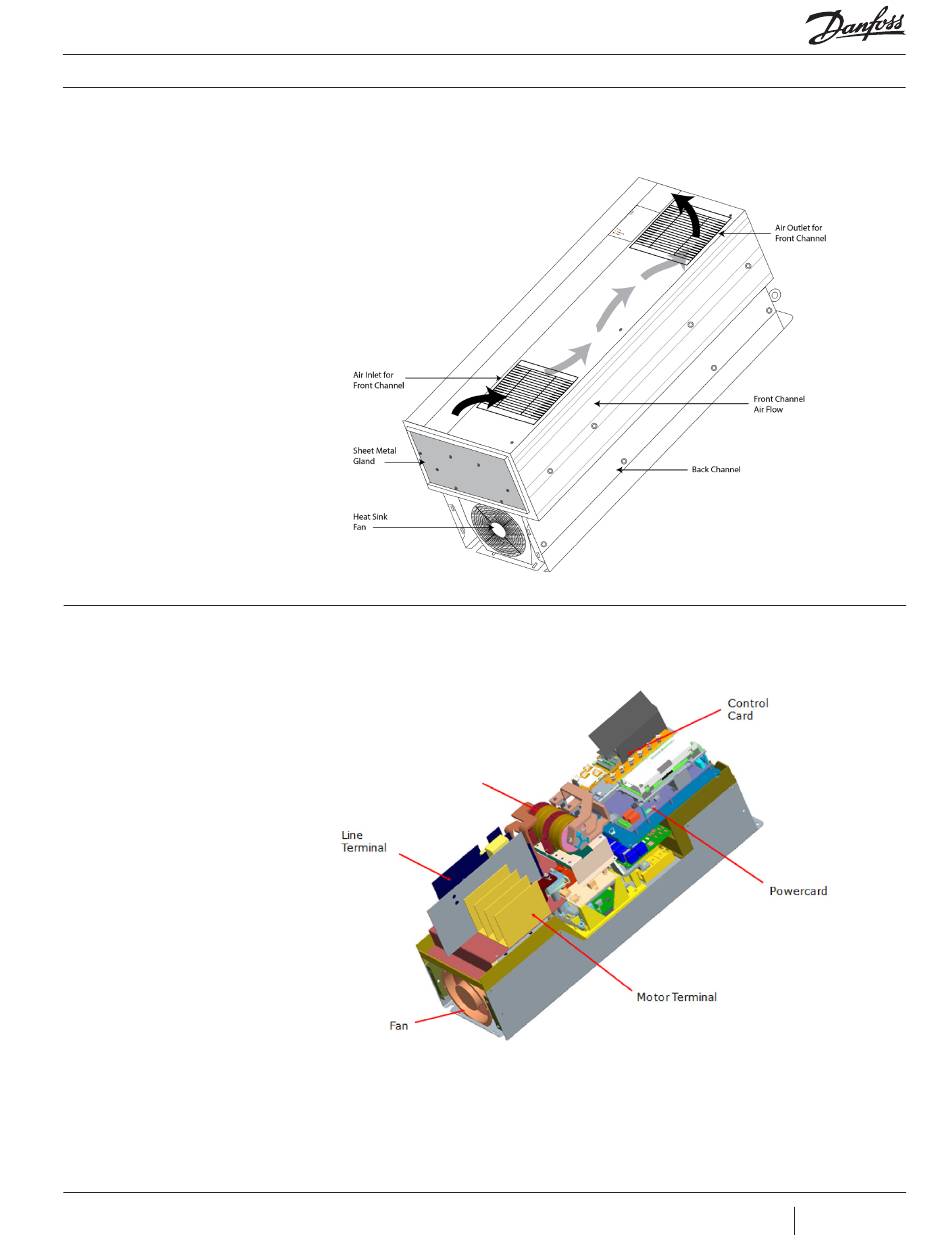

Figure 5
Drive Module - Exterior
General Components
Drive Module Internal
Components
Figure 6
Drive Module Components
Overview of the VTT Compressor
Figure 5 shows the location of the external general components of the drive module.
Figure 6 shows the location of the internal components of the drive module.
RFI FILTER
M-AI-VT-001-EN Rev.C.1
Page 17 of 73
