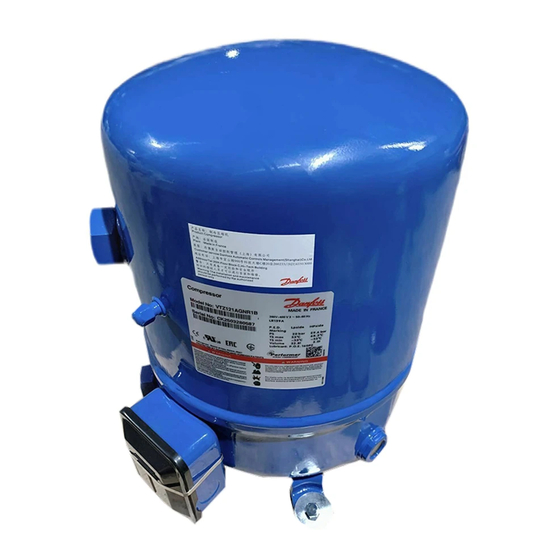

Danfoss reciprocating compressors
MT / MTZ / NTZ / VTZ
English / English
Français / French
Deutsch / German
Español / Spanish
Italiano / Italian
Português (Brasil) / Brazilian Portuegese
Polski / Polish
© Danfoss | DCS (CC) | 2021.02
p. 2
p. 4
p. 6
p. 8
p. 10
p. 12
p. 14
