Figure 24

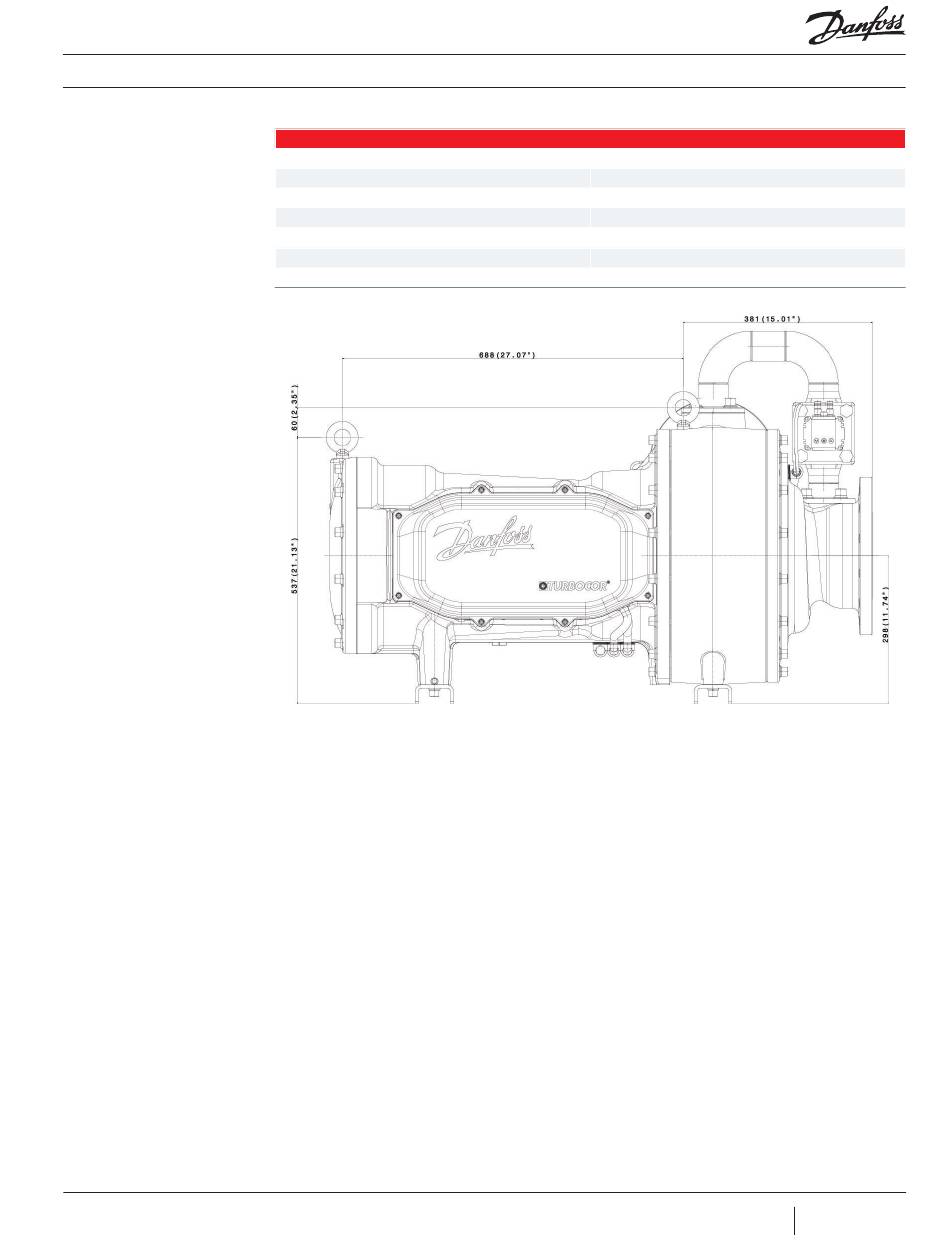

Left Side View
Physical Data of the VTT Compressor
Tapped Holes
Pitch Circle Diameter (PCD)
Number of Holes
Inlet (Suction) Flange
Inlet Diameter
Outside (Over All) Dimension
Flange Outside Diameter
Suction Flange Details
M20 x 2.5
269.74 (10.61")
12
ANSI B16.5 Class #300
152 mm (5.98")
510 mm (20.7")
318 mm (12.51")
M-AI-VT-001-EN Rev.C.1
Page 43 of 73
