DC-DC Converter

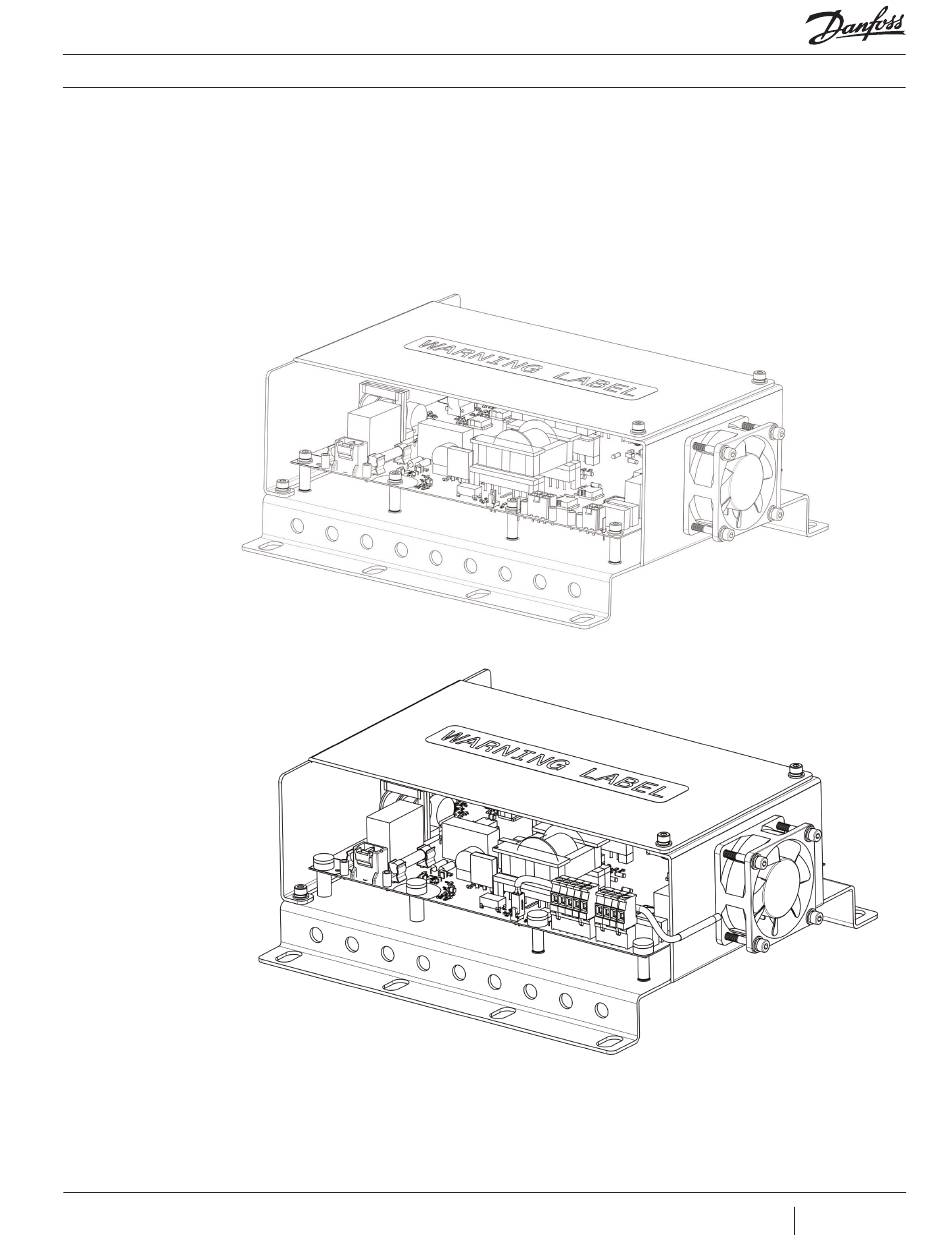

Figure 3
DC-DC Board
Overview of the VTT Compressor
The DC-DC converter provides the compressor
with +24V DC (with respect to 0V) and HV+
(+250V DC with respect to HV-) for the bearing
pulse width modulation (PWM) amplifier. The
DC-DC Converter receives a high voltage DC
supply from the drive module.
Rev B
Rev C
M-AI-VT-001-EN Rev.C.1
Page 15 of 73
