ASSEMBLY AND
INSTALLATION INSTRUCTIONS
DRAWER KITS
2
A
NOTE: DO NOT overtighten Screws (H) or surface of Drawer Fronts (B) may become dimpled.

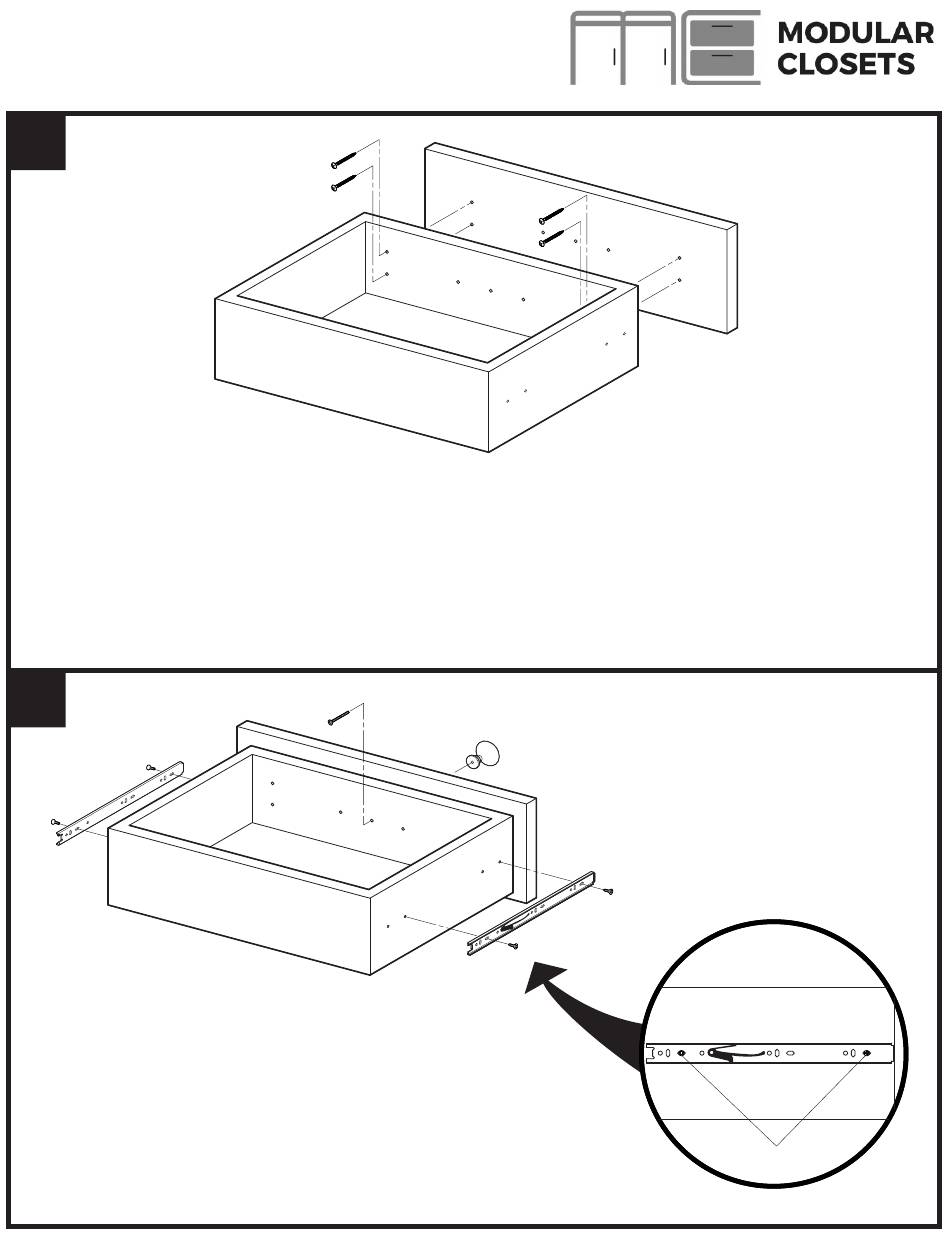

2.1 Position Drawer Front (B) on each Drawer (A) and align mounting holes in Drawer Front with mating holes in
Drawer.
Install one 1.0" Screw (H) and tighten just until Screw catches. Install second Screw (H) in diagonally opposite
hole and tighten just until Screw catches.
Make sure remaining mounting holes are properly aligned, then install two remainings Screws (H) and tighten all
Screws.
3
G
G
C
3.1
For each Drawer, position Drawer Slide (C) against Drawer with
front end of Slide flush and square with rear side of Drawer Front,
then secure with two 0.445" Screws (G) at locations shown.
3.2
Repeat for second Drawer Slide (C).
3.3
If desired, install Drawer Knob (E) on each Drawer and secure with one
1.5" Screw (I). Alternatively, you can install a 96mm Drawer Pull
(purchased separately).
H
H
I
C
H
H
E
G
G
B
G
