ASSEMBLY AND
INSTALLATION INSTRUCTIONS
DOUBLE HANGING UNIT
1A
BOX 1
A
A
Left Side Panel
B
Right Side Panel
1B
1.1
Lay parts out on a protective surface to
prevent damage. Tip: Spread out the
cardboard packaging to use as a
protective surface.
1.2
Inventory parts against the Parts List. Make
sure all parts are present before proceeding.

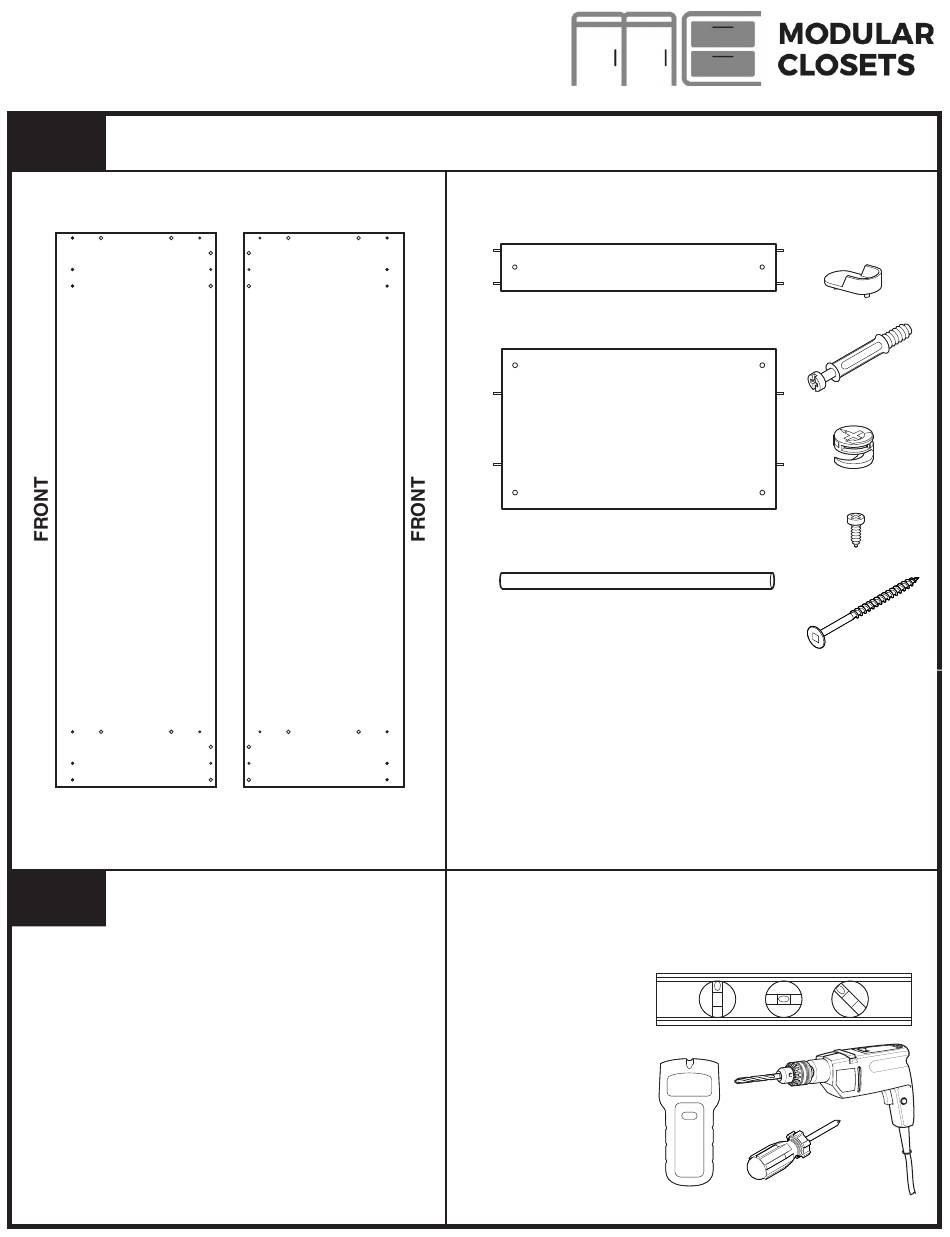

PARTS LIST
BOX 2
B
FINISHED EDGE
C
FINISHED EDGE
D
C
Set Shelf (Qty 2)
D
Rear Cleat (Qty 2)
E
Hanging Rod (Qty 2)
F
Rod Bracket (Qty 4)
G
Cam Post (Qty 12)
H
Camlock (Qty 12)
I
Screw, 5/8" (Qty 4)
J
Screw, Square Drive, 2.5" (Qty 4)
Level
Stud Finder
Drill, 3/32" bit size
Phillips Screwdriver
Drill Bit, Square,
#2
E
TOOLS REQUIRED
(not included unless noted)
F
G
H
I
J
