Accessories

Additional bolt

effeff – additional bolt 270 mm (for door leaf height of 2.16 m or greater)
effeff – additional bolt 350 mm (for door leaf height of 2.25 m or greater)
effeff – additional bolt 550 mm (for door leaf height of 2.45 m or greater)

Space plate sets

effeff – Space plate set 1 mm
effeff – Space plate set 1 mm with latch lock 807

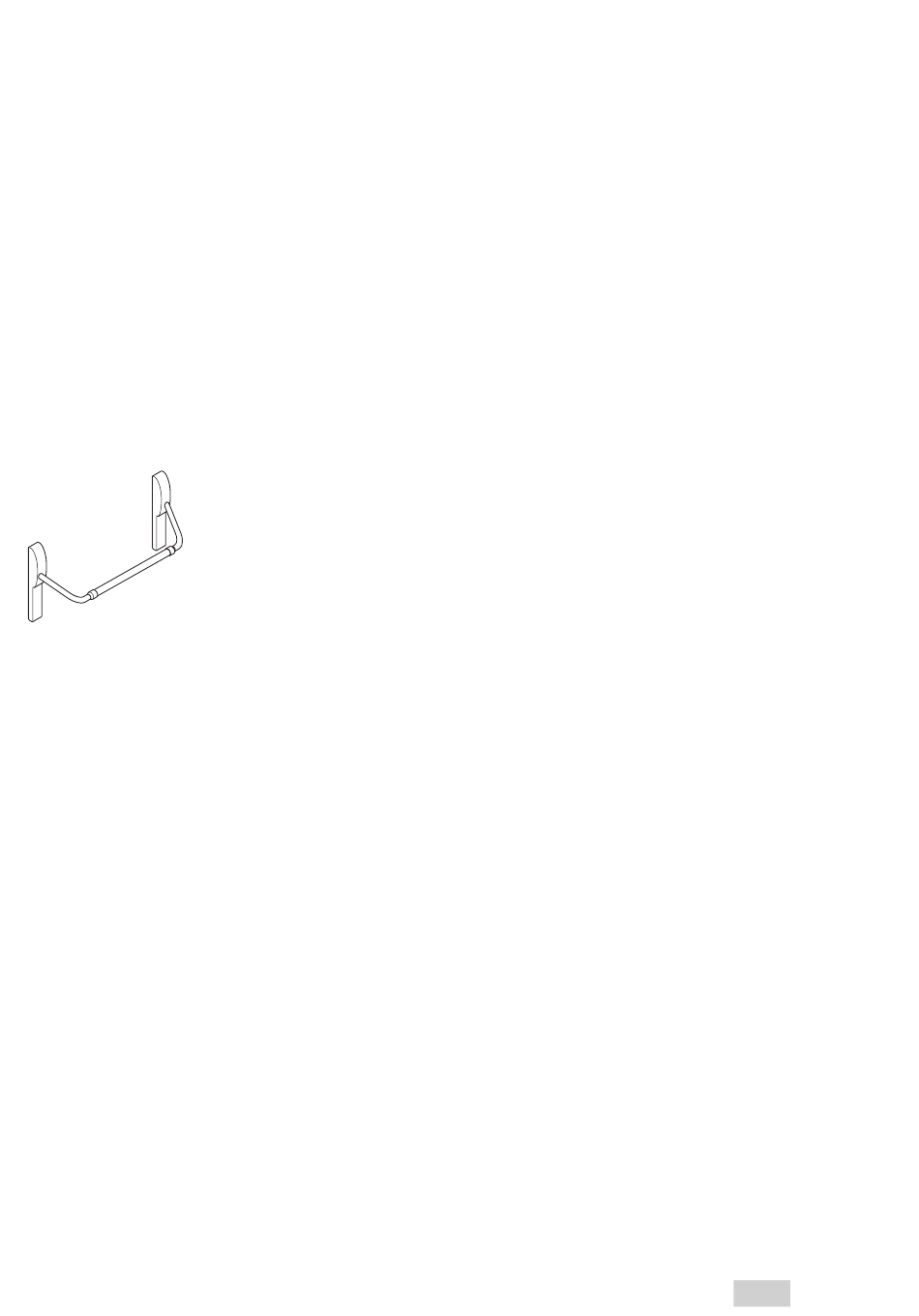

Panic bars

Accessories for model 819E... in accordance with DIN EN 1125
effeff – panic bar 8000, silver, without PZ hole
effeff – panic bar 8000, silver, for Euro profile cylinder, distance 92 mm
effeff – panic bar 8000, silver, for Euro profile cylinder, distance 72 mm
effeff – panic bar 8000, black, without PZ hole
effeff – panic bar 8000, black, for Euro profile cylinder, distance 92 mm
effeff – panic bar 8000, black, for Euro profile cylinder, distance 72 mm
8 1 9 Z B V 0 2 7 – – – – 0 0
8 1 9 Z B V 0 3 5 – – – – 0 0
8 1 9 Z B V 0 5 5 – – – – 0 0
8 1 9 Z B – D 1 – – – – 0 0
8 1 9 Z B – D 1 F – – – 0 0
8 0 0 0 – 0 0 – 2 1 0 0 – –
8 0 0 0 – 1 0 – 2 1 0 0 – –
8 0 0 0 – 2 0 – 2 1 0 0 – –
8 0 0 0 – 0 0 – 1 1 0 0 – –
8 0 0 0 – 1 0 – 1 1 0 0 – –
8 0 0 0 – 2 0 – 1 1 0 0 – –
