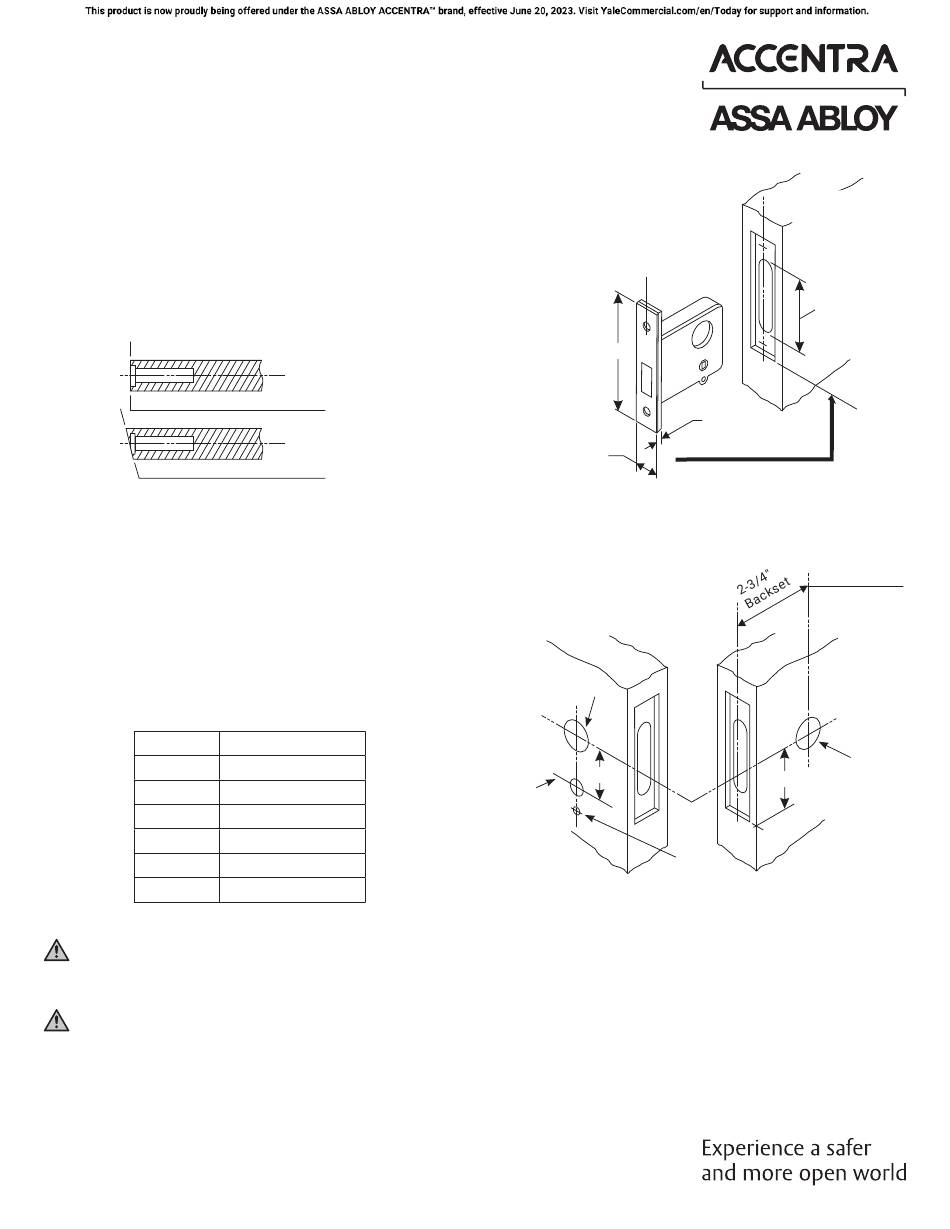

Assa Abloy ACCENTRA 350 Series Installation Instructions

350 Series Mortise Deadlocks
Installation Instructions
1. Mortise door.
Mortise for lock case and front at centerline of door edge. Mortise
door so that latch case is centered in door.
NOTE: Examine lockset to make sure it is the correct bevel for
door. If not, loosen screws (fastening front to case), rotate front to
proper bevel and retighten.
Non Beveled Door Edge
Beveled Door Edge
2. Bore holes.
A. Check box label for function number before cutting holes
in door.
B. Bore required holes for cylinder and thumbturn as indicated
in chart.
MODEL #
351
352
353
354
356
357
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2009, 2012, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction
in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Door
C L
and Lock
Door
C L
and Lock
HOLE #'s
1 and 2
1, 3, and 4
1
3 and 4
1, 2, 3, and 4
1, 3, and 4
Lock
C L
Front
4-5/8"
1-1/8"
Ref.
1-1/4" Dia.
hole into
2
mortise
C L
Thumb
1-3/8"
Turn
Hole
C L
Cylinder
3
1/2" Dia.
hole into
mortise
INSIDE
Face of Door
C L of Door Edge and
Lock Front
IMPORTANT:
Do not exceed
3-1/2" when
using router.
3/16" Ref.
Height As Desired
Measured from
Centerline of
Door Edge
1
1-1/4" Dia.
2-13/16"
hole into
mortise
OUTSIDE
Face of Door
4
1-1/4" Dia. hole inside of door only.
Locate from thumbturn plate.
80-9004-0001-010 04/24
