Summary of Contents for Assa Abloy Access 3

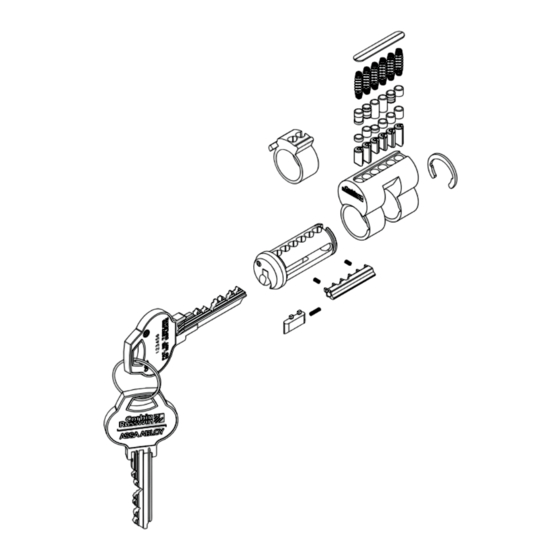

- Page 1 Key Systems Technical Manual...
-
Page 2: Table Of Contents
Table of Contents Technical Manual The Access 3 Advantage ....................... 3 AP Key Cuts .......................... 4 AS & AHS Key Cuts ....................... 5 Pinning Formula ........................6 Construction Master Keying ....................7 Visual and Concealed Key Control ..................8 Access 3 Pin Kits ........................9 Cylinder Parts: AP - 1500 Series Mortise ................ -
Page 3: The Access 3 Advantage
Advantage Technical Manual ™ The Access 3 Key System Access 3 (AP) features a utility patented Access 3 (AHS) combines the utility The patented Access 3 system from keyway. These cylinders easily retrofit into patented keyway and side bar locking... -
Page 4: Ap Key Cuts
AP Key Cuts Technical Manual AP cuts from Bow to Tip MACS-4 Bottom Pin Depth Spec. AP Key Bottom Pins (BP) Master Pins (MP) Build Up Pins (BU) Top Pin (TP) Size # Length Part No. Size # Length Part No. Size # Length Part No. -
Page 5: As & Ahs Key Cuts
AS & AHS Key Cuts Technical Manual AS & AHS cuts from Bow to Tip MACS - 4 Bottom Pin Depth Spec. AS & AHS Key Dimensions shown are to theoretical intersection Bottom Pin (BP) Master Pins (MP) Build Up Pins (BU) Top Pin (TP) Size # Length... -
Page 6: Pinning Formula
Pinning Formula Technical Manual Fixed Core Component Cylinders Large Format Interchangable Core Cylinders Fixed Core and LFIC Control LFIC Chambers Example Example Chambers 3 & 4 1, 2, 5 & 6 Master Key Control Key Top Pin (TP) Top Pin (TP) Change Key 13 MINUS Plug Master Key... -
Page 7: Construction Master Keying
Technical Manual Construction Master Keying (Lost/Wafer Design) for AP, AS & AHS Access 3 cylinders when master keyed are offered with the Construction master keys are to be specified and ordered convenience of construction keying when specified. This is not separately. -
Page 8: Visual And Concealed Key Control
Visual Key Control Technical Manual For Multiplex Masterkey Systems (CR keyway family shown) Nickel silver Front Side Back Side Key Bow type 38 Key Section Code (blind code • Ordering example AP Key Blank: for keyway XXXX-6PIN-38-AP designation) Key Set Symbol Keyway System •... -
Page 9: Access 3 Pin Kits
• 10 Sidebar (8500 CYL.) – part number 763F565 • Tweezer – part number 239F368 • Access 3 Key decoder – part number 756F937 PK-30-MASTER Master Pinning Kit The PK-30-MASTER “Master Kit” includes all pins needed to re-pin AP, AS and AHS cylinders. -
Page 10: Cylinder Parts: Ap - 1500 Series Mortise
1-3/4" Bottom Pins 763F002 Master & Build Up Pins 763F012 Top Pins 763F027 Tumbler Springs 763F617 Spring Cover 756F722 See Access 3 Catalog Cam Retainer 756F838 Screws 756F847 Note: Items 3, 4 & 5 are in vial of 100 pins... -
Page 11: Cylinder Parts: Ap - 3500 Series Rim
Master & Build Up Pins 763F012 Top Pins 763F027 Tumbler Springs 763F617 Spring Cover 756F722 Plug Retainer 333F997 Tailpiece See Access 3 Catalog Mounting Plate 253F758 Mounting Screws See Access 3 Catalog Note: Items 3, 4 & 5 are in vial of 100 pins... -
Page 12: Cylinder Parts: As - 1600 Series Mortise
763F052 Bottom Pins (R) 763F062 Master & Build Up Pins 763F012 Top Pins 763F03M Tumbler Springs 763F617 Spring Cover 756F722 See Access 3 Catalog Cam Retainer 756F838 Screws 756F847 Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807 Side Bar Springs 756F817 Note: Items 3, 4 &... -
Page 13: Cylinder Parts: As - 3600 Series Rim
Master & Build Up Pins 763F012 Top Pins 763F03M Tumbler Springs 763F617 Spring Cover 756F722 Plug Retainer 333F997 Tailpiece See Access 3 Catalog Mounting Plate 253F758 Mounting Screws See Access 3 Catalog Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807... -
Page 14: Cylinder Parts: Ahs - 1700 Series Mortise
763F052 Bottom Pins (R) 763F062 Master & Build Up Pins 763F012 Top Pins 763F01M Tumbler Springs 763F617 Spring Cover 756F722 See Access 3 Catalog Cam Retainer 756F838 Screws 756F847 Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807 Side Bar Springs... -
Page 15: Cylinder Parts: Ahs - 3700 Series Rim
Master & Build Up Pins 757F012 Top Pins 757F03M Tumbler Springs 763F617 Spring Cover 756F722 Plug Retainer 333F997 Tailpiece See Access 3 Catalog Mounting Plate 253F758 Mounting Screws See Access 3 Catalog Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807... -
Page 16: Cylinder Parts: Ap - 8500 Series Lfic Cores
Cylinder Parts: AP LFIC Core Technical Manual Item Description Part Number Comments Plug 757K50MSECFIN Plug finishes: 606, 619 Core 763F58MFIN Control Sleeve 763F572 Bottom Pins 763F002 Master & Build Up Pins 763F012 Top Pins 763F012 Tumbler Springs 763F617 Spring Cover 756F722 Retainer Ring 333F998... -
Page 17: Cylinder Parts: As - 8600 Series Lfic Cores
Cylinder Parts: AS LFIC Core Technical Manual Item Description Part Number Comments Plug 757K51MSECFIN Plug finishes: 606, 619 Core 763F59MFIN See catalog of finishes Control Sleeve 763F572 Bottom Pins (L) 763F042 Bottom Pins (C) 763F052 Bottom Pins (R) 763F062 Master & Build Up Pins 763F012 763F012* Top Pins... -
Page 18: Cylinder Parts: Ahs - 8700 Series Lfic Cores
Cylinder Parts: AHS LFIC Cores Technical Manual Item Description Part Number Comments Plug SA 757K52MSECFIN Plug finishes: 606, 619 Core 763F60MFIN See catalog for finishes Control Sleeve 763F572 Bottom Pins (L) 763F042 Bottom Pins (C) 763F052 Bottom Pins (R) 763F062 Master &... -
Page 19: Cylinder Parts: Ap - 2500 Series Component (Key-In-Knob/Lever)
Master & Build Up Pins 763F012 Top Pins 763F027 Tumbler Springs 763F617 Spring Cover 756F858 Cap Pin Spring 585F327 Cap Pin 585F312 Tailpiece See Access 3 Catalog Cylinder Cap 680F645 Note: Items 3, 4 & 5 are in vial of 100 pins... -
Page 20: Cylinder Parts: As - 2600 Series Component (Key-In-Knob/Lever)
Master & Build Up Pins 763F012 Top Pins 763F03M Tumbler Springs 763F617 Spring Cover 756F858 Cap Pin Spring 585F327 Cap Pin 585F312 See Access 3 Catalog Tailpiece Cylinder Cap 680F645 Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807 Side Bar Springs 756F817... -
Page 21: Cylinder Parts: Ahs - 2700 Series Component (Key-In-Knob/Lever)
Master & Build Up Pins 763F012 Top Pins 763F03M Tumbler Springs 763F617 Spring Cover 756F858 Cap Pin Spring 585F327 Cap Pin 585F312 See Access 3 Catalog Tailpiece Cylinder Cap 680F645 Slider 756F732-756F782 Slider Springs 756F797 Side Bar 756F807 Side Bar Springs 756F817... - Page 22 Notes Technical Manual...
- Page 23 Notes Technical Manual...
- Page 24 These materials are protected under US copyright laws. All contents current at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group company reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials.
