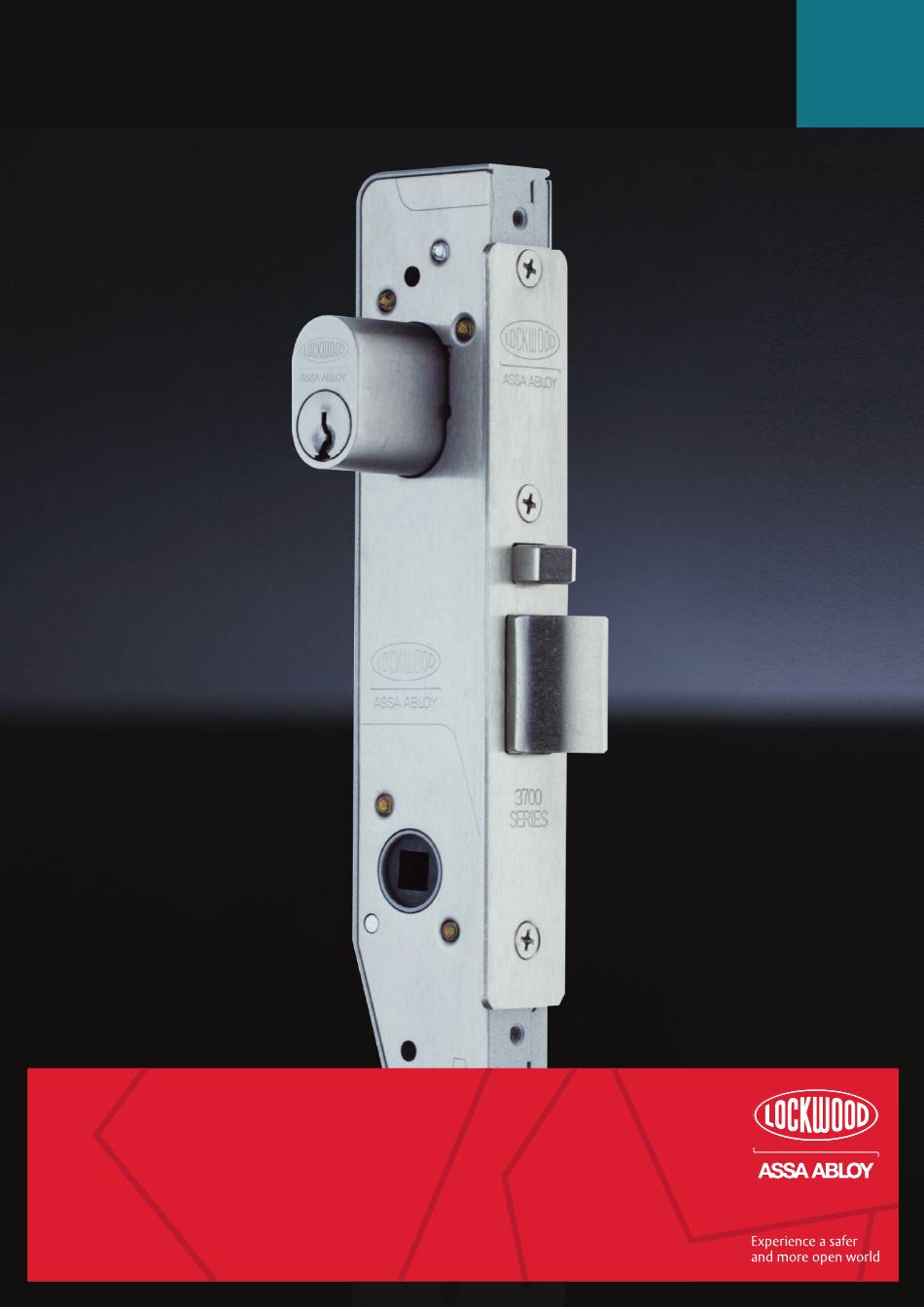

- Page 1 3782EL trouble shooting guide no worries Lockwood: ® www.assaabloy.co.nz www.assaabloy.co.nz...
-
Page 2: Table Of Contents
Content Introduction Lock is not-responding: What if I don’t have enough wires for 3-Wire Control? 2-Wire Control 3-Wire and 2-Wire Control Diagrams Lock is not locking according to the way I have set the switches Lock is remaining in powered state even when I send a lock / unlock signal I am trying to set the lock up as double access (1 side PtL, 1 side PtO) but it is not working as expected Lock single beeps every 2 seconds Lock beeps once or twice every time the lock locks... -
Page 3: Introduction
Introduction Since the successful release of the Lockwood Selector Series Electric Mortice Locks, a small number of installation scenarios warrant some additional information for our customers. The Lockwood Selector Series Electric Mortice Locks present a number of feature improvements over the previous 3582 series,... -
Page 4: Lock Is Not-Responding
Lock is not-responding Confirm lock has power by checking heartbeat LED. - Test the locking signal – there should be Remove top screw from cover (front) plate and 9-28VDC present between the green and black looking for a blue LED flashing every 2 seconds wires –... -
Page 5: 2-Wire Control
2-Wire Control We strongly recommend that 2-Wire mode Therefore, when configuring the Door Unlock is not used, specifically in PTO mode. Please functions in the Access Control system see FAQ “What if I don’t have enough wires programming, do NOT enable a “Door Relock for 3-Wire Control”... -
Page 6: Lock Is Not Locking According To The Way I Have Set The Switches
Lock is not locking according to the way I have set the switches: The setting switches will not take effect until the lock has fully powered down. Disconnect all power from the lock and wait at least 2 minutes and then retry. •... -
Page 7: Lock Single Beeps Every 2 Seconds
Lock single beeps every 2 seconds: Single beeps every 2 seconds indicates that the lock is not able to move into the locked position – something is jamming the motor. • Ensure users of the lock are not holding the handle down for an extended period of time when either entering or existing through the door. -
Page 8: Lock Double Beeps Every 6 Seconds
Lock double beeps every 6 seconds: Double beeping every 6 seconds indicates that the lock cannot communicate with the motor. • Lock should be returned for investigation. Deadlatch monitor is not working: Confirm correct wires are being used by testing with a multi-meter •... -
Page 9: Lock Status Monitor Is Not Working
Lock status monitor is not working: Confirm correct wires are being used by testing with a multi-meter • Signal should be open when the lock is unlocked and closed when lock is locked Lock status monitor state will only change when the lock is powered (the lock will only change state when powered as well) LED is not active: Lock is supplied with LEDs de-activated. -
Page 10: There Is No Room For The Cable When Installing In A Timber Door
There is no room for the cable when installing in a timber door: The cable boot is only intended for aluminum frame installs and can be removed for timber door installations Ensure door preparation is correct as the 3782EL requires a lengthened mortice compared to a mechanical timber fix door preparation. -
Page 11: I Have A Retro-Fit With Leds (Power Is Being Sent On Old Green Wire To Continuously Power Leds), Will I Have To Re-Wire The Installation
I have a retro-fit with LEDs (power is being sent on old green wire to continuously power LEDs), will I have to re-wire the installation: The lock is retro-fittable to the old lock and a 9 – 12 pin adaptor (SP3782EL-251) is available. - Page 12 ASSA ABLOY New Zealand Ltd. 6 Armstrong Road, Albany Within New Zealand: Outside New Zealand: PO Box 100407, North Shore Auckland 0632 Tel 09 448 9188 Tel +64 9 448 9188 Auckland 0745 New Zealand Fax 0800 478 297 Fax +64 9 415 7889 www.assaabloy.co.nz...
