Addi Tallboy
Assembly Instructions
15
Drawers x2
15
P
16
13
14

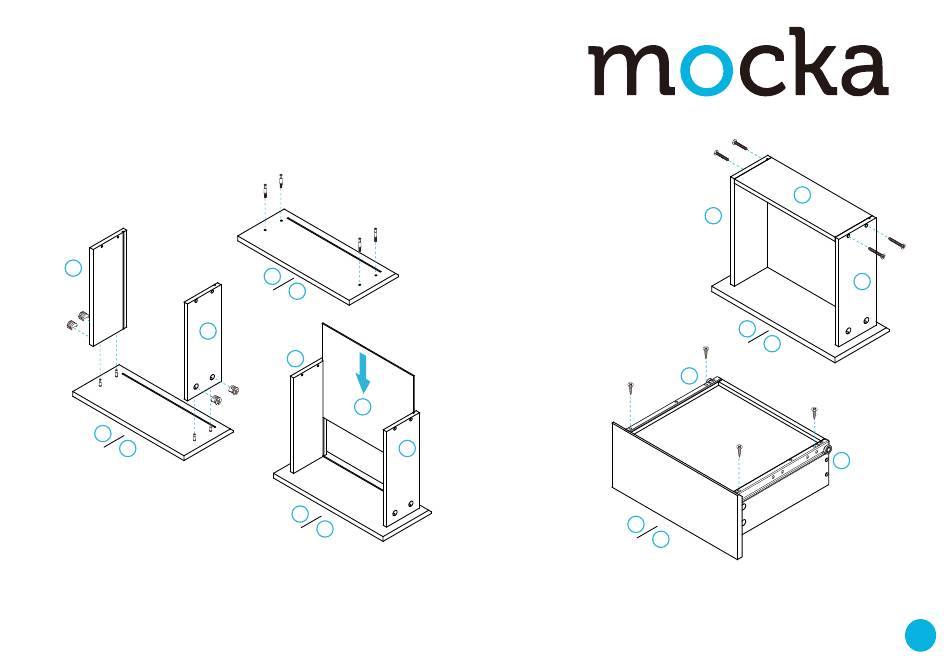

Insert 4x small bolts (O) into panels [13] and [14]. Secure panels
[15] and [16] to panels [13] and [14] with secure 4x small locking nuts (P).
Tighten with a screwdriver. Slide panel [17] down along the grooves between
panels [15] and [16] to form the base of the drawer.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
O
O
O
O
13
14
15
P
17
16
13
14
16
Drawers x2
E
I
13
14
Attach panel [18] to panels [15] and [16] using 4x screws (R).
Now attach 1x slide rail (I) to panel [16] and 1x slide rail (H)
to panel [15] as shown. Secure with 4x small screws (E) and
tighten with a screwdriver.
R
18
15
16
13
E
14
16
E
E
H
15
R
